| Categories | Wireline Pressure Control Equipment |
|---|---|
| Brand Name: | Ruixin |
| Model Number: | 2inch ID 2.5inch ID 3inch ID 4.06inch ID 5-1/8inch ID |
| Certification: | API |
| Place of Origin: | China Baoji |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 1 set 3 weeks |
| Delivery Time: | 3-4 weeks |
| Packaging Details: | Wooden Box |
| Name: | Hydraulic Tool Trap Wireline Pressure Control Equipment |
| I.D.: | 2.5 inch~6.38 inch |
| Material: | Alloy Steel |
| Work Pressure: | 3k 5k 10k 15k |
| Control Tyoe: | Manual |
| Service: | Standard&H2S |
| Use: | Wireline Operation And Slickline Operation |
| Company Info. |
| Ruixin Energy Equipment |
| Verified Supplier |
| View Contact Details |
| Product List |

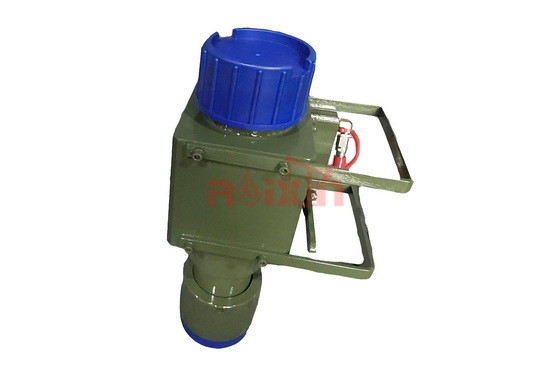

5K Hydraulic Tool Trap Wireline Pressure Control Equipment
The Hydraulic Tool Trap is a safety device designed to stop wireline tools from falling into the wellbore should the wireline accidentally break at the Rope Socket while in lubricator. This tool features hydraulic operated flappers to provide a passage for tools to enter the well bore when in open position. The hydraulic mechanism can be easily operated by using hand pump or remotely and therefore reduce the exposure to hazardous environment.
The slot on the flapper allow wire to be run through the closed flappers after the tools has passed. The manual handle provide a clear visual indication of the position of the flappers Closed or Open Wireline Manual Tool Trap are available to suit various working pressures and manufactured to meet client operational needs. There are two main operational types that share common features:
• External visual indication of the tools passing the flapper
• Either hydraulic open and spring return or hydraulic open and
hydraulic close
The flapper that sits across the bore preventing tools from passing have a large ‘V’ slot to allow wire movement with reduced contact when the flapper is closed.
Baoji Ruixin Energy Equipment Co.,Ltd has only focused on the research and development and manufacturing of slickline equipment and tools, built a high-tech enterprise with excellence and pursued the professionalism and accuracy of products. Always follow the site, serve the site, and solve the site problems with rich experience and technology; Ensure the practicability of the product. To provide excellent equipment and sincere service for slickline service companies in China and other countries around the world.
|
