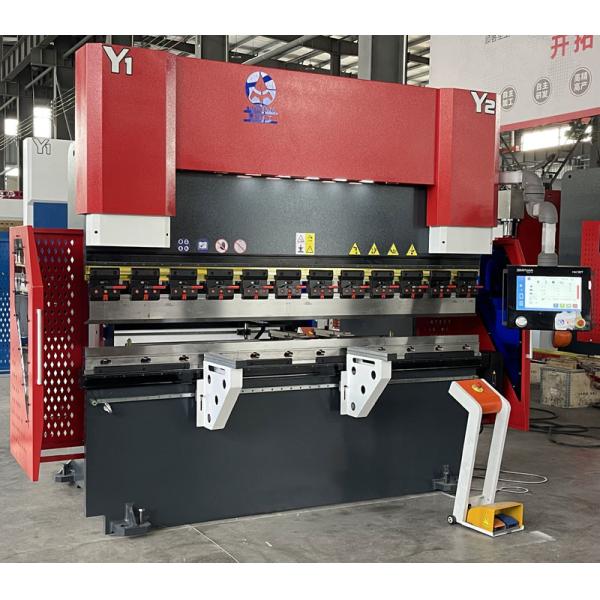

Name: 2500mm Wdith Hydraulic CNC Press Brake Sheet Plate Carbon Steel Bending Machine
Brand: AOXUANZG
Price: 14000 USD

Home > Cast & Forged >

2500mm Wdith Hydraulic CNC Press Brake Sheet Plate Carbon Steel Bending Machine

Categories	Hydraulic CNC Press Brake
Brand Name:	AOXUANZG
Model Number:	WC67K-63T2500MM
Place of Origin:	China
Certification:	CE,ISO
MOQ:	1
Price:	$14000
Packaging Details:	Plastic film package first, then placed in container with steel wire fixed.
Delivery Time:	30 DAYS
Payment Terms:	50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by（T/T）.
Supply Ability:	500 sets/year
Type:	CNC Press Brake
Maximum open height:	380mm
Controller:	HK58T
Color:	Customized
Motor Power:	5.5kw
Max. Bending Thickness:	3mm Carbon Steel, 1.5mm Stainless Steel
Overall Dimension:	260517252355mm
Max. Bending Length:	2500mm

Contact Now

Add to Cart

Company Info.

Anhui Aoxuan Heavy Industry Machine Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

2500mm Wdith Hydraulic CNC Press Brake Sheet Plate Carbon Steel Bending Machine

2500mm Wdith Hydraulic CNC Press Brake Sheet Plate Carbon Steel Bending Machine With HK58T Controller

Product Description:

Hydraulic CNC Press Brake is a press bending machine with high accuracy and efficiency. It is a kind of hydraulic press brake with a controller of HK58T, featuring a max. Bending Thickness of 3mm Carbon Steel and 1.5mm Stainless Steel, and a back gauge accuracy of ±0.01mm. Moreover, it has a throat depth of 300mm. This press brake is an ideal choice for various press-bending jobs, offering reliable performance and stability.

This press brake is designed with high precision and fast speed. It is suitable for accurately bending any complex parts with high efficiency. The hydraulic system works reliably and stably, providing a reliable bending force. This CNC press brake is equipped with a controller of HK58T, which is user-friendly and easy to operate. It also has a throat depth of 300mm, which offers a wide bending range.

Hydraulic CNC Press Brake is a high-precision and reliable press bending machine, offering many advantages for press-bending jobs. Its hydraulic system provides a reliable bending force, and the controller of HK58T is user-friendly and easy to operate. This press brake also has a max. Bending thickness of 3mm Carbon Steel and 1.5mm Stainless Steel, and a back gauge accuracy of ±0.01mm. It is a perfect choice for any press-bending jobs.

Features:

Product Name: Hydraulic CNC Press Brake
Back Gauge Accuracy: ±0.01mm
Distance between housings: 2050mm
Color: Customized
Type: CNC Press Brake
Max. Bending Thickness: 3mm Carbon Steel, 1.5mm Stainless Steel

Technical Parameters:

Name	Value
Distance between housings	2050mm
Max. Bending Angle	30-180
Max. Bending Thickness	3mm Carbon Steel, 1.5mm Stainless Steel
Type	CNC Press Brake
Max. Bending Force	630kn
Back Gauge Accuracy	±0.01mm
Overall Dimension	260517252355mm
Color	Customized
Motor Power	5.5kw
Max. Bending Length	2500mm

Applications:

Hydraulic CNC Press Brake, manufactured by AOXUANZG is a high-precision machine, with a model number of WC67K-63T2500MM. It is certified by CE and ISO and is available for purchase with a minimum order quantity of 1. This press brake has a price of $14000 and is packaged in plastic film and then placed in a container with steel wire fixed for additional security. The delivery time is 30 days and payment is accepted via T/T. AOXUANZG is capable of supplying up to 500 press brakes per year. The maximum bending angle of this press brake is 30-180, with a throat depth of 300mm and a maximum open height of 380mm. Furthermore, the maximum bending length of this press brake is 2500mm and it is available in a range of customized colors. This Hydraulic CNC Press Brake is ideal for the production of high-precision components, such as automotive parts, aircraft components, and home appliances. It is perfect for all press brake machining applications, making it a must-have for any press brake machine.

Packing and Shipping:

Packaging and Shipping:

The Hydraulic CNC Press Brake is safely and securely packaged to ensure protection during transportation. It is then shipped in a protective container by a reliable carrier. Delivery time will vary depending on the destination.

Technical parameter:

Model	Pressure	Worktable length	Distance between columns	Depth of throat	Stroke	Max height between worktable and ram	Main motor	Weight	Dimension (LxWxH)
Units	kn	mm	mm	mm	mm	mm	kw	mm	mm
WC67Y/K-40/2500	400	2500	1925	220	80	300	4	3000	2650x1100x1950
WC67Y/K-50/2500	500	2500	2015	220	100	340	4	3750	2650x1250x2100
WC67Y/K-63/2500	630	2500	2015	250	100	340	5.5	4300	2650x1300x2200
WC67Y/K-80/2500	800	2500	2010	250	120	380	5.5	5200	2560x1350x2250
WC67Y/K-80/3200	800	3200	2510	250	120	380	5.5	6000	3260x1350x2280
WC67Y/K-100/2500	1000	2500	2050	320	150	420	7.5	6700	2550x1360x2270
WC67Y/K-100/3200	1000	3200	2550	320	150	420	7.5	7200	3260x1365x2520
WC67Y/K-100/4000	1000	4000	3050	320	150	420	7.5	8500	4060x1365x2720
WC67Y/K-125/3200	1250	3200	2550	320	150	420	7.5	7800	3260x1465x2600
WC67Y/K-125/4000	1250	4000	3050	320	150	420	7.5	9000	4060x1460x2800
WC67Y/K-160/3200	1600	3200	2590	320	200	475	11	10500	3260x1580x2775
WC67Y/K-160/4000	1600	4000	3040	320	200	475	11	12500	4060x1580x2925
WC67Y/K-160/6000	1600	6000	4800	320	200	480	11	19500	6060x1580x3480
WC67Y/K-200/3200	2000	3200	2580	320	200	475	18.5	13200	3260x1650x2800
WC67Y/K-250/4000	2500	4000	3130	400	250	530	18.5	19000	4060x1840x3150
WC67Y/K-250/5000	2500	5000	3930	400	250	530	18.5	24000	5060x1840x3450
WC67Y/K-300/3200	3000	3200	2530	400	250	580	18.5	18000	3300x2100x2980
WC67Y/K-300/4000	3000	4000	3200	400	250	580	18.5	22000	4060x2040x3330
WC67Y/K-400/4000	4000	4000	3180	400	320	630	30	30000	4060x2220x3630
WC67Y/K-400/6000	4000	6000	4700	400	320	630	30	45000	60602x2203x980
WC67Y/K-500/6000	5000	6000	4600	500	320	70	30	55000	6080x2760x4000
WC67Y/K-800/6000	8000	6000	4600	500	400	900	37	72000	6100x3250x4300

FAQ:

Q: What is the Brand Name of the Hydraulic CNC Press Brake?

A: The Brand Name of the Hydraulic CNC Press Brake is AOXUANZG.

Q: What is the Model Number of the Hydraulic CNC Press Brake?

A: The Model Number of the Hydraulic CNC Press Brake is WC67K-63T2500MM.

Q: Where is the Hydraulic CNC Press Brake made?

A: The Hydraulic CNC Press Brake is made in China.

Q: Does the Hydraulic CNC Press Brake have certifications?

A: Yes, the Hydraulic CNC Press Brake has CE and ISO certifications.

Q: What is the minimum order quantity for the Hydraulic CNC Press Brake?

A: The minimum order quantity for the Hydraulic CNC Press Brake is 1.
