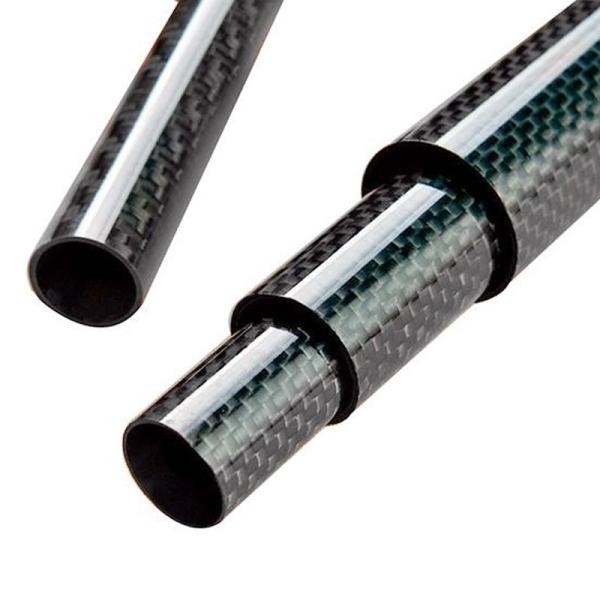

Customized Carbon Fiber Telescopic Pole Glossy 3K Carbon Fiber Tube

High Quality 3K Carbon Fiber Tube Customized Carbon Fiber Telescopic Pole

One of the most established areas of our business is the design and manufacture of telescopic carbon fiber tubes.

For applications that require working at a distance, minimizing component weight is essential to improve maneuverability and ease of operation. At up to a 5th of the weight of steel, and many times stronger, composites are therefore ideally suited to this purpose.

We have specially developed the Telescopic Tubes series in order to be able to offer you a perfectly graded range of tubes that fit into one another. The telescopic tubes are perfect for the realization of plug-ins or also extendable arms or extendable guides or fits. The tubes are all ground to fit each other, ensuring that these tubes can always be pushed into each other with minimal play. Due to their special fiber structure, these pipes are particularly efficient in terms of flexural strength and compressive strength under transverse pressure. The specially developed biaxial fiber structure is used for this purpose in order to offer maximum rigidity.

Some examples of carbon fibre telescopic tubing applications include:

• High-level water-fed window cleaning poles
• Boarding and high-level access poles
• Microphone booms
• Camera tripods
• Military and broadcasting antenna masts (push-up, wind, and pneumatic)
• IED and mine clearance poles
• Motor racing refueling booms

TELESCOPIC CARBON TUBE MANUFACTURING:

• Our telescopic carbon fibre tube manufacturing capabilities mean we can offer customers:
• Tubes within the range of 4mm-500mm
• Lengths up to 5m (collapsed) and 25m (extended)
• Tubes with anti-rotational features
• A variety of materials from lower-cost glass fiber to special high-modulus materials

Specifications:

Order Flow

• Tell us the size of carbon fiber products, including length, diameter, width, and thickness, etc. if you have specific requirements, Pls let me know. It is better that you have a file/drawing(.dwg /.stp/.igs format ) to describe your request.
• We will analyze your request, supply you best solution then give you the best price.
• You received the price and arranged samples for us.
• We will prepare a sample for you, Normally it will take about 3~7 working days. Then we deliver the sample to you for the test.
• You received a sample and test okay. Then arrange formal order to us.

Shanghai Lijin focuses on the Carbon Fiber industry and offers carbon fiber tubes, plates, and aluminum CNC services.

Being experienced in the carbon fiber applications for over 7 years, Shanghai Lijin manages customized production according to various industry standards. Shanghai Lijin started to keep in stock for some standard

sized and frequently ordered tubes and plates. This enables Shanghai Lijin to make prompt delivery. Not only

can Shanghai Lijin complete mass production orders in short period, we can even ship normal sample, prototype orders of Carbon Fiber Plate CNC parts in just SEVEN days after order confirmation when the

drawings are available. Shanghai Lijin is dedicated to solve any technical points during the production and new item developing to ensure the quality.

Carbon Fiber tube production is Shanghai Lijin’s core business and occupies 70% of our turnover.
The carbon fiber tubes Shanghai Lijin mainly produce is table-rolled and oven thermoset. The tubes can be Full Carbon or Carbon Fiber and Fiberglass composite, depending on the application, weight limit,mechanical

strength and surface requirement.Shanghai Lijin offers top quality ROUND carbon fiber tubes. The general OD tolerance we achieve is +/-0.10mm and it can be even +/-0.05mm after our special surface process.

The maximum length of the tube can be 5500mm.

Besides the traditional table-rolled carbon fiber tubes, Shanghai Lijin also offers REAL Filament wound carbon fiber tubes,which are widely used for mechanical strength like auto driving shaft, antennas, even for military

applications. The filament wound carbon tubes are wound at a certain angle like 30 or 45 degree. We invested the new production line from Jun 2013 and this increases Shanghai Lijin’s advantage in the carbon

fiber tube industry. There are just a few real filament wound carbon fiber tube manufacturers in domestic

China and we are one of them.


Since the rapid growth of UAV in the international market, instead of the standard plane like Phantom from DJI, RC fans are getting more interested in the customized multicopters. As carbon fiber is the most preferred

material for UAV, Carbon Fiber CNC parts demand is increasing. Shanghai Lijin sticks to offering OEM service for the international market, fine quality and prompt delivery.To ensure the thickness tolerance +/-0.10mm and minimum warp of the Carbon Fiber plates that are used for the cutting, Shanghai lijin execute high standard to

the plate production. For the normal thicknesses including 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm,
Shanghai Lijin keeps regular stock, to make sure the raw material will be available for cutting immediately when order is firmed.Experienced engineers are in Shanghai Lijin’s office ready to deal with different types of

drawings from customers. No matter the drawing formats are .DWG, .DXF that can be edited by AutoCAD

and used directly for production, 3D drawings like .IGS, or even draft drawings, our staff can do adjustment and change to customer’s idea. Our engineers are also good at English communication, Email and IM is easy

for them. Editing drawings for customers is FREE* of charge. Shanghai Lijin is having several professional CNC machines for carbon fiber cutting and drilling, with the capacity of cutting 20-50pcs standard full sized plate per day. The carbon fiber chassis general cutting tolerance Shanghai Lijin offer is +/-0.02mm. The

special designed cutting solution ensures the smoothness of the cutting edge.

‘Customers’ Persuit for Change, Lijin’s Motivation for Growth’, Shanghai Lijin takes customers’ demand for center, enhances the
customer satisfaction, and grows with customer.
