| Categories | Stainless Steel Bar |
|---|---|
| Brand Name: | DELTA |
| Model Number: | 201 304 316L 321 309S 310S 2205 17-4PH 2507 410 416 420 430 431 440.etc |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 500 kgs |
| Price: | 1100 - 1500 USD/Ton |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20Ton per week |
| Delivery Time: | 5 - 12 days based on the quantity |
| Packaging Details: | standard packing for export |
| Shape: | Angle Bar / channel bar |
| Standard: | ASTM EN GB JIS |
| Grade: | 201 304 316L 321 309S 310S 2205 17-4PH 2507 410 420 430 431 440.etc |
| Application: | Construction,Industry,surgical tools,seawater equipment.,kitchenware |
| Length: | Customers' Requirements,5.8m,6m,2m-6m,or as required |
| Size: | custom as request |
| Packing: | Standard Seaworthy Package,In wooden cases(for FCL/ LCL shipment) |
| Service: | Cutting, surface finishing |
| Company Info. |
| JIANGSU MITTEL STEEL INDUSTRIAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

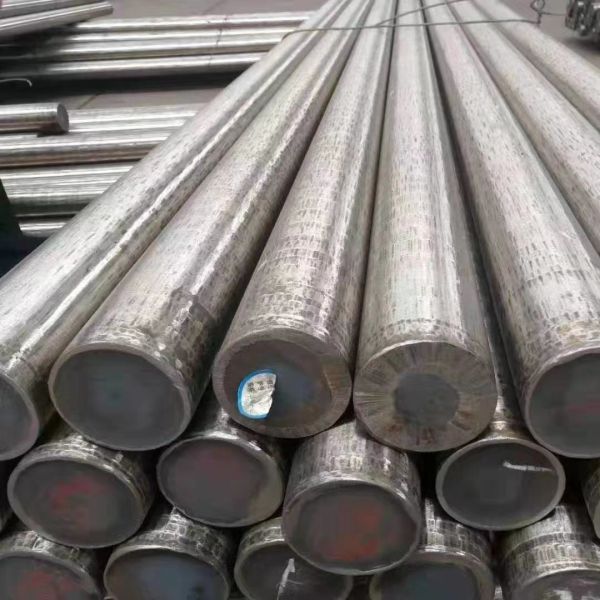

SA276 AISI430F Stainless Steel Round Bar / Bright Stainless Steel Shaft Cunstom Cutting Any Length
Specification
| Product Name | Stainless Steel Bar |
| Grade | 201, 202 , 304 , 304L , 304H , 309, 309S , 310 , 310S ,316, 316L, 316Ti, 317, 317L, 321, 347, 347H , 409L , 420 , 420J1 , 420J2 , |
| 430 , 431,434 , 436L , 439 , 441, 443 , 444 , 904L , 2205 , 2507 , 253MA , 254Mo , 631 , 654MO ,17-4pH ,N08367 (AL 6XN ) ,etc. | |
| Surface Finish | polish/ bright/ black |
| Standard | JIS/SUS/GB/DIN/ASTM/AISI/EN |
| Technique | Cold Rolled; Hot Rolled |
| Diameter | 3-480mm |
| Length | 3000mm, 4000mm,5800mm,6000mm,12000mm,or as required. |
| Application | Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. |
| Lead Time | 7-15 working days after the receipt of 30% deposit |
| Payment Terms | 30% TT for deposit,70% TT /70% LC at sight balance before shipment |
| Price Terms | FOB, EXW, CIF, CFR |
| Packing | Standard Seaworthy Package or according to customer's requirements |
| Seaworthy packing | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM | |
| 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
Stainless steels are called as high-alloy steels. Due to the presence of large amounts of chromium in the range of 4 to 30%, they have high corrosion resistance than other steels. Stainless steels are classified into martensitic, ferritic and austenitic based on their crystalline structure. However, stainless steels present in the form of a combination of martensitic and austenitic steels are known as precipitation-hardened steels.
The following datasheet will provide more details about grade 430F stainless steel, which has moderate strength and corrosion resistance.
the following table shows the chemical composition of grade 430F stainless steel.
| Element | Content (%) |
|---|---|
| Iron, Fe | 81 |
| Chromium, Cr | 16 |
| Manganese, Mn | ≤ 1.25 |
| Silicon, Si | ≤ 1 |
| Molybdenum, Mo | ≤ 0.60 |
| Sulfur, S | ≥ 0.15 |
| Carbon, C | ≤ 0.12 |
| Potassium, K | ≤ 0.060 |
The physical properties of grade 430F stainless steel are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.80 g/Cm³ | 0.282 lb/in³ |
| Melting point | 1482°C | 2700°F |
The mechanical properties of annealed grade 430F stainless steel are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 550 MPa | 79800 psi |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Poisson’s ratio | 0.27 – 0.30 | 0.27 – 0.30 |
| Elongation at break (in 50 mm) | 25% | 25% |
| Hardness, Brinell | 170 | 170 |
| Hardness, Knoop (converted from Brinell Hardness) | 189 | 189 |
| Hardness, Rockwell B (converted from Brinell Hardness) | 86 | 86 |
| Hardness, Vickers (converted from Brinell Hardness) | 178 | 178 |
Other designations that are equivalent to grade 430F stainless steel include the following:
Machining of grade 430F stainless steel can be done with good feeds and speeds.
Grade 430F stainless steel cannot be welded due to its high sulfur content. If necessary, welding can be performed using low heat settings and AWS E/ER430 filler metal.
Grade 430F stainless steel can be hot worked by initially bringing the material to 816°C (1500°F) and then slowly to 1066 to 1149°C (1950 to 2100°F).
Grade 430F stainless steel can withstand only moderate cold forming.
Grade 430F stainless steel can be annealed at temperature ranging from 677 to 760°C (1250 to 1400°F) and then air cooled.
Grade 430F stainless steel is unresponsive to heat treatment.
The following are the major applications of grade 430F stainless steel.
Chemical Element
| Chemical Properties of Frequently-used Stainless Steel Material Grade | |||||||||||
| UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
| S20100 | 201 | 1.4372 | SUS201 | ≤0.15 | 5.5-7.5 | ≤0.06 | ≤0.03 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | - |
| S20200 | 202 | 1.4373 | SUS202 | ≤0.15 | 7.5-10.0 | ≤0.06 | ≤0.03 | ≤1.00 | 17.0-19.0 | 4.0-6.0 | - |
| S30100 | 301 | 1.4319 | SUS301 | ≤0.15 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 6.0-8.0 | - |
| S30400 | 304 | 1.4301 | SUS304 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-10.5 | - |
| S30403 | 304L | 1.4306 | SUS304L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 8.0-12.0 | - |
| S30908 | 309S | 1.4833 | SUS309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 22.0-24.0 | 12.0-15.0 | - |
| S31008 | 310S | 1.4845 | SUS310S | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤1.50 | 24.0-26.0 | 19.0-22.0 | - |
| S31600 | 316 | 1.4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31603 | 316L | 1.4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| S31703 | 317L | 1.4438 | SUS317L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 |
| S32100 | 321 | 1.4541 | SUS321 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-12.0 | - |
| S34700 | 347 | 1.455 | SUS347 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 17.0-19.0 | 9.0-13.0 | - |
| S40500 | 405 | 1.4002 | SUS405 | ≤0.08 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 11.5-14.5 | ≤0.60 | - |
| S40900 | 409 | 1.4512 | SUS409 | ≤0.08 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 10.5-11.75 | ≤0.50 | - |
| S43000 | 430 | 1.4016 | SUS430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤0.75 | 16.0-18.0 | ≤0.60 | - |
| S43400 | 434 | 1.4113 | SUS434 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | - |
| S44400 | 444 | 1.4521 | SUS444L | ≤0.025 | ≤1.00 | ≤0.045 | ≤0.03 | ≤1.00 | 17.5-19.5 | ≤1.00 | - |
| S40300 | 403 | - | SUS403 | ≤0.15 | 5.5-7.5 | ≤0.04 | ≤0.03 | ≤0.50 | 11.5-13.0 | ≤0.60 | - |
| S410000 | 410 | 1.40006 | SUS410 | ≤0.15 | ≤1.00 | ≤0.035 | ≤0.03 | ≤1.00 | 11.5-13.5 | ≤0.60 | ≤1.00 |
| S42000 | 420 | 1.4021 | SUS420J1 | 0.16~0.25 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 12.0-14.0 | ≤0.75 | ≤1.00 |
| S440A | 440A | 1.4028 | SUS440A | 0.60~0.75 | ≤1.00 | ≤0.04 | ≤0.03 | ≤1.00 | 16.0-18.0 | - | ≤0.75 |
| S32750 | SAD2507 | 1.441 | ≤0.03 | ≤1.2 | ≤0.035 | ≤0.02 | ≤0.80 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | |
| S31803 | SAF2205 | 1.4462 | ≤0.03 | ≤2.0 | ≤0.03 | ≤0.02 | ≤1.00 | 21.0-23.0 | 4.0-6.5 | 2.5-3.5 | |
| N08904 | 904L | 1.4539 | ≤0.0.3 | ≤2.0 | ≤0.035 | ≤0.03 | ≤1.00 | 18.0-20.0 | 23.0-25.0 | 3.0-4.0 | |
FAQ
Q: What are your company's main products ?
A: Our main products are stainless steel, carbon steel, galvanized
steel, aluminium steel, ppgi steel products, including sheets,
pipes, coils, strips, bars and channels.
Q: What are the advantages of your company ?
A: We guarantee that the quantity and specification of products are
in full compliance with the standards of customer orders. We
support any kinds of test. In addition, We also have more
professional service and competitive price.
Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the
professional sales team to follow up your case.
Q: Can you provide sample?
A: Yes, for regular sizes sample is free but buyer need to pay
freight cost.
|
