| Categories | Steel Round Bar |
|---|---|
| Brand Name: | DELTA |
| Model Number: | 20CrNiMo13-4 / 1.6660 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1 Ton |
| Price: | 600-889USD/Ton |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20Ton per week |
| Delivery Time: | 5 - 12 days based on the quantity |
| Packaging Details: | standard packing for export |
| Products Name: | Alloy Steel Round Bar |
| Diameter: | 10 - 350mm |
| Length: | 6m |
| Tech: | Hot rolled |
| Service: | Cutting |
| MOQ: | 1 Ton |
| Loading Port: | Shanghai Port |
| Standard: | ASTM EN GB |
| Company Info. |
| JIANGSU MITTEL STEEL INDUSTRIAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
Products Specification
| Products Name | 20CrNiMo13-4 / 1.6660 Alloy Steel Round Bar |
| Diameter | 10 - 320mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade | Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov, 15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo, 40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |
Regular Standard Size of our 20CrNiMo13-4 Round Bar in Stock
| Standard Diameter | 10 12 15 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 120 130 140 150 160 180 200 210 220 230 250 270 300 |
• Gears subjected to high stresses, diverse parts subject to wear
and fatigue in service.
• In the quenched and tempered condition: safety-critical parts.
• High mechanical properties.
• Good fatigue strength.
• After carburising, quenching and tempering, the surface hardness
is around 730 HV.
• Good toughness of the carburised layer.
• For some carburising applications, oil quenching can be replaced
with gas pressure quenching in order to minimise distortion due to
the heat treatment.
| DIN | EN |
|---|---|
| 1.6660 | 20NiCrMo13-4 |
EN 10084 2008 Case hardening steels
| C | Mn | Si | P | S | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|
| 0.17-0.22 | 0.30-0.60 | 0.40 max | 0.025 max | 0.035 max | 0.80-1.20 | 3.00-3.50 | 0.30-0.50 |
| Process | Hardness |
|---|---|
| treated to improve shearability | 277HB max |
| soft annealed | 255HB max |
| treated to hardness range | 207HB-255HB |
| treated to ferrite-pearlite structure and hardness range | 197HB-241HB |
| Process | Temperatures (oC) |
|---|---|
| End quench test | 850 |
| Carburizing | 880-980 |
| Core-hardening | 825-880 |
| Case-hardening | 800-850 |
| Tempering | 150-250 |
EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.

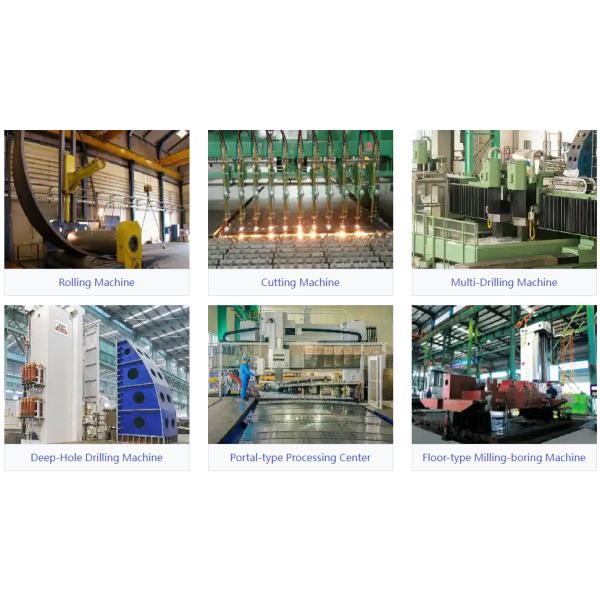

Our Service

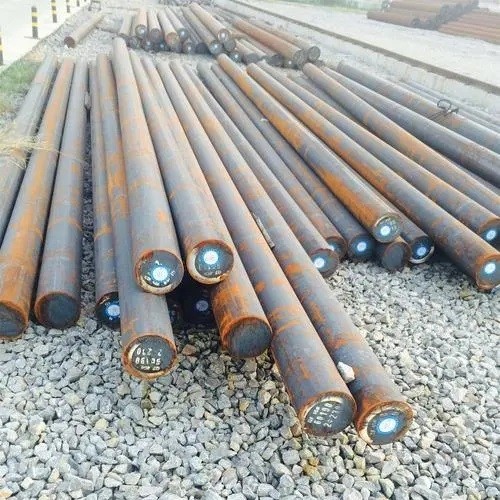

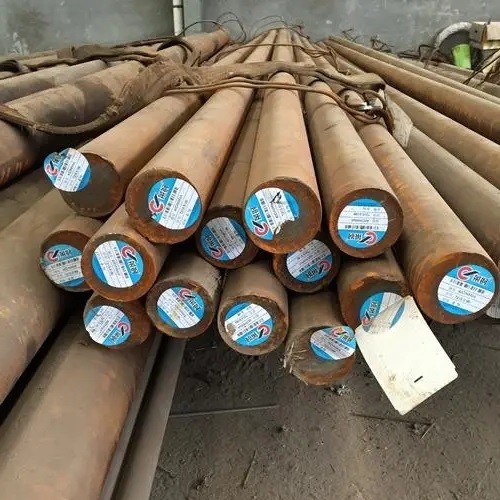

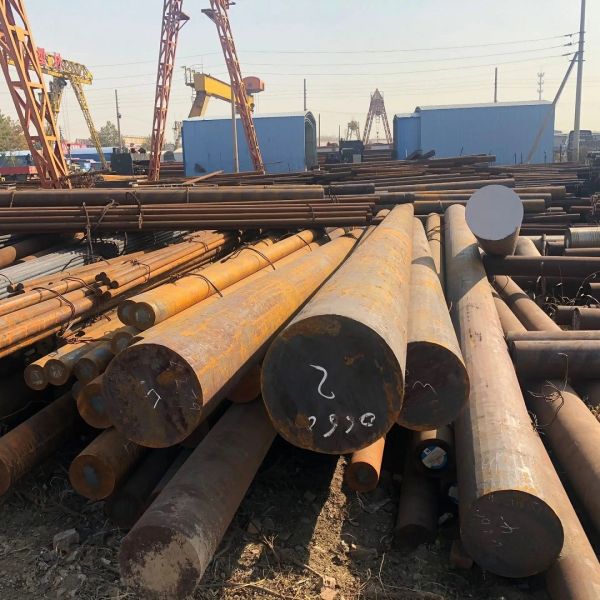

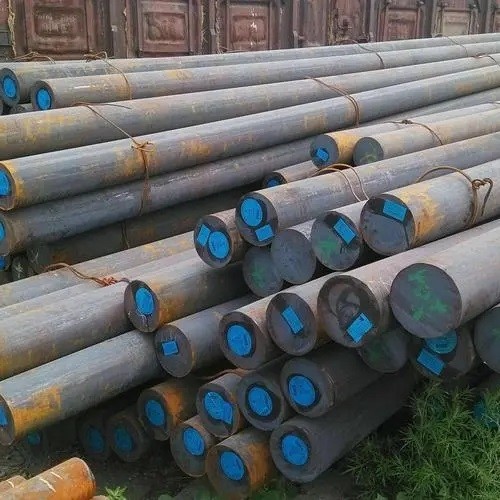

Products Show
|
