AISI441 Stainless Steel Sheet / UNS S44100 SS Sheets for Exhaust Gas Treatment

Categories Stainless Steel Sheet
Brand Name: TISCO
Model Number: 441
Certification: ISO
Place of Origin: China
MOQ: 500 kgs
Price: 1410-1620USD/Ton
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10 Ton per week
Delivery Time: 5 - 12 days based on the quantity
Packaging Details: standard packing for export
Products: Stainless Steel Sheet
Grade: Stainless Steel 441
Standard: ASTM EN JIS GB
Size: 1219*2438mm
Thickness: 0.5 - 3.0mm
Type: cold rolled
Service: cutting, surface treatment
application: auto exhaust pipe
Packing: wooden pallets
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AISI441 Stainless Steel Sheet / UNS S44100 SS Sheets for Exhaust Gas Treatment

AISI441 Stainless Steel Sheet / UNS S44100 SS Sheets for Exhaust Gas Treatment


Products Specification


Products Name441 Stainless Steel Sheet
StandardASTM EN JIS GB BIS
Thickness0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm
Surface2B 2D or process other surface as request
Standard Size1219*2438mm 1000*2000mm
ServiceSlit Cutting, bending , surface treatment
Other Grade200 Series: 201 202
300 Series: 301 304 304L 309S 310S 316L 316Ti 317l 321 329 347
400 Series: 409L 410S 416 420 431 436L 439 441 443 444 446
Special Grade: 254SMO 904L 2205 2507 253MA Nickel Alloy
MOQ500 kgs
PackingWooden Pallets and waterproof paper

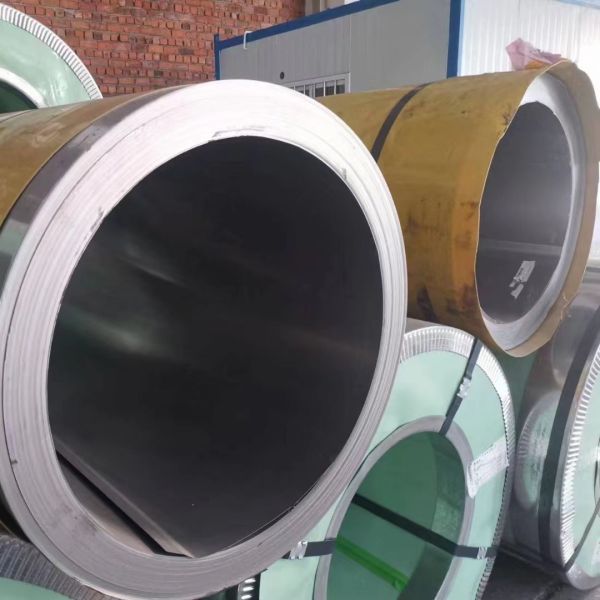

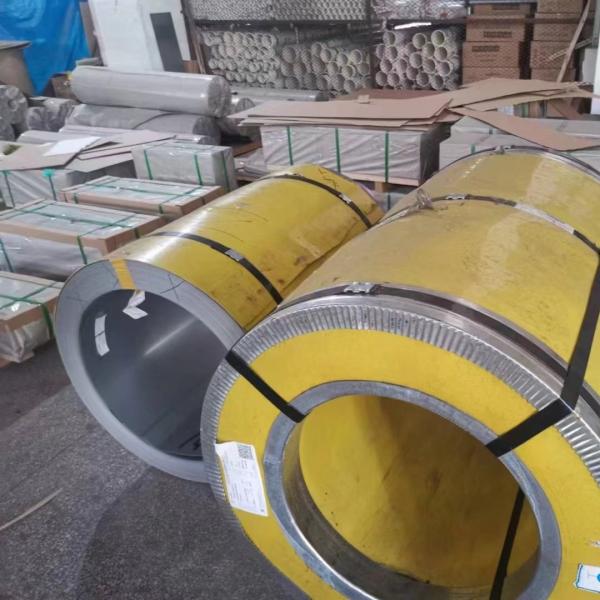

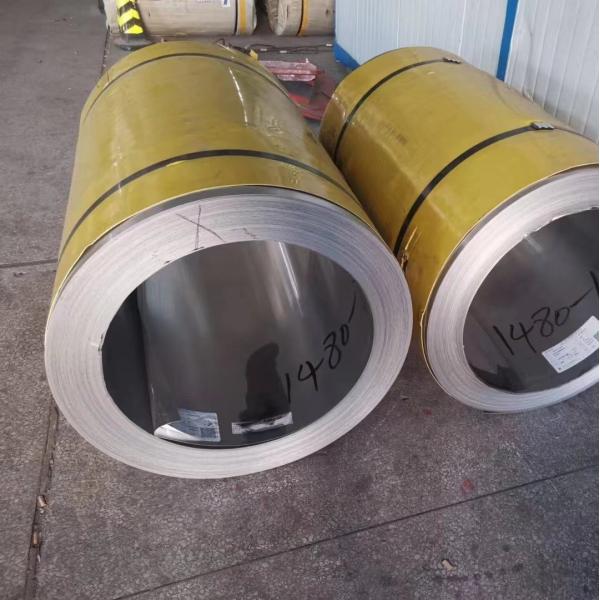

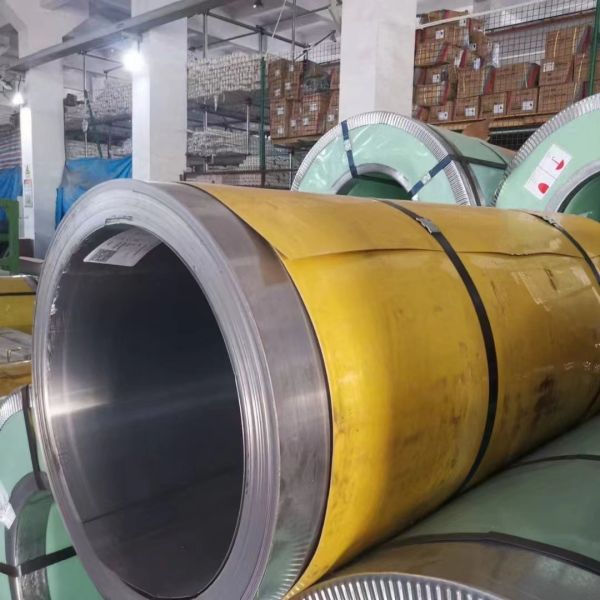

Type 441 (UNS S44100) in Coil Form

Description
Type 441 is an 18% chromium, dual stabilized ferritic stainless steel with corrosion resistance similar to that of 304/304L stainless steel. This grade may be used in the annealed, cold formed or as-welded condition in applications where other stainless steels such as Type 304/304L and Type 430 are used. Type 441 has good weldability due to titanium and niobium stabilization and has excellent resistance to stress corrosion cracking. Type 441 outperforms Type 409 in both oxidation and corrosion resistance and typical applications include automotive manifolds and exhaust system components. The high temperature strength of Type 441 exceeds that of both Types 439 and 409 stainless steels.


Chemical Composition
Chemical Composition (wt%) limits as specified in ASTM A240*

Element441
Carbon0.030
Chromium17.5-19.5
Nickel1.00
Manganese1.00
Silicon1.00
Nitrogen0.030
Phosphorus0.040
Sulfur0.030
Titanium0.1-0.5
Niobium0.3 + (9 x C) min
0.90 max
* Maximum, unless range is indicated

Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240

Property441
Yield Strength, min. (ksi)35
Tensile Strength, min. (ksi)60
Elongation, min. (%)20
Hardness, max. (Rb)90

Physical Properties
Physical properties for Type 441 stainless steel

Property441
Density, lb/in30.278
Modulus of Elasticity, psi29.0 x 106
Coefficient of Thermal Expansion, 68-212˚F, /˚F5.7 x 10-6
Thermal Conductivity, Btu/ft hr ˚F12.1
Specific Heat, Btu/lb ˚F0.11
Electrical Resistivity, Microohm-in23.1
