Wear Resistant NM400 AR400 Hardox 400 Steel Plate / Hot Rolled Steel Plate for Heavy Industrial
Products Specification of Wear Resistant Steel Plate
| Products Name | Wear Resistant Steel Plate |
| Thickness | 4.0 - 60.0mm |
| Width | 100 - 2200mm custom cutting any size as request |
| Length | 6m 8m 10m 11.5m 12m or cutting any length as request |
| Standard | ASTM JIS GB EN |
| MOQ | 500 Kgs |
| Deliver time | 7 - 14 days |
| Loading Port | Shanghai Port |
| Packing | wooden pallets |
| Other Grade | AR400 / AR450 / AR500 / AR600 NM400 NM450 NM500 NM600 |
| Service | Cutting, Heat treatment |

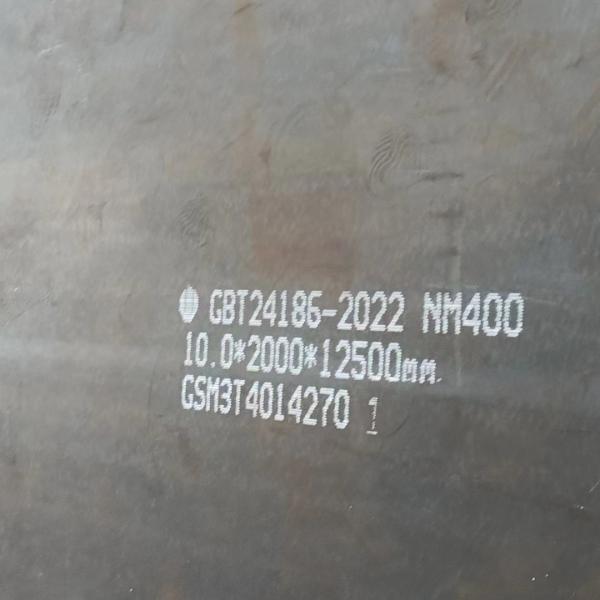

Regular Thickness of our NM400 Steel Plate in stock
| NM400 Steel Plate in Stock | |||
| 4.0mm | 5.0mm | 6.0mm | 8.0mm |
| 10.0mm | 12.0mm | 14.0mm | 16.0mm |
| 20.0mm | 25.0mm | 30.0mm | 32.0mm |
| 35.0mm | 38.0mm | 40.0mm | 42.0mm |
| 45.0mm | 50.0mm | 55.0mm | 60.0mm |
| 65.0mm | 70.0mm | 75.0mm | 80.0mm |
| 85.0mm | 90.0mm | 95.0mm | 100.0mm |
Wear resistant steel plate NM400, NM450, NM500 etc. is from Chinese main factory XINGCHENG SPECIAL STEEL with prime quality, and the plate is widely used in mining machinery, cement industries, quarry, construction machinery, environmental protection machinery, metallurgical machinery, loader, blade plate, side blade plate.
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | Bt |
| NM360 | ≤0.25 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.015 | ≤0.80 | ≤0.50 | ≤0.50 | 0.0005-0.006 |
| NM400 | ≤0.30 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤1.00 | ≤0.50 | ≤0.70 | 0.0005-0.006 |
| NM450 | ≤0.35 | ≤0.70 | ≤1.70 | ≤0.025 | ≤0.010 | ≤1.10 | ≤0.55 | ≤0.80 | 0.0005-0.006 |
| NM500 | ≤0.38 | ≤0.70 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.20 | ≤0.65 | ≤1.00 | 0.0005-0.006 |
| NM550 | ≤0.38 | ≤0.70 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.20 | ≤0.70 | ≤1.00 | 0.0005-0.006 |
| NM600 | ≤0.45 | ≤0.70 | ≤1.90 | ≤0.020 | ≤0.010 | ≤1.50 | ≤0.80 | ≤1.00 | 0.0005-0.006 |
A: We are manufacturer
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
|
