| Categories | Stainless Steel Sheet |
|---|---|
| Brand Name: | TISCO |
| Model Number: | 631 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 500 kgs |
| Price: | 3300 - 3480 USD/Ton |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10 Ton per week |
| Delivery Time: | 5 - 12 days based on the quantity |
| Packaging Details: | standard packing for export |
| Products: | Stainless Steel Sheet |
| Grade: | 631 |
| Standard: | ASTM EN JIS GB |
| Size: | 1219*2438mm |
| Thickness: | 0.5 - 3.0mm |
| Type: | cold rolled |
| Service: | cutting, surface treatment |
| application: | auto exhaust pipe |
| Packing: | wooden pallets |
| Company Info. |
| JIANGSU MITTEL STEEL INDUSTRIAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
631 Bright Annealed Stainless Steel Sheets AISI630 17-7PH Stainless Steel 2B BA Surface
Products Specification
Product Name | 631 Stainless Steel Sheets |
Material Type | Ferrite stainless steel, magnetic; Austenitic stainless steel,
Non-magnetic. |
Grade | 300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 |
200series:201,202,202cu,204 | |
400series:409,409L,410,420,430,431,439,440,441,444 | |
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039
904L,etc | |
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304 | |
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo | |
Technology | Cold Rolled /Hot Rolled |
Length | 2000/2438/2500/3000/3048 mm |
Width | 1000/1219/1250/1500 mm |
Thickness | 0.4-3mm(cold Rolled), 3-200mm(hot Rolled) |
Surface | BA, 2B, NO.1,2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed,perforated etc. |
Leveling: improve flatness, esp. for items with high flatness
request. | |
Skin-Pass: improve flatness, higher brightness | |
Other Choices | Cutting:Laser cutting, help the customer to cut the required size |
Protection | 1. Inter paper available |
2. PVC protecting film available | |
Price Item | FOB,CIF,DDU,FCA,EXW ,.etc |
Quality Assurance | 1.Provide MTC (Mill Test). 2.Accept the inspection by the third party agent |
631 / 17-7PH Stainless Steel Sheets in Stock
| 631 / 17-7PH Stainless Steel Sheets Thickness | |||||||
| 0.3mm | 0.4mm | 0.5mm | 0.6mm | 0.8mm | 1.0mm | 1.2mm | 1.5mm |
| 2.0mm | 2.5mm | 3.0mm | 4.0mm | 5.0mm | 6.0mm | 8.0mm | 10.0mm |
| 12.0mm | 14.0mm | 16.0mm | 20.0mm | 22.0mm | 25.0mm | 28.0mm | 30.0mm |
Chemical Properties of 631 Stainless Steel Sheets
| TYPE | Cr | Ni | Al | C | Mn | P | S | Si |
|---|---|---|---|---|---|---|---|---|
| 17-7 | min: 16.0 max: 18.0 | min: 6.75 max: 7.75 | min: 0.75 max: 1.50 | 0.09 max | 1.00 max | 0.05 max | 0.03 max | 1.00 max |
Mechanical Properties of 17-7PH Stainless Steel
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
|---|---|---|---|---|
| 17-7 | 130 | 40 | 35 | B85 |

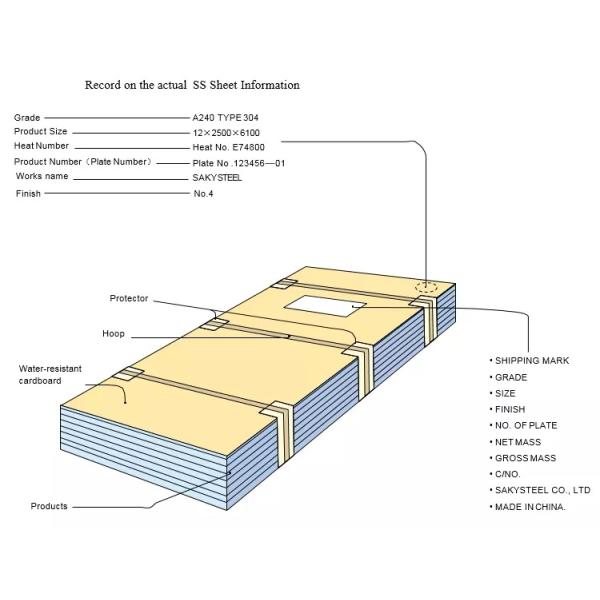

Packing Detail Informations
The 631 stainless steel is widely used in various applications such as aerospace, automotive, chemical processing, and medical devices. It finds applications in producing springs, washers, fasteners, valves, and aircraft fittings. Due to its biocompatibility, the alloy is also used in making surgical instruments and orthopaedic implants.
FAQ
1. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
And you can also find our contact information on contact page.
2.Can I get samples before order ?
Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings. We can build the molds and fixtures.
3. what is your delivery time ?
The time of delivery is usually around 1 month(1*40FT as usual).
We can send out in 2 days, if it has stock.
4.What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.
|
