W01-358-7808/313 Suspension Air Spring Firestone Plate Industrial Rubber Bellows

Firestone Plate Industrial Rubber Bellows W01-358-7808/313 Suspension Air Spring

Product Description

• Suspension air springs are used in vehicles to provide suspension and improve ride comfort by absorbing shock and vibration.
• They are commonly used on heavy-duty trucks, buses and trailers to support the weight of the vehicle and its cargo.
• Air springs are also used in passenger cars, especially luxury cars, to improve ride quality and adjust the height of the vehicle.

Original Equipment Manufacturing Number

AUTOMANN Number: ABSP3B32R-7808
E-Z RIDE Number: 8030170
INT'L/NAVISTAR Number: 554801C1
LOAD GUARD Number: SC2031
PEERLESS Number: 050-00030
RIDEWELL Number: 1003587808C
RIDEWELL Number: S-4830-C
TRIANGLE Number: 4336
TRP Number: AS78080
TRUCKSTELL Number: 63640

Continental ContiTech: FT 530-32 336
Continental ContiTech Order No.: 64506
Continental ContiTech: FT530-32 336
Continental ContiTech Order No.: 64506
Firestone No.: W01-358-7808 / W01 358 7808 / W013587808
Firestone No.: WO1-358-7808 / WO1 358 7808 / WO13587808
Firestone Style: 313
Goodyear No.: 3B14-354 / 3B 14-354 / 3B14354
Goodyear Flex No.: 578-93-3-350 / 578 93 3 350 / 578933350

3B7808 Suspension Air Spring Technical Data

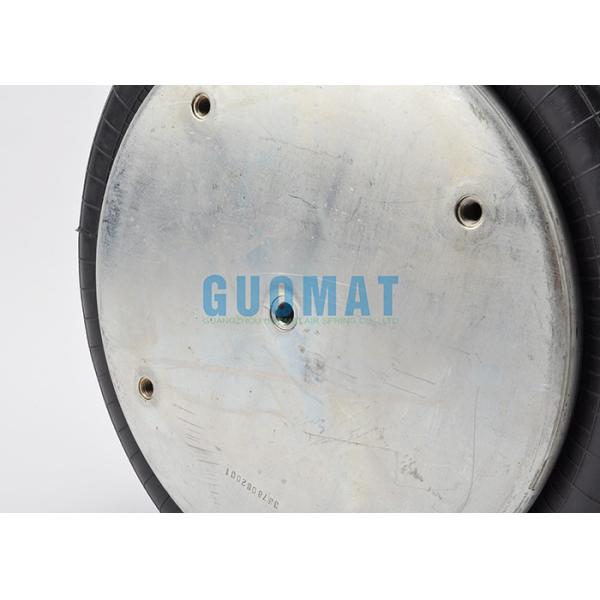

The diameter of the top cover is 289mm, the size of the air holes is 1/4NPT, the number and size of the threaded holes are 4X3/8-16UNC. The center distance between the threaded holes is 158.8mm.

The diameter of the bottom cover is 289mm, and the number and specifications of the threaded holes are 4X3/8-16UNC. The center distance between the threaded holes is 158.8mm.

The natural outer diameter of the air spring is 356mm, the natural height is 282mm, and it is 3 convolutions.

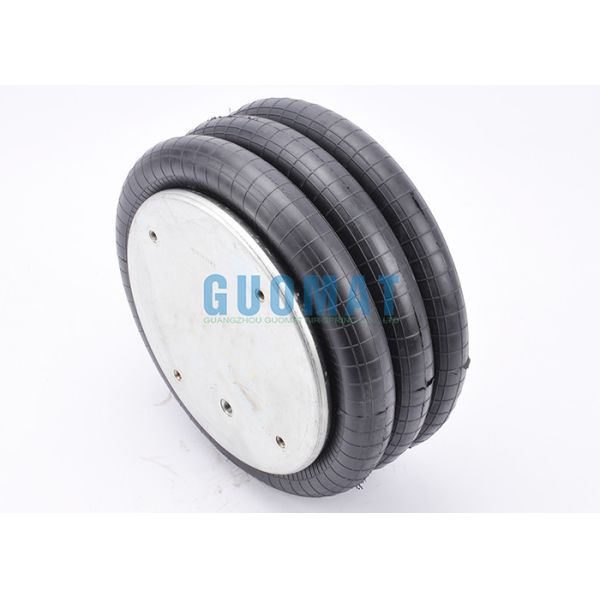

Triple Convoluted Suspension Air Spring

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
