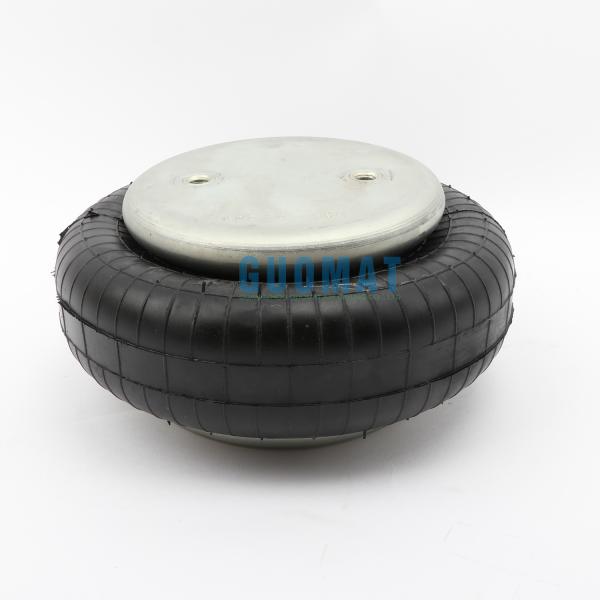

GUOMAT 1B8X4 Air Spring Contitech FS 120-10 Goodyear 1B8-550 Industrial Air Spring

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 1B8X4
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD49.9-59.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Air Spring: Convoluted Type Air Spring
N.W.: 2.4 Kg
Pressure Ability: 0.2-0.8 M PA
Plates: Crimped
Transport Package: Cartons
Trademark: Neutral
Warranty: One Year
Material: Rubber and Iron
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

GUOMAT 1B8X4 Air Spring Contitech FS 120-10 Goodyear 1B8-550 Industrial Air Spring

GUOMAT 1B8X4 Air Spring Contitech FS 120-10 Goodyear 1B8-550 Industrial Air Spring

Product Description

GUOMAT:1B8X4
OEM Original Equipment Manufacturer: Contitech FS 120-10 CI

OEM Original Equipment Manufacturer: Contitech FS 120-10

OEM Original Equipment Manufacturer: Contitech FS120-10

OEM Original Equipment Manufacturer: Firestone W01-358-7564

OEM Original Equipment Manufacturer: Firestone W01 358 7564

OEM Original Equipment Manufacturer: Firestone W013587564

OEM Original Equipment Manufacturer: Goodyear 1B8-550

OEM Original Equipment Manufacturer: Goodyear 1B 8-550


Technical Data

  • Min. pressure - 0 psi
  • Return force to min. height - <45LBF/200N
  • Overall Weight - 2.4KG
  • Min. Design Height - 50MM
  • Inst.Space Required - 140MM
  • Max. Stroke - 90MM
  • Air Inlet - 1/4NPT

Description
Assembly Order No.
Style 116 Two Ply Bellows
Blind nuts, 1/4 NPT:W01-358-7564;W01 358 7564;W013587564
Blind nuts, 3/4 NPT:W01-358-7561;W01 358 7561;W013587561
Countersunk steel bead rings,19/4 bolts, nuts, washers:W01-358-7568;W01 358 7568;W013587568
Blind nuts with installed 1/4 tank valve W01-A72-7518;W01 A72 7518;W01A727518
Rubber bellows only:W01-358-0133;W01 358 0133;W013580133

Style 117 High Bellows
Blind nuts, 1/4 NPT:W01-358-7600;W01 358 7600;W013587600
Blind nuts, 3/4 NPT:W01-358-7602;W01 358 7602;W013587602
Countersunk steel bead rings,Strength 13/4 bolts, nuts, washers:W01-358-7606;W01 358 7606;W013587606


PNEUMATIC APPLICATION - STATIC CHARACTERISTIC VALUES


Force F [lbf]
Pressure p [psi]406080100Vol. V [in.³]
H 4.50 in./114.3MM728113015701970110
H 4.00 in./101.6MM905140019402390100
H 3.50 in./88.9MM105016102240274090
H 3.00 in./76.2MM117017702450302075
H 2.50 in./63.5MM127019002630326057

VIBRATION ISOLATION - DYNAMIC CHARACTERISTICS


Pressure p [psi]406080100120Vol. V [in.³]
Force (load) F [lbf]8011,2401,7002,1302,530110
Spring rate c [lbf/in]7099491,1901,4301,670110
Natural Frequency f0 [Hz]2.92.82.72.62.6110
Design height H: recommended 4.33 inch, minimum 3.54 inch

The History of Air Springs
Air springs were born in the mid-19th century and were used in the early days to dampen vibrations in mechanical equipment. Because air springs have many advantages, they are increasingly used in trains, automobiles, paper machines, lifting platforms, presses, vibrating conveyors, vibrating screens, air hammers, vibration testing machines, casting machinery, etc. that require stroke control or On equipment or instruments for shock absorption and isolation. At this stage, air springs are also used on my country's high-speed trains (such as Harmony EMU, Beijing-Shanghai High-speed Railway, etc.) for shock absorption and shock absorption. The application of washing equipment in developed countries such as Europe and the United States has also happened in the past few years. Continental air spring, Firestone air spring, high-mat air spring, Goodyear air spring


Guomat 1b8X4 Refer to Contitech Fs120-10 Fire Stone Air Spring W01-358-7564 and Goodyear 1b8-550 for MachineGuomat 1b8X4 Refer to Contitech Fs120-10 Fire Stone Air Spring W01-358-7564 and Goodyear 1b8-550 for Machine
