ZIITEK LED Lit Lamps Thermal Gap Pad 5mm Thickness

Categories Thermal Gap Pad
Brand Name: ZIITEK
Model Number: TIF1200-20-10UF thermal pad
Certification: UL and RoHs
Place of Origin: China
MOQ: 1000pcs
Price: negotiation
Supply Ability: 100000pcs/day
Delivery Time: 3-5 work days
Packaging Details: 1000pcs/bag
Thickness: 5.0mmT
Feature: RoHS compliant
Dielectric Constant: 4.6 MHz
Construction & Compostion: Ceramic filled silicone elastomer
keyword: thermal gap pad
name: Volume Resistivity 1.0X10^12 Ohm-cm Good Thermal Conductive Pads for LED-lit Lamps
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

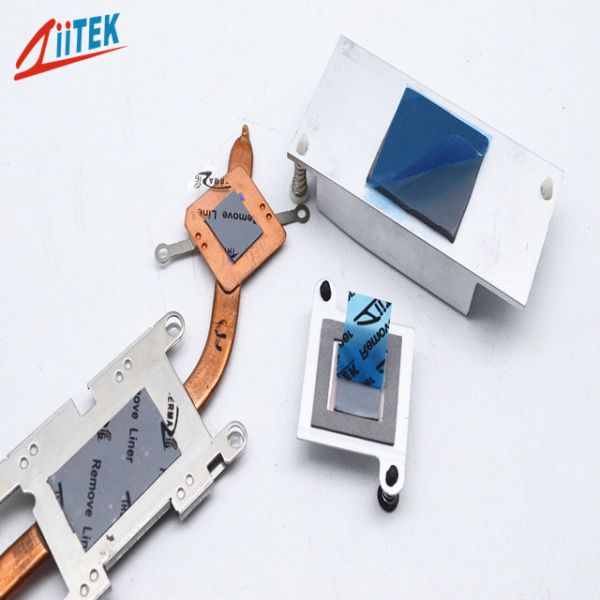

ZIITEK LED Lit Lamps Thermal Gap Pad 5mm Thickness


Volume Resistivity 1.0X10^12 Ohm-cm Good Thermal Conductive Pads for LED-lit Lamps


The TIF1200-20-10UF is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.


TIF100-20-10UF-Datasheet-REV02.pdf


Features

> Good thermal conductive: 2.0 W/mK

>Thickness: 5.0mmT

>hardness:75 shore 00

>Colour: Gray

>Good thermal conductive
>Moldability for complex parts
>Soft and compressible for low stress applications


Applications

>cooling components to the chassis of frame

>High speed mass storage drives

>Heat Sinking Housing at LED-lit BLU in LCD

>LED TV and LED-lit lamps

>RDRAM memory modules

>Micro heat pipe thermal solutions


Typical Properties of TIF1200-20-10UF Series
Color
gray
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

2.7 g/cc

ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
5.0mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

75 Shore 00

ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Outgasing (TML)
0.35%
ASTM E595
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

4.6 MHz

ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
2.0 W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470


Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.


Standard Thicknesses:


0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)


Consult the factory to alternate thickness.



FAQ:

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
