High Temperature Food Grade Stainless Steel Wire Mesh Gratex Conveyor Belt For Food Industry

It is very popular to transport small parts and heavy load for gratex weave belts, which is made of spiral wire and rods, it is very similar to balance weave belt but with differences, the spiral wire is weaved very tight, and the rod is straight wire, the left spiral wire and right spiral wire link tightly. Compared with balance weave belts, it has more stronger and strength construction with small open; So it is very suitable for small parts and heavy load duty. With the resistant high temperature material, it is very suitable for sintering, heat treating, brazing, annealing and glass furnace oven as wire mesh belts.

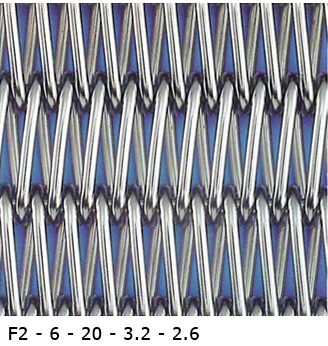

The left-wound and right wound spiral are alternately arranged and jointed with the straight rods. If the rod pitch is less than two-fold spiral pitch, the belts are called A2. If the rod pitch is equal to or greater than two-fold spiral pitch, the belts are called F2.

Specification

● Spiral pitch: 1.5* spiral wire

● Rod Pitch: 8mm-50.8mm

● Spiral wire 0.8mm-5mm

● Rod wire: 1.5mm-8mm

● Selvage options: welded, loop and bending

● The width of flat spiral belts over 6.5m

● Spiral pitch: 1.5* spiral wire

● Rod Pitch: 8mm-50.8mm

● Spiral wire 0.8mm-5mm

● Rod wire: 1.5mm-8mm

● Selvage options: welded, loop and bending

● The width of flat spiral belts over 6.5m

Advantages
The surface is flat, so that unstable items can be carried.
The allowable tension is high, so that heavy load can be carried.
The belts can be used at high temperature.
The belts can have tight mesh, they can carry small materials.

Anping County Comesh Filter Co.,Ltd, founded in 1987 , landed in wire mesh hometown Anping county , which is rich in wire mesh material , now Comesh is a leading manufacurer of food grade materials,such as wire mesh tray and basket for drying,baking,Sterilization and dehydrator for food,fruit and vegetables . stainless steel and polyester mesh conveyor belt for food conveyor , polyester and nylon monofilament wire mesh and wire mesh filters for filtering, we also supply kitchen products such as chain mail scrubber for cast iron pans

Our products have pass many tests and certificates such as FDA,SDS and NSF.Clean and food Safty is our aim.

Products customization is our advantage.

CUSTOMIZED PRODUCTION IS OUR ADVANTAGE!

Our products have pass many test and certificate such as FDA,SDS and NSF.Clean and food Safty is our aim.

Polyester Mesh for screen printing and filtering:
Our factory is located in Anping County-the famous Wire Mesh Land of China,with a land area of 40,000 square meters,a construction area of 13,000 square meters.PFM factory has 83 sets P7100&P7150 Sulzer polyester printing mesh weaving looms. annual output of Polyester Printing Mesh is 3 million meters.

Polyester Mesh Belt

23 sets Sweden Texo polyester dryer fabric looms,50 sets Japanese GRS1300 wire mesh looms

Heat shaping of the mesh belt is very important, our heat shaping make can make sure uniform temperature only+/-1℃ in the whote heating box,advanced programming software which completes the controlling and caculating in computer

Stainless Steel Mesh for Screen Printing and filtering:

46 sets of other machine and devices including automatic warp arranging machine,heat setting machine,Austria Automatic seaming machine and other test facilities.

We sincerely welcome you to visit our factory and would like to establish long-term business relationship with customers all over the world!
