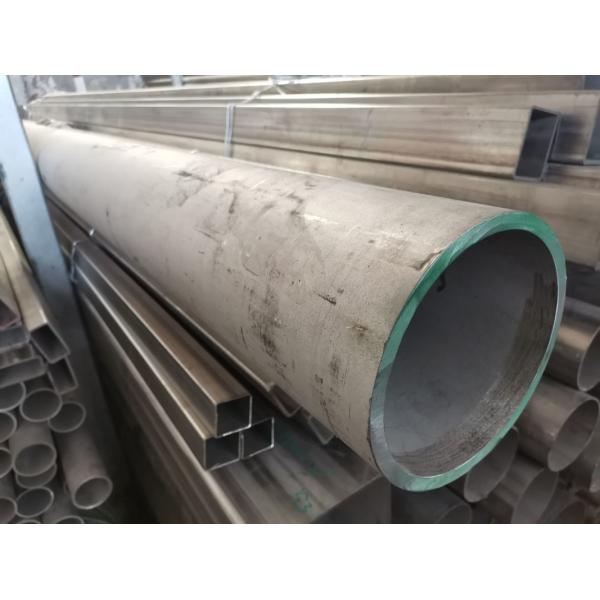

Inox 304 316l Seamless Stainless Steel Pipe 63mm 8 Inch

Inox 316l Stainless Steel Tube Iran Tube 63mm 8 Inch Stainless Steel 304 Stainless Steel Pipe

Austenitic in nature, 304 is primarily composed of nickel and chromium. It is designed with high erosion and oxidation resistance parcels, which also have excellent conformation and welding parcels. 304 pipe is used for high-pressure and high-temperature operations due to its strength and high operating temperature of 870 degrees Celsius.

Technical Data

Mechanical Properties

Temper	Annealed			Cold worked (approx. 20%)
Material	316	316L		316	316L
Tensile Rm	75	70	ksi (min)	102-131		ksi (min)
Tensile Rm	515	485	MPa (min)	700-900		MPa (min)
R.p. 0.2% Yield	30	27	ksi (min)	73-102		ksi (min)
R.p. 0.2% Yield	205	182	MPa (min)	500-700		MPa (min)
Elongation (2” or 4D gl)	35		% (min)	40		% (min)

Physical Properties (Room Temperature)

Specific Heat (0–100 °C)	500	J.kg-1.°K-1
Thermal Conductivity	16.3	W.m -1.°K-1
Thermal Expansion	15.9	μm/μm/°C
Modulus Elasticity	193	GPa
Electrical Resistivity	7.4	Ohm-cm
Density	7.99	g/cm3

Chemical Composition (% by weight)

	316		316L
Element	Min	Max	Min	Max
C	-	0.08	-	0.035
Mn	-	2	-	2
Ni	10	14	10	15
Cr	16	18	16	18
Mo	2	3	2	3
S	-	0.03	-	0.03
Si	-	1	-	1
P	-	0.045	-	0.045

FAQ:

About Us

Wuxi ShiLong Co., Ltd has been engaged in steel industry for more than 11 years. It is located in Jiangsu, Wuxi province, China.Only 15 minutes away from Wuxi High Speed Railway Station.With high quality standard, meticulous workmanship, strict quality control,professional service, ShiLong aims to provide our customers, distributors and suppliers with win-win cooperation.

Our Products

We are famous in our country with good reputation, high-quality products, solid strength and lower price. Our products include cold rolled/hot rolled stainless steel plate, stainless steel coil, stainless steel plate for many domestic and foreign steel enterprises including Shanxi Tisco.Zhangjiagang Pohang Iron & Steel Co., LTD.(ZPSS), Shanghai Baosteel Co., LTD., Ningbo Baoxin Iron & Steel Co., LTD., Taiwan region, Mainland China and many foreign countries and regions. These products are applied to engineering, coal mine, textile, electric power, boiler, machinery, military industry and other fields.

We also keep the business relationship with several Chinese state-controlled enterprise(China Railway 11 Bureau Group Co., Ltd. and China Railway 10 Bureau Construction Co., Ltd., etc.) and we have taken part in the Beijing-Shanghai high-speed railway national construction project (Jinan part), Zhangjiakou Hohhot high speed railway national construction projects in China, supplying steel associated materials to the construction project.

Certificate Of Quality

Warehouse

We have enough steel sheets in stock, can start cutting instantly，which can make us ship the delivery within 7-15 days(depends on the certain situation).

 Packages

Sales&Service
Our products have been exported overseas including Southeast Asia, Europe, North America, South America. Apart from overseas market, we also operate a large number of domestic trade which includes supplying steel material for several Chinese national infrastructure construction projects.

Our service
Pre-sale service ；Free sample. If customer have the require of the sample, we can provide sample for free.
Sales service ;Special process. We can provide other process service. Like : cutting, bending,polished, coloured, galvanized.
After-sales service ：We make sure the good quality of our products. Any problems of the quality we will deal immediately, loss because of the quality , we will compensation for customer.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
