| Categories | Tractor |
|---|---|
| Brand Name: | Infectious |
| Model Number: | TT-01 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 sets |
| Price: | $4980 Sets |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 Sets Week |
| Delivery Time: | 7-15 work days |
| Applicable Industries: | Farms, Retail |
| Weight: | 750 KG |
| By wheel: | 2WD |
| Usage: | Farm Tractor |
| Drive Type: | Belt Drive |
| Certificate: | Other |
| Engine type: | 4 Stroke Water Cooling Diesel |
| Starting Method: | Electricity |

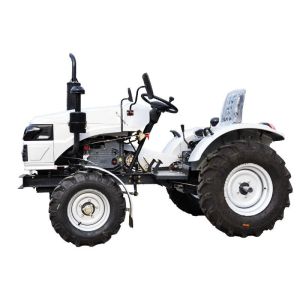

12hp-24hp mini small electric farm agricultural tractor with
implements cultivator pto power
Product description
* Plowing land, in particular virgin lands, using a double-hull
plow.

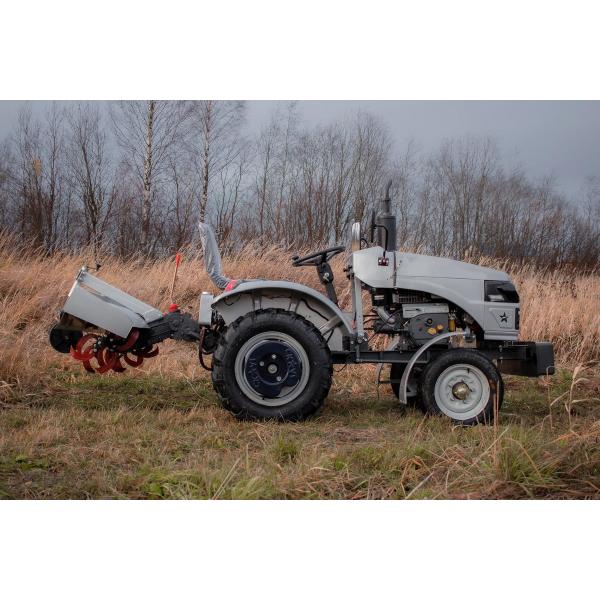

* Cultivation and tillage by a rotary cutter, which is connected to
the PTO.
* Mowing grass with a rear rotor or segment mowing machine and
haymaking with a baler.
* Planting tuberous vegetables with planting machines and sowing
crops with a seeder.
* Planning and construction works using a municipal dump.
* The mini-tractor is designed for the European market, has successfully passed laboratory tests and certification in the European Union. The tractor is used by European and Russian farmers.
* The tractor is based on a frame skeleton, with a three-point attachment system and a power take-off shaft of 540 rpm.
* The track of the mini-tractor is adjustable in the range from 110 to 145 cm. Adjustment is necessary for agricultural tasks in compliance with row spacing. A gauge of 145 cm gives the tractor stability when using an excavator.
* A six-speed gearbox with reverse gear and reverse gear was developed for tractors weighing over one ton. The gearbox can withstand the extreme loads that a 20-liter single-cylinder diesel engine produces. with.
* Non-autonomous six-phase power take-off shaft Ø35 with
rectangular splines, 540 rpm.
* Gearbox (6 + 2) with a planetary differential and a three-point
suspension with a carrying capacity of up to 360 kg.
* Large rear wheels - 9.5 "-16". Proper tractor weight distribution
and reliable traction.
* The package includes weighting ballasts, which increase the
efficiency of the tractor by 14%, and hook power by 48%. The need
for weighting was identified in laboratory tests of the tractor.
* The tractor has front wheels with a longitudinal tread, which
increase efficiency by 7% higher than similar wheels with a chevron
tread.
| Overall dimensions, mm | Length 2815 | Width 1470 | Steering wheel height 1450 | Muffler Height 1745 |
| Ground clearance mm | 320 |
| Structural weight, without attachments, kg | 700 |
| Cabin with heating | Missing |
| Rear wheel size | 9.50 "- 16" |
| Front wheel size | 6.00 "- 12" |
| Track mm | 1100-1350 |
| Type and speed of PTO | Non-autonomous six-phase Ø35 with rectangular slots, 540 rpm. |
| Motor drive | Connecting the engine to the gearbox through constant tension belts |
| Gear type | Mechanical |
| Number of gears | (3 forward + 1 reverse) x 2 |
| Differential lock | Automatic planetary lock |
| Wheel formula | 2WD rear-wheel drive |
| Power Steering (Power Steering) | Missing |
| Rear Mount Type | Three-point hitch | 360 kg payload |
| Type of brake system | Sealed disc brake |
| Clutch type | Single-plate, single-stage, dry, with constant gearing |
| Hydraulic distributor | Standard distributor for three-point suspension |
| Number of additional hydraulic outlets | No additional water outlets |
| Light system | High and low beam | Turn Signals | Marker Lights | Brake light | Rear suspension |
| Sound signal | Horn |
| Dashboard | Voltmeter | Coolant Temperature Sensor | Oil pressure sensor | Hour sensor |
| Minimum turning radius, cm | 220 |
