| Categories | Figure 8 Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM |
| Model Number: | GYTC8Y |
| Certification: | CE/ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 Kilometer |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 kilometers per month |
| Delivery Time: | 2-5days |
| Packaging Details: | Wooden Drum |
| Type: | Outdoor Fiber Optic Cable |
| Number of Conductors: | ≥ 10 |
| Fiber type: | G652D Single mode or as your request |
| Length: | as required |
| Color: | Customized |
| Loose tube: | PBT |
| Jacket: | PE,MDPE,LSZH,PVC |
| Strength member: | steel wire |
| Package: | Wooden Drum/Customized |
| Application: | Aerial,Overhead |
| Oem: | Available |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

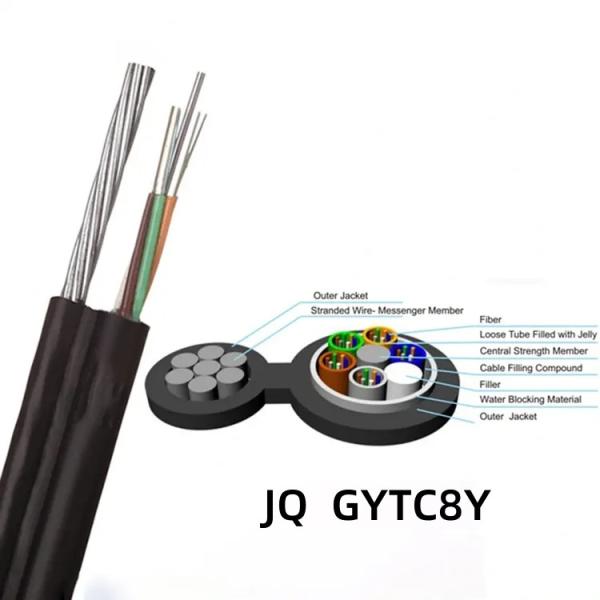

Product Description
■Central strength member Steel wire
■PBT-made loose tubes
■Water blocking tape & gel filled
■Figure-8 shape PE sheath
■Self-support with messerger
■wire(glavinted stranded steel wire)
■2/4/6/8/12/24 core each loose tube
Characteristics:
1. High tensile strength of stranded wires meet the requirement of
self-supporting and reduce the installation cost.
2. Good mechanical and temperature performance.
3. Total cross-section water-resistant structure makes cable have
excellent properties of moisture resistance.
4. Special jelly filled in the loose tube provides the fibers with
critical protection Figure-8 self-supporting structure, high
tension strength, facilitate in aerial, low installation costs.
5. Accurate fiber excess length control ensures excellence
mechanical and temperature performance
6. Strict craft and raw material control for cable stably operating
over 30 years
| item | value |
| Model Number | GYTC8Y |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
