| Categories | Figure 8 Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM |
| Model Number: | GYTC8S GYTC8A |
| Certification: | CE/ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 Kilometer |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 kilometers per month |
| Delivery Time: | 2-5days |
| Packaging Details: | Wooden Drum |
| Type: | Outdoor Fiber Optic Cable |
| Number of Conductors: | ≥ 10 |
| Fiber type: | G652D Single mode or as your request |
| Length: | as required |
| Color: | Customized |
| Tube: | PBT |
| Messenger wire: | Stranded steel wire |
| Outer Sheath: | PE or as your request |
| Package: | Wooden Drum/Customized |
| Application: | Aerial,Overhead |
| Oem: | Available |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description:

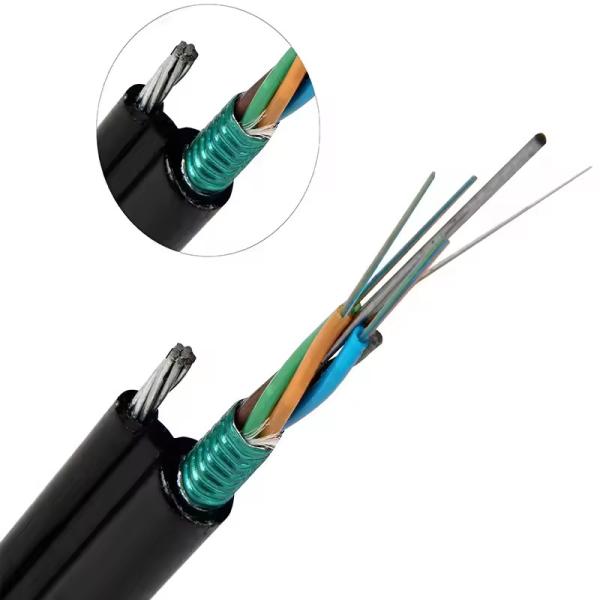

GYTC8A Aerial Self-supporting Fiber Optic Cable
The fibers, 250 um, are positioned in a loose tube made of a high
modulus plastic.The tubes are filled with a water-resistantfilling
compound. A steel wire locates in the center of core as a metallic
strength member. The tubes (and fillers) are strandedaround the
strength member into a compact and circular cable core. After an
Aluminum Polyethylene Laminate(APL) moisture barrieris applied
around the cable core, this part of cable accompanied with the
stranded wires as the supporting part are completed witha
polyethylene (PE) sheath to be figure 8 structure.
Characteristics:
■ High tensile strength of stranded wires meet the requirement of
self-supporting and reduce the installation cast. ■ Good mechanical
and temperature performance High strength loose tube that is
hydrolysis resistant.
■ Special tube lling compound ensure a critical protection
■ Small cable diameter, light cable weight, self-supporting, easily
to install
The following measures are taken to ensure the cable watertight:
-Steel wire used as the central strength member.
-Loose tube lling compound 100% cable core lling.
-APL moisture barrier.
Application:
* Adopted to outdoor distribution.
* Suitable for aerial.
* Long distance and local area network communication.
Specification:
| item | value |
| Model Number | GYTC8A/GYTC8S |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Armor | Al /Steel tape armored |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Structure and Technical Specifications:
| Items | Unit | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -20~+60 |
| Operating Temperature | ºC | -40~+70 |
| Storage Temperature | ºC | -40~+70 |
| Cable Type | Fiber Count | Cable Diameter | Cable Weight Kg/km | Supporting Wire Spec | Connection Diameter mm | Tensile Strength | Crush Resistance N/100m | Bending Radius |
| mm | N | mm | ||||||
| GYXTC8S | 2～12 | 7.0×14.0 | 118 | ф1.0mm×7 | High * width | 3500/7000 | 1000/3000 | 15D/30D |
| steel strand | 3.0×2.5 | |||||||
| GYXTC8S | 14～24 | 8.0×15.1 | 129 | ф1.0mm×7 | High * width 3.0×2.5 | 3500/7000 | 1000/3000 | 15D/30D |
| steel strand |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd
Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang
Town,Zengcheng District,Guangzhou city,Guangdong province,China.It
is a large-scale high-tech specialized joint-stock enterprise that
integrates scientific research, development,production, and sales.
It specializes in producing various types and specifications of
optical cables with 2-288 cores. The company adheres to the
corporate spirit of "integrity, speed, flexibility, efficiency, and
innovation", and strives for perfection, appreciation for
customers, and paving the way for success, Adhere to the standard
that "customer satisfaction is the most important measure of our
performance". We promise to work together with you with
high-quality products, discounted prices,and first-class services
to create a brilliant career.
We sincerely welcome customers all over the world to visit our
factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to
Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid
East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are
total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables,
Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western
Union,Cash;
Language Spoken:English,Chinese
|
