| Categories | Outdoor Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM |
| Model Number: | GDTS |
| Certification: | CE/ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 Kilometer |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 kilometers per month |
| Delivery Time: | 2-5days |
| Packaging Details: | Wooden Drum |
| Type: | Outdoor Fiber Optic Cable |
| Number of Conductors: | ≥ 10 |
| Fiber type: | G652D Single mode or as your request |
| Length: | as required |
| Color: | Customized |
| Cable Structure: | Multi-Loose Tube Steel Tape armor |
| Armoured: | Steel tape |
| Package: | Wooden Drum/Customized |
| Application: | aerial, in duct |
| Oem: | Available |
| Keywords: | hybrid cable |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description:

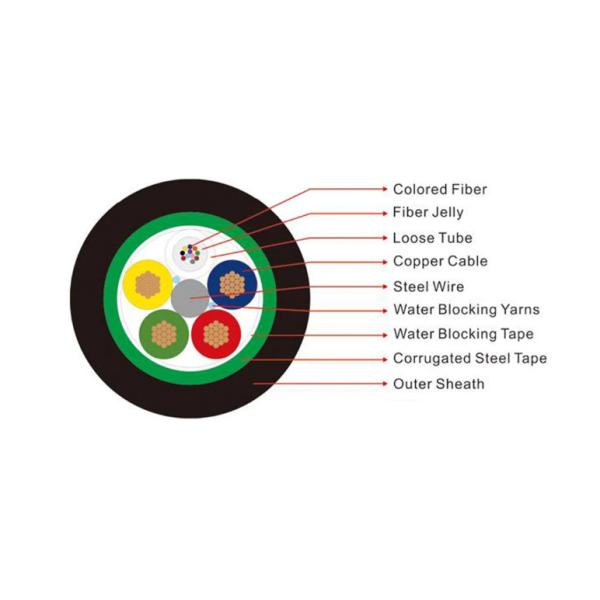

The structure of the GDTS photoelectric hybrid cable is that single mode or multi-mode fiber is packed into a loose tube made of a high-modulus polyester material, and the tube is filled with a waterproof compound. At the center of the cable core is a metal reinforcement core, and for some cables with a number of cores, a layer of polyethylene needs to be squeezed on the outside of the metal reinforcement core. A compact circular cable core is formed by stranding the loose sleeve and the required insulating copper wire around the central reinforcing core, and the gap in the cable core is filled with water-blocking filler. Double chrome coated plastic steel strip (PSP) rolled longitudinally and extruded polyethylene sheath to form cable.
Characteristics:
• Photoelectric integration, solve the problem of equipment power consumption and signal transmission, and provide centralized monitoring and maintenance of equipment power supply
• Improve power supply manageability and reduce power supply coordination and maintenance
• Reduce procurement costs and save construction costs
• Precisely controlled fiber residual length ensures good tensile and temperature characteristics of the cable
• Mainly used in distributed base station DC remote supply system, connecting BBU and RRU.
Application:
he cable Laying method:
Suitable for self-supporting Aerial.
Suitable for long-distance communication, local trunk line, CATV & computernetworks system.
Specification:
| item | value |
| Model Number | GDTS |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose Tube Material | PBT |
| Armoured | Steel tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Steel Tape armor |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd
Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang
Town,Zengcheng District,Guangzhou city,Guangdong province,China.It
is a large-scale high-tech specialized joint-stock enterprise that
integrates scientific research, development,production, and sales.
It specializes in producing various types and specifications of
optical cables with 2-288 cores. The company adheres to the
corporate spirit of "integrity, speed, flexibility, efficiency, and
innovation", and strives for perfection, appreciation for
customers, and paving the way for success, Adhere to the standard
that "customer satisfaction is the most important measure of our
performance". We promise to work together with you with
high-quality products, discounted prices,and first-class services
to create a brilliant career.
We sincerely welcome customers all over the world to visit our
factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to
Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid
East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are
total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables,
Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western
Union,Cash;
Language Spoken:English,Chinese
|
