New Shacman E6 Concrete Mixer Truck White Color 6x4 10Wheels 6cbms

Categories Concrete Mixer Truck
Brand Name: Shacman
Model Number: SX5186GSSK2N22B4610
Certification: CCC,ISO
Place of Origin: China
MOQ: 1 unit
Price: FOB 30000-33000 USD Per Unit
Payment Terms: LC,TT
Supply Ability: 300 Units Per Month
Delivery Time: 30-45 Days
Packaging Details: nude
Tank volume: 6m³
Max.Toruqe: 1820/1100-1500(Nm/rpm)
Chassis(mm): 250/6+4 double
Wheelbases(mm): 3700+1300
Front Axle: 5T
Rear Axle: 8T,10T
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

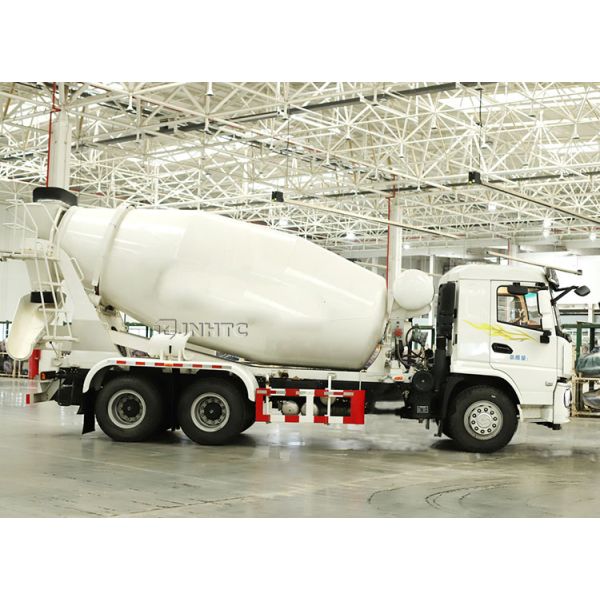

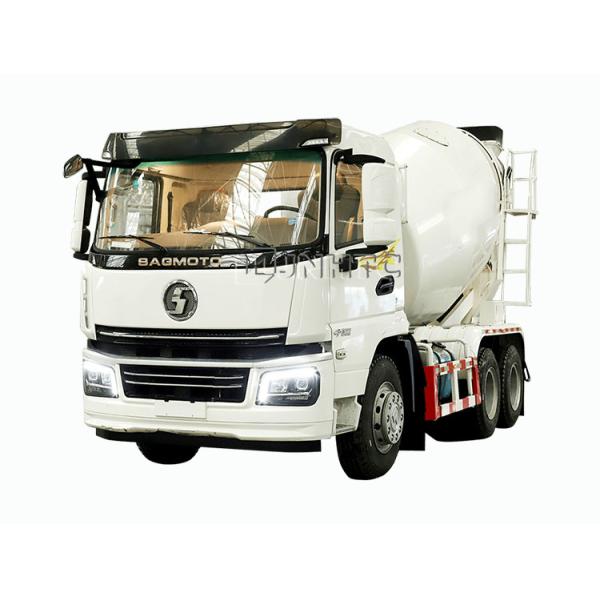

New Shacman E6 Concrete Mixer Truck White Color 6x4 10Wheels 6cbms

Shacman E6 Concrete Mixer Truck 6x4 10Wheels 6cbm 300HP Truck-mounted Mixer

ModelSX5186GSSK2N22B4610
Basic ConfigurationDriving Type6×4
Vehicle Body(mm)E6 ultra-low roof/2220
EngineEngine Power300
EmissionsEuroⅢ-EuroⅥ
Wheelbases(mm)3700+1300
Chassis(mm)250/6+4 double
shifting8Forward GearMT+2Reverse Gear
Front Axle5T
Rear Axle8T,10T
Leaf Spring9/10
Tyres11.00R20/18PR
Tank volume6m³
Oil Tank270L Aluminum

Short wheelbase design can be assembled to shorten the axle, smaller turning radius, flexible to deal with different complex road conditions.

Triple-layer beams; four-bolt steel plate springs; overall vehicle driving stability.

Handlebar remote throttle controller (triple-proof); full engine power take-off.

The concrete mixing and transportation vehicle is composed of a car chassis and a specialized device for

concrete mixing and transportation. The chassis of concrete mixing transport vehicles produced in China

mostly adopts the Class II universal chassis provided by the vehicle manufacturer. Its specialized mechanisms

mainly include power take-off, front and rear brackets of the mixing drum, reducer, hydraulic system, mixing

drum, control mechanism, cleaning system, etc. The working principle is to extract the power from the car

chassis through a power take-off device and drive the variable displacement pump of the hydraulic system

to convert mechanical energy into hydraulic energy and transmit it to the quantitative motor. The motor then

drives the reducer, which drives the mixing device to mix concrete.
