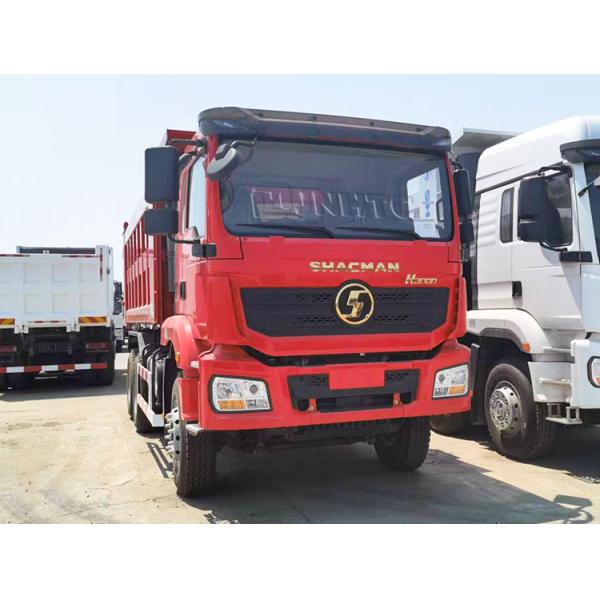

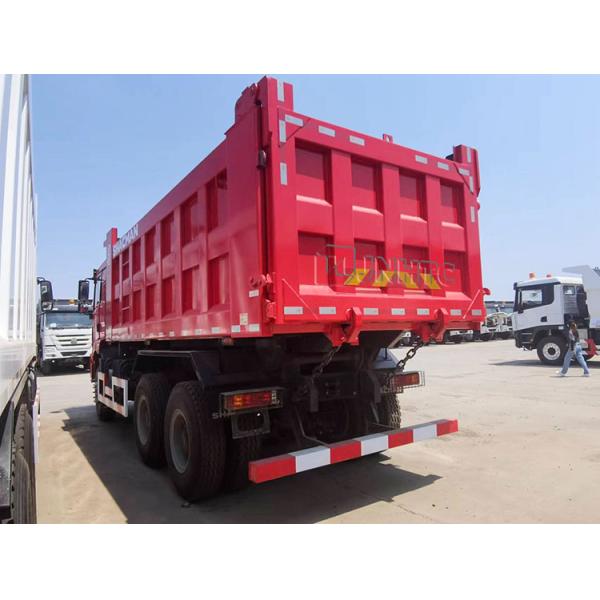

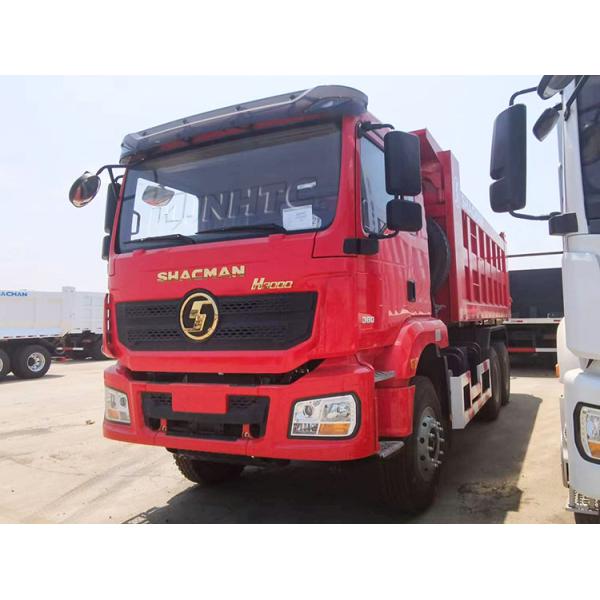

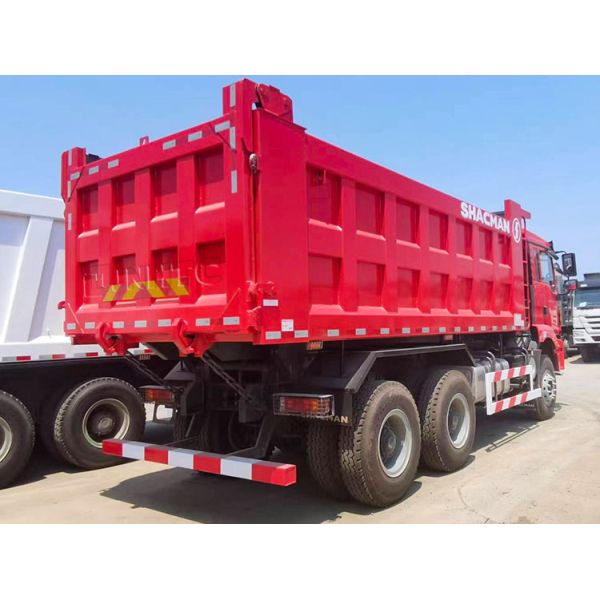

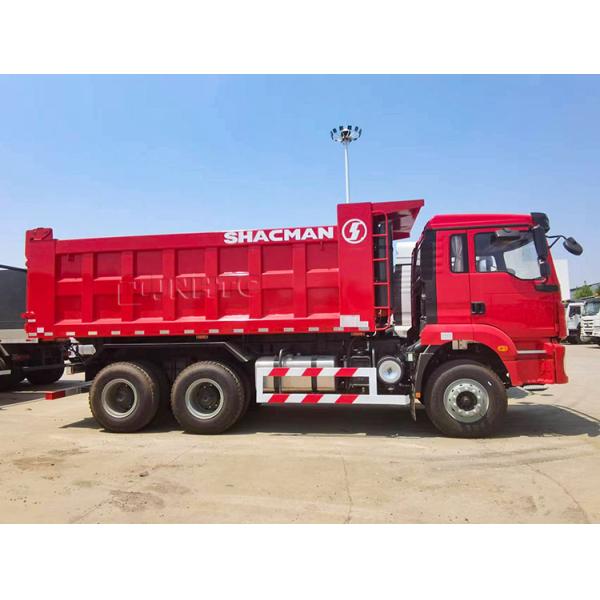

SHACMAN H3000 Dump Truck 6x4 380hp10 Wheel Dump Truck Tipper Truck 20 Cbm Capacity

Categories Heavy Duty Dump Truck
Brand Name: SHACMAN
Model Number: SX3255DT384
Certification: ISO,CCC,GCC
Place of Origin: Shandong, China
MOQ: 1 Unit
Price: FOB 30000-33000 USD Per Unit
Payment Terms: L/C, T/T
Supply Ability: 300 Units Per Month
Delivery Time: 30 Working Days
Packaging Details: Nude,wax before shipping.
Steering: Left
Engine Brand: WEICHAI
Capacity (load): 25-30t
Horsepower: 351 - 450hp
Emission standard: Euro 2-Euro 6
Cargo Tank length: 5.3-6.2M
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SHACMAN H3000 Dump Truck 6x4 380hp10 Wheel Dump Truck Tipper Truck 20 Cbm Capacity

SHACMAN H3000 Dump Truck 6x4 380hp10 Wheel ipper Truck 20 Cbm Capacity

Drive type
6×4
Complete kerb mass (kg)
11200
Max.total mass (kg)
25000
Max.speed (km/h)
70
Min.turning circle(m)
18
Min.ground clearance(mm)
314
Approach / Departure angle (°)
16/66
Max.gradeability(%)
40
Appearance dimensions (mm)
Max.length
8275
Max.width
2490
Max.heigh
3300
Front / Rear overhang
1525/1600
Wheel base(mm)
3800+1350
Track width(mm)
1939 / 1800
Engine
WP10.290
Rated Output (kw/ps)
228/290
Clutch
φ420mmSpring-loaded clutch damper
Transmission
FULLER 9JS135
Gear ratio
12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1.00 12.66R
Front axle
7.5tons
Rear axle
Shan Qi Steyr military reinforced axle 13tons
Steering
Integral inner circulation power sreering
Cab
D'LONG F2000, flat roof
Tire
12.00R20
Fuel consumption for 100km(50km/h) L
36
Fuel tank capacity (L)
300
Platform dimensions(mm)
5600*2300*1500 middle lift

A dump truck is a specialized vehicle used for transporting bulk materials, which has the function of automatic

unloading and can greatly improve the efficiency of loading and unloading materials.
Dump trucks are usually modified using the chassis of cargo trucks, and the carriages can be lifted by hydraulic

or mechanical devices to automatically unload goods. This design enables dump trucks to be widely used in

mines, construction sites, sand fields, and other fields, and can quickly load and unload bulk materials such as

sand, ore, and coal.
The advantage of a dump truck is its convenient and fast unloading, which saves manpower and time. Its carriage

design is generally sturdy and can withstand the pressure of heavy objects. In addition, some dump trucks are

also equipped with dust prevention devices to reduce dust pollution during the unloading process.
When choosing a dump truck, factors such as the vehicle's load-bearing capacity, unloading method, and chassis

stability need to be considered. At the same time, in order to ensure safe operation, the driver of the dump truck

needs to have corresponding driving skills and experience.
