Belparts Excavator Main Pump R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 Hydraulic Pump 31Q6-10010 31N6-17010 31Q6-10100

Categories Excavator Hydraulic Pump
Brand Name: Belparts
Model Number: R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9
Place of Origin: Guangdong, China
MOQ: 1 piece
Price: Negotiable price
Payment Terms: T/T, Paypal and Trade Assurance
Supply Ability: 1000pieces
Delivery Time: 1-5days
Packaging Details: Wooden packing
Product name: Excavator main pump
Machine model: R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9
Part number: 31Q6-10010 31N6-17010 31Q6-10100
Brand: Belparts
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Belparts Excavator Main Pump R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 Hydraulic Pump 31Q6-10010 31N6-17010 31Q6-10100

Belparts excavator main pump R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9 hydraulic pump 31Q6-10010 31N6-17010 31Q6-10100​


Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:R210LC-9 R235LCR-9 R210NLC-7A R210NLC-9
Packing Size:84*38*49
Part number: 31Q6-10010 31N6-17010 31Q6-10100
Pressure:Standard, High Pressure

Specifiions Of Excavator Hydraulic Pump

Product NameExcavator Hydraulic Pump
BrandBelparts
Machine modelR210LC-9 R235LCR-9 R210NLC-7A R210NLC-9
Packing Size84*38*49
Part number31Q6-10010 31N6-17010 31Q6-10100
PressureStandard, High Pressure

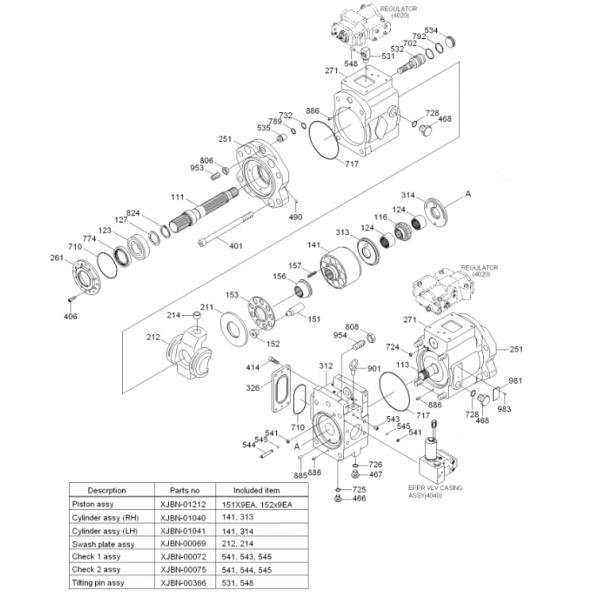

#Part NoPart NameQty.Price request
*31Q6-10010MAIN PUMP
*-1,-2,-3,-4
1
*-1@FUEL INJECTION PIPE & NOZZLE1
111XJBN-00077DRIVE SHAFT(F)1
113XJBN-00078DRIVE SHAFT(R)1
116XJBN-01213GEAR-1ST1
123XJBN-00950BEARING-ROLLER2
127XJBN-00081SPACER-BEARING4
NS141XJBN-00067BLOCK-CYLINDER2
NS151XJBN-01032PISTON18
NS152XJBN-01214SHOE18
153XJBN-00945PLATE-SET2
156XJBN-00083BUSHING-SPHERICAL2
157XJBN-00084SPRING-CYLINDER18
211XJBN-00085PLATE-SHOE2
NS212XJBN-00070PLATE-SWASH2
S214XJBN-00071BUSHING-TILTING2
251XJBN-00086SUPPORT2
261XJBN-00087COVER(F)-SEAL1
271XJBN-01034CASING-PUMP2
312XJBN-00940BLOCK-VALVE1
NS313XJBN-01035PLATE-VALVE(R)1
NS314XJBN-01036PLATE-VALVE(L)1
326XJBN-00937COVER1
401XJBN-00090SCREW-HEX SOC HD8
406XJBN-00355SCREW-HEX SOC HD4
414XJBN-00160SCREW-SOCKET4
466XJBN-00356PLUG2
467XJBN-00936PLUG2
468XJBN-00357PLUG4
490XJBN-00032PLUG27
NS531XJBN-00358PIN-TILTING2
532XJBN-00955PISTON-SERVO2
534XJBN-01037STOPPER(L)2
535XJBN-00093STOPPER(S)2
NS541XJBN-00859SEAT4
NS543XJBN-00860STOPPER2
NS544XJBN-00861STOPPER2
S545XJBN-00359BALL-STEEL4
NS548XJBN-00360PIN-FEED BACK2
702XJBN-00918O-RING2
710XJBN-00095O-RING2
717XJBN-00096O-RING4
724XJBN-00361O-RING16
725XJBN-00362O-RING6
726XJBN-00233O-RING2
728XJBN-00363O-RING4
732XJBN-00912O-RING2
774XJBN-00962SEAL-OIL1
789XJBN-00099RING-BACK UP2
792XJBN-00100BACK-UP RING2
806XJBN-00101NUT-HEX2
808XJBN-00364NUT2
824XJBN-00102RING-SNAP2
885XJBN-00103PIN-VALVE PLATE2
886XJBN-00365PIN-SPRING4
901XJBN-00104BOLT-EYE2
953XJBN-00105SCREW-SET2
954XJBN-00106SCREW-SET2
981XJBN-00156NAME PLATE1
983XJBN-00341PIN2
*-2@FUEL INJECTION PIPE & NOZZLE
SEE 4020
2
*-3@FUEL INJECTION PIPE & NOZZLE
SEE 4030
1
*-4@FUEL INJECTION PIPE & NOZZLE
SEE 4040
1
011XJBN-01212PISTON SUB ASSY
SEE ILLUST
2
013XJBN-01040CYLINDER SUB ASSY-RH
SEE ILLUST
1
014XJBN-01041CYLINDER SUB ASSY-LH
SEE ILLUST
1
030XJBN-00069SWASH PLATE SUB ASSY
SEE ILLUST
2
041XJBN-00072CHECK VALVE ASSY 1
SEE ILLUST
2
042XJBN-00075CHECK VALVE ASSY 2
SEE ILLUST
2
530XJBN-00366TILTING PIN ASSY
SEE ILLUST
2


Model

Nominal
displacement(ml/)

Fore pump/
hind pump
Pressure(MPa)Speed(r/min)
Volumetric
efficiency(≥%)

Fore pump/
hind pump
dDL1L2L3L
Weight
(kg)

Rated

Max

Optimum
speed

Speed
range
CBQLT-F532/F525/F410-AF**32/25/1020251500-2500800-300092/92/93202567204.5331.239217.6
CBQLT-F532/F532/F410-AF**40/32/103069.5212341.540218.2
CBQLT-F532/F525/F416-AF**40/32/1634540918.5
CBQLT-F532/F532/F410-AF**50/32/102573219348.540918.9
CBQLT-F532/F532/F416-AF**50/32/1635241618.9
CBQLT-F532/F540/F410-AF**50/40/10221.5353.541419.2
CBQLT-F532/F540/F416-AF**50/40/1635942319.9
