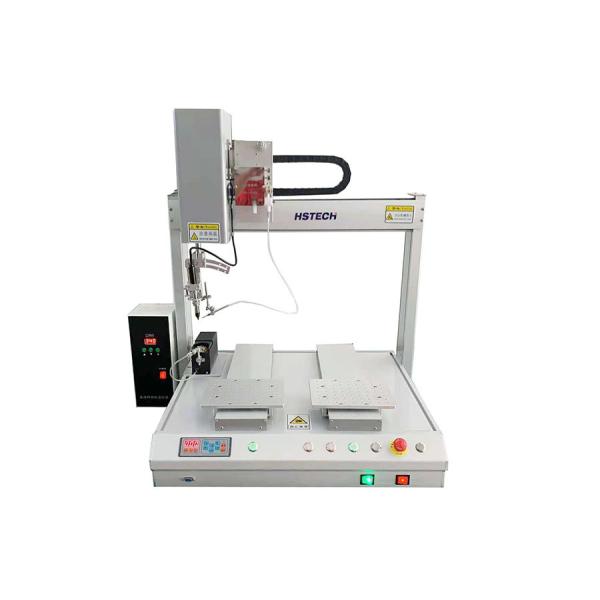

5 Axis Dual Table Robotic Automatic Soldering Machine With Smoke Purification Filter System

We call this soldering robot a 5 axis soldering machine, it based on a 4 axis soldering robot and plus a 360 degree rotation R axis, so it has larger soldering range.

Welding is the process of joining metal parts using various fusible alloys (solders). The melting point of solder is lower than that of the material to be welded, so that the components will form intermolecular contacts through their surfaces without being melted to complete the welding.
Welding can be divided into soft welding and hard welding. The soft welding temperature is lower than 450℃, and the hard welding temperature is higher than 450℃. Hard welding is usually used for metals such as silver, gold, steel, and copper. Its welding points are much stronger than soft welding, and its shear strength is 20 to 30 times that of soft welding. The term welding is generally used for the above two types of thermal connections, because in both cases molten solder is written into an elongated gap between two clean and close solid metal surfaces to be installed.

• Semiconductor Products
• optical products
• Electronic Products
• General home appliances
• Precision Machines/Electrical Products
• Large-scale mechanical products
• General Consumer Goods

• 5 axis soldering.
• Stepper motor control.
• Heating and broken tin control.
• High quality Hiwin Linear guide, ensure the moving smooth and flat.
• Flexible soldering, available for spot soldering, drag soldering and other functions.
• The machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.
• Teach pandent programing, can save max 99 groups programs.
• Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.

Fully automatic string welding machines and fully automatic monolithic welding machines have the following advantages compared with manual welding:

1. Fast welding speed, good quality consistency, beautiful surface, and no uneven solder phenomenon caused by manual welding. Equipment welding can avoid the influence of various human factors during manual welding, such as the influence of the operator's proficiency, physical condition, emotions, etc., thereby ensuring the consistency and reliability of welding.
2. It can reduce the number of operators and inspection personnel, reduce management difficulty and product costs. Nowadays, labor costs are increasing year by year, and annual recruitment is the most troublesome thing for bosses. Automatic welding machines can significantly reduce the number of employees.
3. The welding reliability of the string welding machine is much greater than that of manual welding. Poor welding is an important cause of premature component failure
