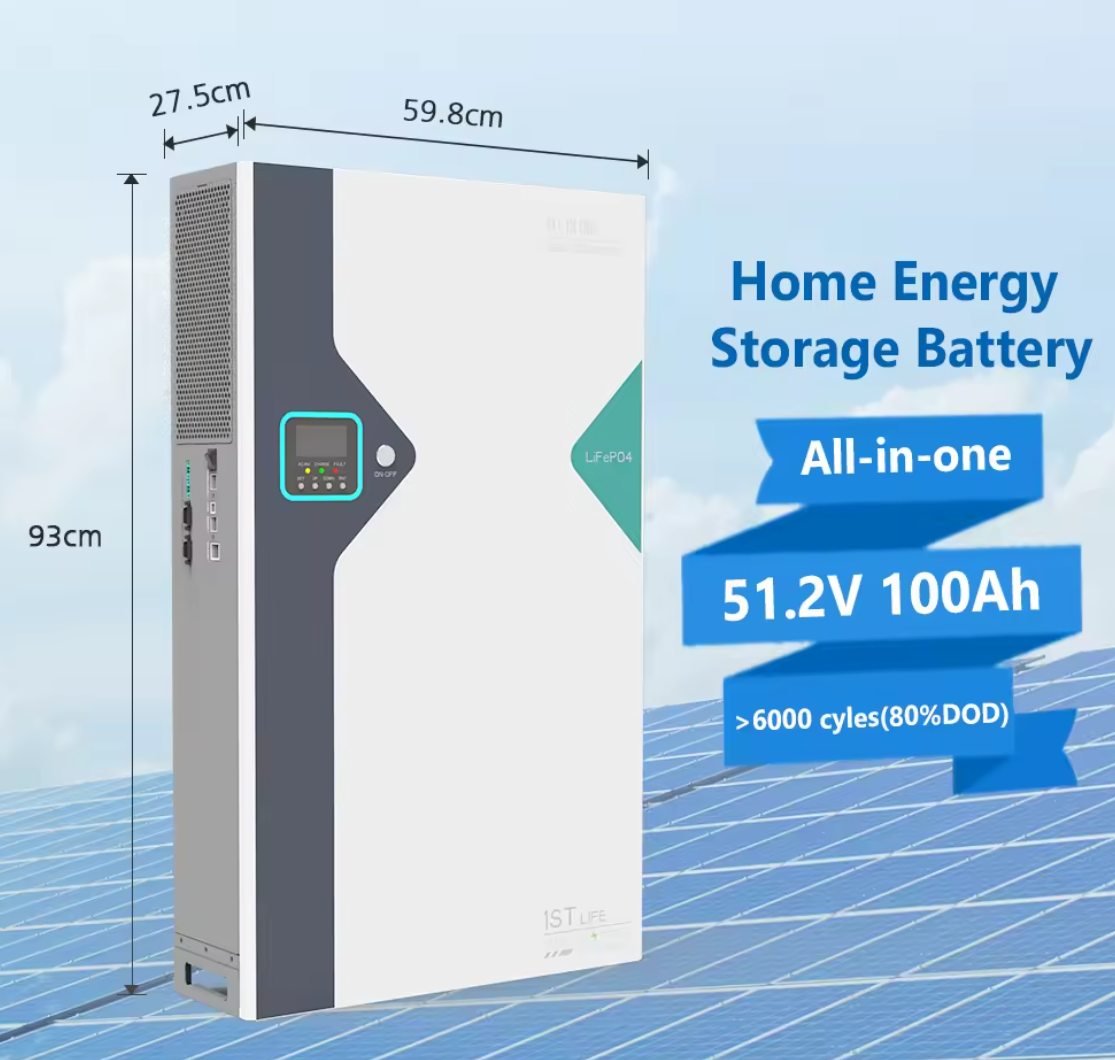

All-In-One ESS 5KW 5kWh Inverter Battery Lithium 51.2V 100Ah Home Solar Energy System

All-In-One ESS 5KW 5kWh Inverter Battery Lithium 51.2V 100Ah Home Solar Energy System

Product parameters

Basic Parameters	Voltage	51.2V
	Capacity	100Ah(Standard )
	Energy	5120Wh
	Internal resistance	≤120mΩ
Size and weight	Thickness	185mm
	High	834mm
	Length	500mm
	Weight	65Kg
Electrical Parameters	Charging mode	constant current
	Charging Current	0.5C(Standard)
		1C(Maximum constant current@25℃)
	Overcharge protection voltage	44.8V
	Discharge mode	constant current
	Over-discharge protection voltage	58.4V
	Discharge Current	0.5C(Standard )
		1C(Maximum constant current@25℃)
Working Parameters	Working Temperature	Charging (Small Current):0℃~+45℃
		Discharge(Small Current)-20℃~+55℃
	Storage Temperature	Conventional storage temperature:-10~+45℃(Three months ,SOC:20%~60%)
		Conventional storage temperature: < 1 month:-5~+45℃ >6 months:0~+35℃
	Storage Humidity	5%~95%
	Transportation Environment	Voltage:44.8V~58.4V
		SOC:30%~60%

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
