Goodyear 2B9-250 Air Spring Rubber W01-358-6943 Firestone Double Bellow Suspension Air Bags

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 2B6943
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD59.9-69.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Item Name: Plate Industrial Rubber Bellows
Quality: 100 % Tested
Fuction: Reduce Shock
Firestone: W01-358-6943
After-sales Service: 12 Months
Type: Gas-Filled
Goodyear: 2B9-250
Stroke: 79mm-325mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Goodyear 2B9-250 Air Spring Rubber W01-358-6943 Firestone Double Bellow Suspension Air Bags


Goodyear 2B9-250 Air Spring Rubber W01-358-6943 Firestone Double Bellow Suspension Air Bags


OEM NO.

FirestoneW01-358-6943
Firestone

WO13586943

Firestone

WO1-358-6943

Firestone

W013586943

FIRESTONEW01-358-6943
FIRESTONE

WO13586943

FIRESTONE

WO1-358-6943

FIRESTONE

W013586943

ContitechFD 200-25 426
ContitechFD 200 25 426
ContitechFD200-25 426
ContitechFD 200 25 426
ContitechFD20025426
Contitech161332
Triangle6332
Triangle4426
Goodyear2B9-250
Goodyear2B9 250
Goodyear578923206
Watson&ChalinAS-0041
Watson&ChalinAS 0041
Neway/SAF90557237
Ridewell1003586943C
Tuthill6352
Van Raden
V-Steer ll (Lift Bag


Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6927
  • Nut/blind nut
Top plate screw (nut) teeth: 2X1/2-13UNF
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-13UNC

The screw center distance of the bottom cover plate: 89 mm
  • Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
The screw center distance between the air hole and the nut: 44.5mm
  • Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm
  • Bell rubber bellows
Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 79 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 79 mm
Stroke height: 246mm
  • Bumper block/bumper block
Without bumper block
  • Belt loop/Belt loop
With belt loop: One belt loop


Min. pressure: 0bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 3.5kg


Vibration isloation-dynamic characteristic values
Design height H: recommended 254mm, minimum 230mm
Pressure p [bar]345678Vol. V [l]
Force (Load) [KN]6.08.110.212.314.416.58.6
Spring rate [N/cm]7309301200139016601840
Natural frequency [Hz]1.81.81.71.71.71.7


Pneumatic application-static characteristic values
Force F[KN]
Pressure p [bar]345678Vol. V [l]
Height H[mm]2904.15.67.39.010.512.49.4
2605.67.39.411.313.415.48.9
2306.68.811.113.415.818.18.4
2007.59.912.515.017.620.27.7
1708.311.013.816.619.422.27.0
1408.911.814.817.720.723.66.1
1109.312.315.618.721.924.65.1

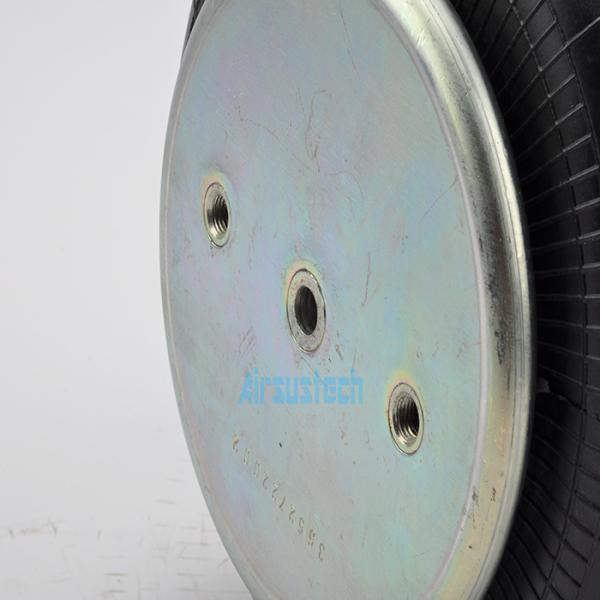

The related picture of 2B6943

Goodyear 2b9-250 Air Spring Rubber Double Bellow Suspension Air BagsGoodyear 2b9-250 Air Spring Rubber Double Bellow Suspension Air Bags
