W01-358-7431 Firestone Rubber Air Bellow W013587431 Double Convoluted Type Air Shock

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 2H7431
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD129.9-159.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model Name: Industrial Air Spring
Structure: Double Convoluted
Function: Reduce Shock
Condition: Brand New
Firestone: W01-358-7431
Connection Method: Flange Connection
Warranty: 12 Months
MOQ: 1 pc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-358-7431 Firestone Rubber Air Bellow W013587431 Double Convoluted Type Air Shock

W01-358-7431 Firestone Rubber Air Bellow W013587431 Double Convoluted Type Air Shock

Product Details

Product NameIndustrial Air Spring
Model No.2H7431
BrandGUOMAT
Warranty1 Year
MaterialRubber+Steel
With FlangeYes
FirestoneW01-358-7431
FirestoneW013587431
FirestoneW01 358 7431
FirestoneWO13587431
FirestoneWO1 358 7431
FirestoneWO1-358-7431

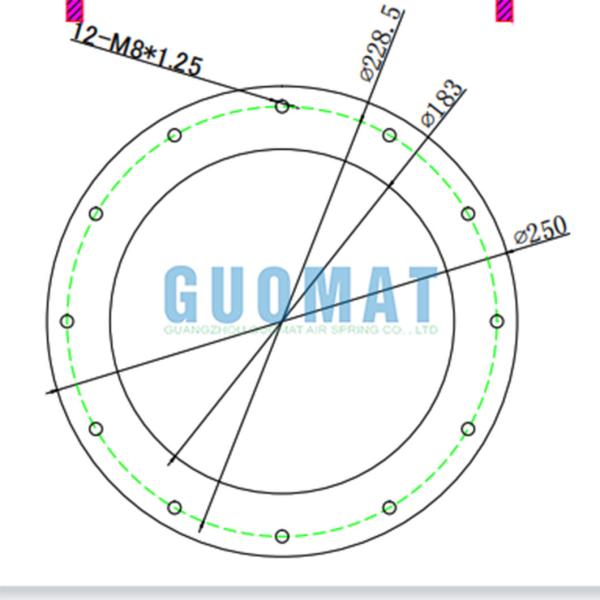

W01-358-7431 Firestone Industrial Air Spring Technical Data

Cover Plate Diameter

Ø250mm

The Screw/Nut on Top

12pcsxM8x1.25

Screw/Nut Height

25mm

The Center Distance Between the Screws

Ø228.5mm

Nominal Diameter

Ø183.05mm

The Screw/Nut on Bottom

12pcsxM8x1.25

Rubber Bellows Diameter

Ø301mm

The Height

193mm


DescriptionAssembly Order No.
Style 22Blind nuts,1/4 NPTW01-358-7180
Blind nuts,1/4 NPT,bumperW01-358-7400
Two Ply BellowsBlind nuts,3/4 NPTW01-358-7184
Blind nuts,3/4 NPT,bumperW01-358-7185
Countersunk steel bead rings,1 5/8 bolts,nuts,washersW01-358-7431
Rubber bellows onlyW01-358-0226

Same Type Flange Air Spring

Style 116, W01-358-7568

Style 117, W01-358-7606

Style 115, W01-358-7469

Style 19, W01-358-7023

Style 19-.75, W01-358-6896

Style 113, W01-358-7110

Style 113-1, W01-358-7211

Style 224, W01-358-3407

Style 26, W01-358-7333

Style 274, W01-358-6923

Style 20-2, W01-358-7789

Style 22, W01-358-7431

Style 210, W01-358-7258

Style 22-1.5, W01-358-7480

Style 21, W01-358-7139

Style 205, W01-358-7237

Style 21-2, W01-358-9531

Style 233-2, W01-358-7558

Style 313, W01-358-7801

Style 39, W01-358-1099

Style 333, W01-358-7830


Every Standard Air Spring Consists of 4 Layers

•The inner layer which actually contains the air.

•The first layer of fabric reinforced rubber applied

at a specific angle.

•The second layer of fabric reinforced rubber which

is laid to a specific angle to the first layer.

•The cover to protect the bias fabric plies.


Industrial Air Spring Problem Solutions

GATE VALVE OPERATOR

GLUING PRESS

WEB TENSIONING DEVICE

DIE STRIPPER

KNIFF SPRING ACTUATOR

QUENCH TANK ACTUATOR

PAPER SIZING PRESS

PICKLING TANK ACTUATOR

QUICK LOCK DEVICE

PRESSURE ROLL FOR CALENDER

MISSILE ASSEMBLY FIXTURE

CORE STRAIGHTENER

BELT TAKE UP

ROLLER FRICTION BRAKE

PIPE INDEXING THREADING

OSCILLATING DOCTOR FOR PAPER CALENDER ROLL

FORMING PRESS

CABLE TENSIONING DEVICE

BAD FLATTENER

TORSIONAL FRICTION BRAKE

HOT FOIL STAMPING PRESS

ACTUATED HEAVY DUTY SEALER

PIVOTED CLAMPING DEVICE

AIRSTROKE ACTUATED ROLLER STOP

HINGED ACTUATED GRAVITY GATE

VERTICAL ACTUATED DRIVE TABLE
SCISSOR LIFT
CASE PACKER
CONVEYOR TRANSFER ACTUATOR
