2B9-218 Goodyear Air Spring Industrial Air Spring Rubber Bellows 578923206 For SAF Holland 57006927

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 2B6927
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD59.9-69.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
N.W.: 3.0 Kg
Pressure Ability: 0.2-0.8 M PA
Air Inlet: G3/4
Top Plate Hole/Stud: 3/4 NPT
Bottom Plate Hole/Stud: 3/8 NPT
Bottom Plate Dia: 160 mm
Warranty: One Year
Type: Suspension Spring
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2B9-218 Goodyear Air Spring Industrial Air Spring Rubber Bellows 578923206 For SAF Holland 57006927

2B9-218 Goodyear Air Spring Industrial Air Spring Rubber Bellows 578923206 For SAF Holland 57006927

2B6927 Cross others OEM


OEM References NumbersReferences Numbers

GUOMAT :2B6927

Fire stone Air Spring : W01-358-6927

Triangle : 6332/4453
Contitech : FD 200-25 453Leland : Sc2072
Contitech :: 161336SAF Holland : 57006927
Goodyear : 2B9-218Tuthill Technology : 1290601
Goodyear : 578923206/2Reyco : 12906-01

Airspring Supplier: ContiTech
Reference: 161336
Competitor / Supplier Number: FD20025453

Airspring Supplier: Goodyear
Reference: 578923206
Competitor / Supplier Number: 2B9218

Airspring Supplier: Triangle
Reference: 6332
Competitor / Supplier Number: 4453

Suspension Supplier: Leland
Competitor / Supplier Number: SC2072

Suspension Supplier: SAF Holland
Competitor / Supplier Number: 57006927

Suspension Supplier: Tuthill Technology
FSIP OEM: W017556927

Suspension Supplier: Tuthill Technology
Competitor / Supplier Number: 1290601

Fire stone Air Spring trimmed: w013586927


GUOMAT 2B6927 Technical parameters


Nut / Blind Nut


Top Cover Plate Screw (Nut) Tooth : 1pcsX 3/4-16UNF

Top Cover Plate Screw (Nut) is Combined with the (Gas Hole / Air inlet / Air Fitting) which is In The Middle Of The Top Cover Plate

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm


Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF


Cover Plate

Top Cover Plate Diameter: 160 mm / 6.31 inches

Bottom Cover Plate Diameter: 160 mm / 6.31 inches


Rubber Bellows

Rubber Bellows MAX Diameter: 262 mm

Rubber Bellows Natural Diameter :225 mm / 8.88 inches

The Working Stroke : MAX 325mm to MIN 81 mm

Maximum Height : 325 mm

Minimum Height :81 mm / 3.12 inches

Stroke Height : 224 mm


Bumper block / Buffer block

With Bumper Block Or Without Bumper Block


Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


Fire stone Air Spring Part Number:W01-358-6927 / w013586927 / w01 358 6927

Fire stone Air Spring Bellows Number:20-2

ContiTech : FD20025453 / FD200-25453 FD200-25 453

ContiTech : 16133

Goodyear Part Number:2B9-218 / 2B9218 / 2B9 218

Goodyear Bellows Number:578-92-3-202 / :578923202 / :578 92 3 202

Reyco Number:12906-01

Triangle Part Number:4453

Triangle Bellows Number:6332

Leland : SC2072

SAF Holland : 57006927

Tuthill Technology : FSIP OEM: W017556927

Tuthill Technology : 1290601


Details Technical data at the below photo

Vibration isolation - dynamic characteristic values


Design height H: recommended 10 inch, minimum 9.06 inch

Pressure p [psi]

40

60

80

100

120

Vol. V [in.3]

Force (Load) [lbf]

1230

1890

2540

3190

3840

Spring rate [lbf/in.]

389

552

741

932

1080

538

Natural frequency [Hz]

1.8

1.8

1.7

1.7

1.7


Pneumatic application - static characteristic values Force F [kN]


Force F [lbf]

Pressure p [psi]

40

6

0

80

100

120

Vol. V [in.3]

Height H [in.]

11.0

948

1470

2000

2550

3110

560

10.0

1180

1780

2430

3060

3720

540

9.0

1370

2070

2780

3510

4240

510

8.0

1530

2280

3070

3850

4640

470

7.0

1670

2490

3340

4200

5030

440

6.0

1790

2680

3570

4470

5360

400

5.0

1880

2800

3750

4700

5570

350

4.0

1960

2910

3910

4900

5750

300

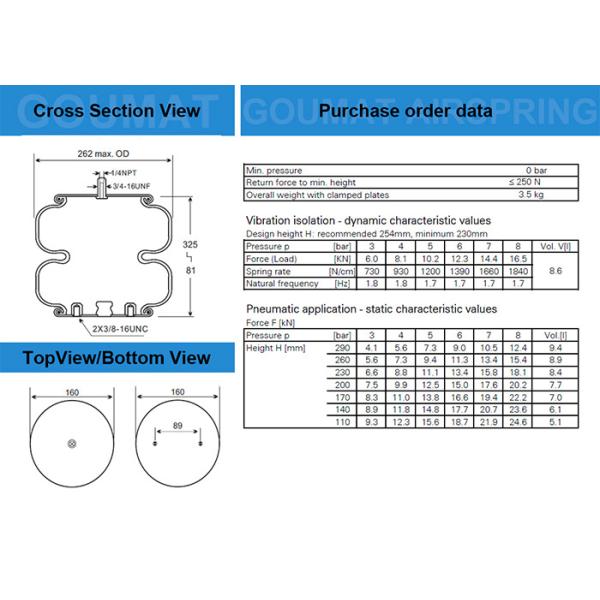

The drawing and data of GUOMAT 2B6927 air spring:

2b9-218 Goodyear Air Spring Industrial Air Spring Rubber Bellows 578923206 for Saf Holland 57006927

2b9-218 Goodyear Air Spring Industrial Air Spring Rubber Bellows 578923206 for Saf Holland 57006927

2b9-218 Goodyear Air Spring Industrial Air Spring Rubber Bellows 578923206 for Saf Holland 57006927
2b9-218 Goodyear Air Spring Industrial Air Spring Rubber Bellows 578923206 for Saf Holland 57006927
