1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle

Categories Cab Air Shock Absorber
Certification: ISO/Ts16949, ISO9001
Brand Name: GUOMAT
Model Number: G3013
Place of Origin: Guangzhou,China
MOQ: 5pcs
Price: USD29.9-39.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Type: Suspension Spring, Gas-Filled
Brand: Guomat or Neutral
OEM: Yes
Material: Rubber and Iron
N.W.: 0.25 Kg
Pressure Ability: 0.2-0.8 M PA
Air Inlet: G1/8
Top Plate Hole/Stud: 3/8-16unc
Bottom Plate Hole/Stud: 3/16 NPT
Top Plate Dia: 81.28 mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle

1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle

Cross OEM:

GUOMAT:G3014

Goodyear NO.:1S3-013 / 1S3013 / 1S3 013

Contitech NO.:SZ37-6 / SZ37 6 / SZ376

Fire stone Air Spring NO.:W02-358-3000 / W023583000 / W02 358 3000


Quick Details:

Type:Suspension Spring
Size:OEM standard
Spring Type:Gas Filled
Status: Brand New
Stock:Yes
Manufacturer Brand:GUOMAT
Application:Auto Suspension Parts
Warranty:12 Months

Descripition and Specifications:

G.Weight: 0.6 KG
PISTON NUMBER: ASC-06-7-017 /
PISTON NUMBER: ASC067017 /
PISTON NUMBER: ASC 06 7 017
Lower Plate OD : 2.40 (in.) / 60.96 MM
Extended Height : 3.60 (in.) / 91.44 MM
Bumper Height : 1.50 (in.) / 38.1 MM
Upper Plate OD : 3.2 (in.) / 81.28 MM
Lower Plate OD: 2.40 (in.) / 60.96 MM
Extended Height: 3.60 (in.) / 91.44 MM
Bumper Height: 1.50 (in.) / 38.1 MM
Upper Plate OD: 3.2 (in.) / 81.28 MM
Air Spring Type: Sleeve
PartType2: Air Spring Sleeve
STATUS: A
NUM_CODE: 800001

Detailed parameters:

Vibration isolation - dynamic characteristic values
Design height H: recommended 2.37 inch
Pressure p [psi]406080100120Vol.V [in.³]
Force (Load) [lbf]2313274395536779
Spring rate [lbf/in]1742413123784429
Natural frequency [Hz]2.82.72.72.62.69

Pneumatic application - static characteristic values
Force F [lbf]
Pressure p [psi]406080100120Vol.V [in.³]
Height H [inch] 3.002.23.144.85.712
Height H [inch] 2.502.73.64.65.66.59.8
Height H [inch] 2.003.14.15.16.27.37.3
Height H [inch] 1.503.44.55.66.77.94.9

Application of 1S3-013 air spring :

This air spring was originally designed to be used in the Harley-Davidson shock, the current amount is relatively large and Halley motor. But there are many customers used in the relatively small force on the small machinery and equipment, there are precision instruments. Many customers respond to its shock absorption effect is very good.We designed G3014 this airbag is completely replaceable the original one 1S3-013.

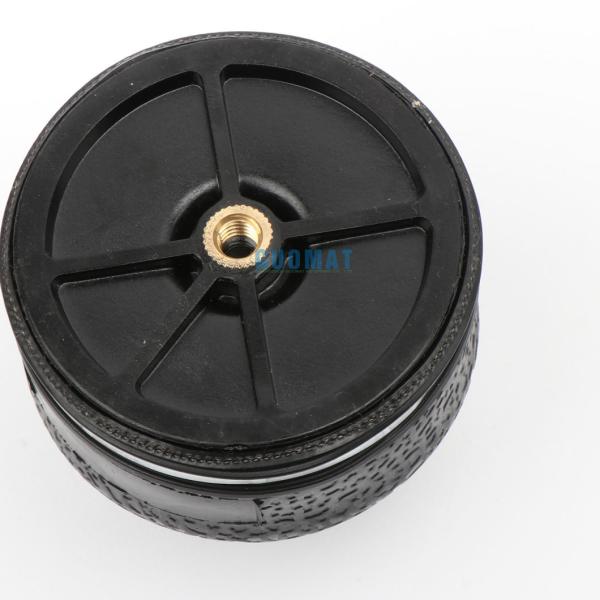

1s3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat for Harley Motorcycle
1s3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat for Harley Motorcycle
1s3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat for Harley Motorcycle
