| Categories | Truck Air Springs |
|---|---|
| Brand Name: | GUOMAT |
| Model Number: | 1T9367 |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Guangzhou,China |
| MOQ: | 5pcs |
| Price: | USD79.9-99.9/PC |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 3-7 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Material: | Rubber + Steel |
| Car Make: | Light Trucks, Trailers |
| Function: | Shock Absorber |
| Quality: | 100% Tested |
| Keywords: | Air Suspension Shock Absorber |
| After-sales Service: | 1 Year |
| Warranty: | 12 Months |
| Part: | Truck Air Suspension |
| Company Info. |
| GUANGZHOU GUOMAT AIR SPRING CO. , LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
| Firestone | W01-358-9367 |
| Firestone | W013589367 |
| Firestone | W01 358 9367 |
| Contitech | 4159NP05 |
| Contitech | 4159 NP 05 |
| Goodyear | 1R12-283 |
| 4159NP05 | 1R12-256 |
Airtech 39367K
Triangle 8505/6367
Watson&Chalin AS-0104/0137
Hendrickson: 003319

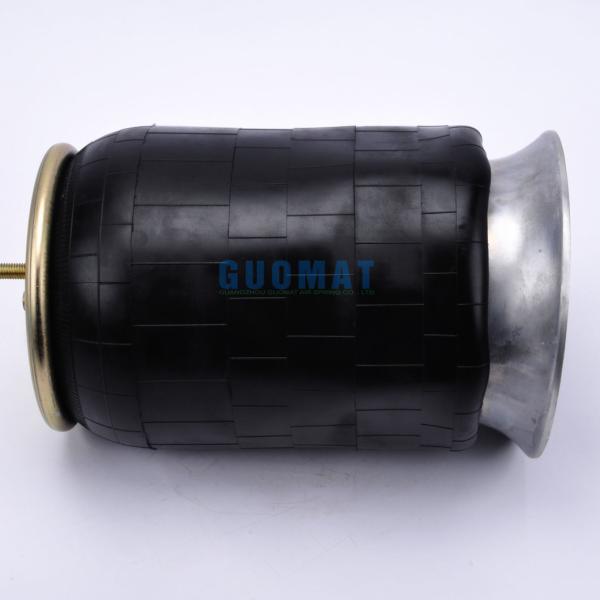

GUOMAT 1T9367 Technical parameters
❶ Screw Bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :1/4NPTF,3/4-16UNF,1/2-13UNC
Screw Center Distance of Top Cover Plate : 157 mm
❸ Cover Plate
Top Cover Plate Diameter: Ø231 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 257 mm
Rubber Bellows Natural Height: 345 mm
❻ Bottom Piston
Bottom Piston Diameter : Ø260mm
Bottom Piston Height :188 mm
❼ Piston Bolt
Piston Bolt Tooth : 4pcs 1/2-13UNC
4 pieces of Bolt
Preventative Maintenance Air Springs
1. Check the air spring outer diameter. Check for irregular damaged
cracks
2. Check the air pipe. Make sure there is no contact between the
air tube and the outer diameter of the air spring.
3. When the air spring is at its maximum outer diameter, check
whether the gap around it is sufficient.
4. Check whether there is accumulation of foreign matter on the
outer diameter of the piston
5. The correct suspension height should be maintained.
6. The height valve (height control valve) plays an important role
in keeping the entire air spring system working as required. Clean,
inspect or replace if necessary.
7. Check whether the shock absorber is installed correctly, and
check whether there is oil leakage and whether the end connecting
parts are damaged.
8. Check the tightening of all mounting hardware (nuts, screws)
W01-358-9367 Firestone Truck Air Spring
| Extended Height | 27.60 inches |
| Compressed Height | 6.20 inches |
| Top Plate Number | 3188 |
| Top Plate Width | 9.00 inches |
| Piston Number | 9653 |
| Piston Width | 10.25 inches |
| GUOMAT NO. | FIRESTONE NO. | GUOMAT NO. | FIRESTONE NO. |
| 1T8966 | W01-M58-8966 | 1T8185 | W01-M58-8185 |
| 1T9760 | W01-M58-9760 | 1T8477 | W01-M58-8477 |
| 1T8474 | W01-M58-8474 | 1T9137 | W01-M58-9137 |
| 1T9039 | W01-358-9039 | 1T9335 | W01-358-9335 |
| 1T6338 | W01-M58-6338 | 1T9781 | W01-358-9781 |
| 1T8878 | W01-358-8878 | 1T8853 | W01-358-8853 |
| 1T9089 | W01-358-9089 | 1T6317 | W01-M58-6317 |
| 1T9361 | W01-358-9361 | 1T7074 | W01-M58-7074 |
| 1T8778 | W01-358-8778 | 1T6360 | W01-M58-6360 |
| 1T9116 | W01-358-9116 | 1T8764 | W01-358-8764 |
| 1T9152 | W01-358-9152 | 1T6251 | W01-358-6251 |
| 1T8053 | W01-358-8053 | 1T8786 | W01-358-8786 |
| 1T8193 | W01-358-8193 | 1T8619 | W01-M58-8619 |
| 1T8502 | W01-M58-8502 | 1T8786 | W01-M58-8786 |
Pictures of Details
|
