4411535 Oil Seal Hitachi Parts IZX200 IZX200LC IZX210F IZX210MF MA200 MA200-G ML250R ZH200-A

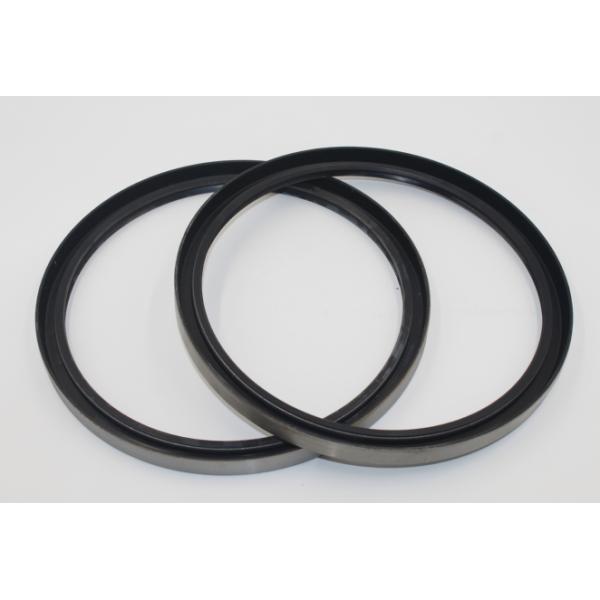

4411535 SEAL;OIL Hitachi parts IZX200, IZX200LC, IZX210F, IZX210MF, MA200, MA200-G, ML250R, ZH200-A

Product name	4411535 SEAL;OIL Hitachi parts IZX200, IZX200LC, IZX210F, IZX210MF, MA200, MA200-G, ML250R, ZH200-A
Brand name	SUNCAR
AppliC-A-Tion	Lip seals are used in low to medium speed rotating appliC-A-Tions such as transmissions and pumps.
SpecifiC-A-Tions for Part No.	4411535
Compatible model	SK
Material	NBR
MOQ	Accept trail order.
Supply alility	2200 sets per months
Characteristic	Ensures extended seal life by creating an oil film around the shaft; materials and complex cross-sectional geometry carefully selected for each specific appliC-A-Tion provide long-term leakage protection.
Condition	100 % new
Payment	Paypal, T/T, Western union, Bank transfer
Paking details	PP bag inside,carton box outside.
Original place	Guangdong province,China
Transport mode	Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.)
Compatible equipment	Wheel loaders ;Pipelayer;crawler loader;Articulated unloading truck; Crawler Bulldozer
CertifiC-A-Tion	ISO9001
AppliC-A-Tion	Cylinder,constuction machinery works,retail
Primary seal material	Rubber
Availability	In stock.
Axial Width	11.91 mm
Style	Oil seal
Construction Type	SBI
Material Nitrile Rubber	(NBR) - 75 Duro
Seal OD	98.58 mm
Shaft OD	76.2 mm

Material Details:

Oil Seal Features:

1). Excellent durability and flexibility of use.

2). The specially designed rope enhances durability and length stability.

3). Excellent heat resistance, oil resistance and abrasion resistance.

4). The display is stable during high-speed rotation.

5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.

6). High power, fast speed, long service life, low distortion and less space.

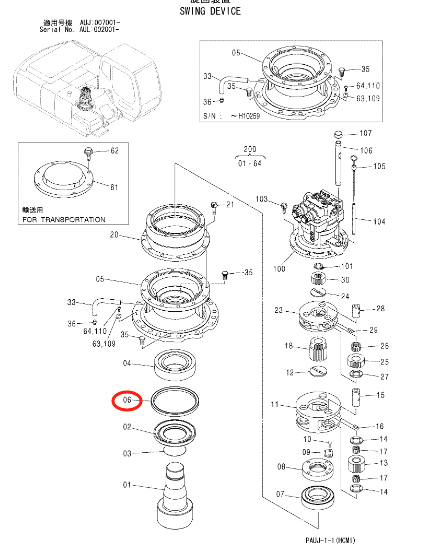

Pos.	Part No	Qty	Parts name	Comments
01.	2044634	[1]	SHAFT;PROP.
02.	3083742	[1]	SLEEVE
03.	A811120	[1]	O-RING
04.	4402481	[1]	BRG.;ROL.
05.	1027617	[1]	HOUSING	Y 1032876
05.	1032876	[1]	HOUSING
06.	4411535	[1]	SEAL;OIL
07.	4402637	[1]	BRG.;ROL.
08.	3086064	[1]	NUT
09.	4411122	[1]	PLATE;LOCK
10.	J901020	[2]	BOLT
11.	1026662	[1]	CARRIER
12.	4187590	[1]	PLATE;THRUST
13.	3084729	[3]	GEAR;PLANETARY
14.	4336929	[6]	PLATE;THRUST
15.	4336925	[3]	PIN	I 4488904
15.	4488904	[3]	PIN
16.	4027427	[3]	PIN;SPRING
17.	4427630	[6]	BRG.;NEEDLE	I 4461644
17.	4461644	[6]	BRG.;NEEDLE
17.	4631475	[6]	BRG.;NEEDLE	I 4461644
18.	3080912	[1]	GEAR;SUN
20.	1025957	[1]	GEAR;RING
