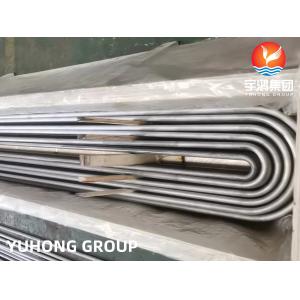

ASME SA213 TP347 TP347H Stainless Steel U Bend Tube ET/HT for Heat Exchanger Tube

ASME SA213 TP347 TP347H Stainless Steel U Bend Tube ET/HT for Heat Exchanger Tube

ASME SA213 TP347 TP347H Stainless Steel U Bend Tube ET/HT for Heat Exchanger Tube
ASME SA213 TP347 TP347H Stainless Steel U Bend Tube ET/HT for Heat Exchanger Tube
Categories Heat Exchanger Tube
Brand Name: YUHONG
Model Number: Heat Exchanger Tube, Stainless Steel U Bend Tube, ASTM A688,ASTM A213 , ASME SA213 , ASTM A249, ASME SA249, B163,B167, B444
Certification: ABS, BV, LR, DNV-GL, GOST, KR, CCS, CE, ASME , ISO9001, ISO14001, ISO 18001
Place of Origin: China
MOQ: 100KGS
Price: negotiable
Payment Terms: T/T, L/C
Supply Ability: 1500 tons per month
Delivery Time: 10days->
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material Grade: TP347 , TP347H
Standard: ASTM A213 , ASTM A269 , ASME SA213
Type: U bend , straight , coil
Surface: Mill Finished, Bright Annealed , Polished
NDT: ET, UT, HT
Contact Now
Company Info.
Yuhong Group Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ASME SA213 TP347 TP347H Stainless Steel U Bend Tube ET/HT for Heat Exchanger Tube

ASME SA213 TP347 TP347H Stainless Steel U Bend Tube ET/HT for Heat Exchanger Tube


Yuhong Group has been dealing with austenitic stainless steel, nickel alloy steel (Hastelloy, Monel, Inconel, Inconel) seamless and welded pipes for 32 years, with sales of more than 80,000 tons of steel pipes annually. Our customers have covered more than 65 countries, such as Italy, UK, Germany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Australia, Poland, France, .... Our group of subsidiaries and factories have been certified by: ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.


Grade (UNS)

304/304L/304H (1.4301/1.4306/1.4948); 316/316L (1.4401/1.4404);

316Ti (1.4571)321 (1.4541); 309S (1.4833); 310S (1.4845);

317L (1.4438); 321H (1.4878); 347H (1.4550)2205 (1.4462), S31803, 2507, 904L

Outside Dia:12.7mm - - 38.1mm (0.625" - - 1.252")
Wall thickness:0.89 - - 2.77mm
Standards (Norm):ASTM A688 Standard for U bend Stainless steel Tube; ASTM A566
EN 10216 - 5, DIN 17456, DIN 17458
GB/T 14975, T 14976, T 13296, GB 5310
ASTM A213, A 269, A312, A511, A789, A790
JIS G3459, G3463
GOST 9940, GOST 9941


Application:Widely Used In Heat - exchanger SystemsBending Radius:1.5*OD - 1500mm
Heat Treatment:

Stress Relieved After U - Bending

(Bending Area Plus 300MM For Each Leg)

Material Grade:

304/304L/304H, 316/316L, 316Ti, 321,

309S, 310S, 317L, 321H, 347H, 2205,

S31803, 2507, 904L

Outer Diameter:12.7mm - 38.1mmStandard:

ASTM A312, ASTM A269, ASME SA213,

ASTM A249, ASME SA249, ASTM A789,

EN10216 - 5 A106/A1016M

Type:Stainless Steel U Bends/Stainless Steel U TubeWall Thickness:0.89mm - 2.77mm

Corrosion TestConducted only when specially requested by the client
Chemical AnalysisTest done as per required quality standards
Destructive / Mechanical TestingTensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat testsCarried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current TestingDone to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure TestTo check any evidence of air leakage
Visual InspectionAfter passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
