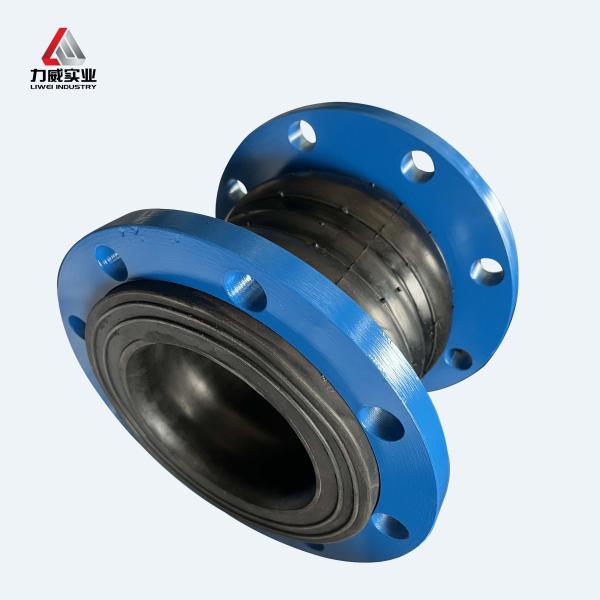

10" 12" 8 Inch Double Sphere Flexible Rubber Joint With Stainless Steel Flange Material

Categories Double Sphere Flexible Rubber Joint
Brand Name: liwei
Model Number: DN15-DN4000
Place of Origin: Henan, China
Certification: ISO9001, TUV, WRAS, CO, MTC, PL, IV etc
MOQ: 1 set
Price: Price Negotiable
Packaging Details: Inner plastic film,outer wooden case, if multiple compensators are packed in one case, we will use steel frame to fix it.
Delivery Time: After payment 15-30 working days
Payment Terms: T/T, Western Union, L/C, D/A, MoneyGram
Supply Ability: 100000 Pieces per Month
Product name: Double Sphere Flexible Rubber Joint
Size: DN25-DN4000
Working Temperature: -10℃~+80℃
Connection Type: Flange
Application: Air, Water, Sewage, Acid, Oil, Etc.
Flange material: Carbon Steel Galvanized,Stainless Steel Etc.
Corrosion Resistance: Yes
Material: NR,NBR,SBR,EPDM,FKM Etc.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10" 12" 8 Inch Double Sphere Flexible Rubber Joint With Stainless Steel Flange Material

Customization Double Sphere Flexible Rubber Joint with Stainless Steel Flange Material

Product Description:

The Double Sphere Flexible Rubber Joint consists of outer rubber, inner rubber, framework layer, and reinforcing bar and flange. Relying on rubber’s special performances as long range elasticity, air impermeability, medium, climate and radiation resistance, rubber expansion couplings can reduce the vibration and noise of pipeline, and can be caused by the temperature change of heat bilges cold shrink compensation effect.


Product structure:

NoNameMaterialRemarks
1Outer/inner rubberEPDM,NR,NBR,PTFE,BR,CR,BR+CR,FKM,SyloputeSelect different materialsaccording to the media
2FrameNylon cord fabricthe density and number oflayers determine the pressure
3Pressurized ringSteel wire strandPrevent pressure bearing offdeformation from being pulled
4Flange

Stainless steel,

carbon steel,ductile iron.

Choose different materials according to your requirements

Advantages:

  • Appearance: The external surface is smooth and free of defects such as burrs, rust, pores, slag inclusions, cracks, mechanical damage, etc.
  • Welding: The weld seam should be flat, without pores, cracks, slag inclusions, and welding omissions. The roundness of the flange should comply with relevant standards.
  • Anti corrosion: The flange is pickled and rust removed, and then subjected to anti-corrosion treatment.
  • Product packaging: Measures such as rainproof, moisture-proof, rust proof, and shockproof should be taken. Our company generally uses plastic cloth, woven fabric and straw rope packaging, without recycling; Or packaged according to the demand side's requirements.

Technical Parameters:

Diameter
DN
Length
mm
Axis displacementRadial
displacement
Deflexion
displacement
TYPE 1TYPE 2
mminchExtensionCompressionExtensionComgressionTYPE 1TYPE 2TYPE1TYPF 2
3211/4"165305045±7.5°
4011/2”165305045±7.5°
502"165305045±7.5°
6521/2”175305045±7.5°
803"175305045±7.5°
1004"225355045±7.5°
1255"225355045±7.5°
1506"225355045±7.5°
2008"3253560
25010"3253560
30012"3253560
35014"3253560
40016"4004060
45018"400657070±12°
50020"400657070±12°
60024"400707575±12°
70028"400707575±12°
80032"450707575±12°
90036"450707575±12°
100040"450758070±12°
120048"500758070±10°
140056"500758070±10°
160064"500758070±10°
180072"500808565±10°
200080"550808565±10°
220088"550808565±10°
240096"550808565±10°
2600104"550808565±10°
2800112"550808565±10°
3000120"550808565±10
• Special size and length can be customized for you.


Our Services:

  • Delivery inspection (pressure test, specification test, material, quantity, packing).
  • The quality is guaranteed for 12 months, supportthird-party testing.
  • Free solutions and drawings can be provided.
  • A well-trained and disciplined professional packaging team.
  • 24h online service, quick response before and after sales.
  • Support online factory inspection
  • On-time delivery
  • Free samples can be provided

FAQ:

Q1: What is the model number range for the liwei Double sphere flexible rubber joint?

A1: The model number range for the liwei Double sphere flexible rubber joint is from DN15 to DN4000, accommodating a wide variety of pipeline sizes and requirements.

Q2: Where is the liwei Double sphere flexible rubber joint manufactured?

A2: The liwei Double sphere flexible rubber joint is manufactured in Henan, China, ensuring high-quality production standards.

Q3: What certifications does the liwei Double sphere flexible rubber joint have?

A3: The liwei Double sphere flexible rubber joint is certified by multiple agencies including ISO9001, TUV, WRAS, CO, MTC, PL, IV, etc., ensuring compliance with international quality and safety standards.

Q4: What is the minimum order quantity for the liwei Double sphere flexible rubber joint?

A4: The minimum order quantity for the liwei Double sphere flexible rubber joint is 1 set, allowing for both small and large orders based on your specific needs.
