| Categories | Medium Duty Caster |
|---|---|
| Model Number: | OY2-R125-SLZ |
| Place of Origin: | China |
| MOQ: | 2000pcs |
| Price: | negotiable |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 20000pcs per day |
| Delivery Time: | 5-7 working days |
| Packaging Details: | stardard export carton |
| guarantee: | one year under normal condition use |
| material: | rubber wheel |
| color: | blue |
| diameter: | 125mm |
| plate type: | swivel casters |
| bearing: | double ball bearing |
| surface treatment: | galvanized zinc |

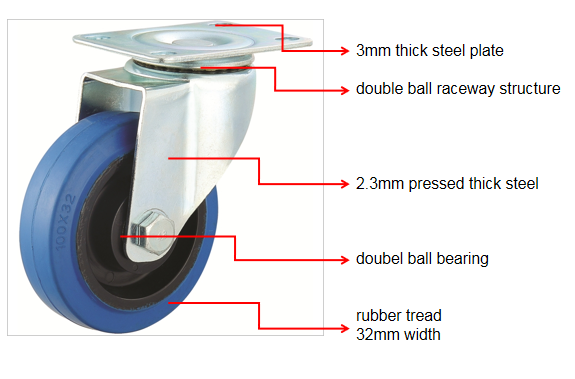

Description:
Diameter:75mm/100mm/125mm
Width:32mm
Mounting hole distance :75*45mm
Top plate size :95*65mm
Steel bracket thickenss :2.3mm
Surface treament:zinc coated bracket
Bearing : precision double ball bearing
Features :
1 Non marking rubber tread rolls quietly and smoothly,protects
floors from damage
2 Galvanized metal swivel plate ,anti-corrosion and not easy to
rust
3 Plate mounted installation requires 4 screws (not included )
4 Thick steel bracket and precision double ball bearing support 4
casters to load 300kgs
5 rubber tread is good for cement floor,hardwood floor and tile
floor
Widely used for tool box,dollies,office equipment ,hand truck trolley,dolly
cart,furniture,light duty equipment and laundry equipment
Dimensions
| Picture | Item No. | Wheel material | Wheel diameter | Tread width | Load capacity | Setting height | Mounting hole | Top plate size | Bracket thickness |
![]() | OY2-R75-SLZ | rubber | 75mm | 32mm | 90kg | 105mm | 75*45mm | 96*65mm | 2.3 |
| OY2-R100-SLZ | rubber | 100mm | 32mm | 100kg | 128mm | 75*45mm | 96*65mm | 2.3 | |
| OY2-R125-SLZ | rubber | 125mm | 32mm | 110kg | 149mm | 75*45mm | 96*65mm | 2.3 |

|
