| Categories | Medium Duty Caster |
|---|---|
| Model Number: | OY2-FG125-FBZ |
| Place of Origin: | China |
| MOQ: | 2000pcs |
| Price: | negotiable |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 20000pcs per day |
| Delivery Time: | 5-7 working days |
| Packaging Details: | stardard export carton |
| guarantee: | one year under normal condition use |
| material: | fiberglass |
| temperature: | 300 degree |
| wheel color: | red brown |
| wheel diameter: | 125mm |
| tread width: | 32mm |
| load: | 140kgs |
| bearing: | double ball |
| plate type: | rigid wheels |
| surface treatment: | zinc plated steel |

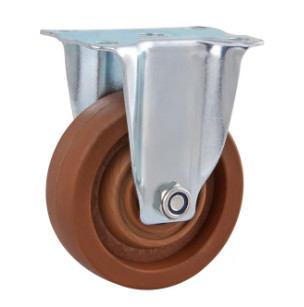

| Product name | high temperature castors |
| Quality warranty | 1 year under normal condition use |
| Tread material | Fiber glass |
| Bracket material | pressed steel |
| Diameter | 5 inch |
| Load capacity | 110kgs |
| Tread width | 32mm |
| Installation height | 149mm |
| Mounting size | 75*45mm |
| Top plate size | 95*65mm |
| Bracket thickness | thick 2.3mm |
| Application | bakery rack,oven and other high temperature equipments |
Description:
Wheel size:125mm diameterX32mm tread width
Plate hole centers:75*45mm
Swivel top plate :95*65mm
Load capacity:220 LBS
Bearing : double ball ,carbon steel material to bear high temperature
Finish: Zinc plated steel to resist corrosion
Technical parameters
| Picture | Item No. | Wheel material | Wheel diameter | Wheel width | Load capacity | Setting height | Hole spacing | Top plate size | Bracket thickness |
![]() | OY2-FG75-SBZ | fiberglass | 75mm | 32mm | 90kg | 105mm | 75*45mm | 96*65mm | 2.3 |
| OY2-FG100-SBZ | fiberglass | 100mm | 32mm | 100kg | 128mm | 75*45mm | 96*65mm | 2.3 | |
| OY2-FG125-SBZ | fiberglass | 125mm | 32mm | 110kg | 149mm | 75*45mm | 96*65mm | 2.3 |
|
