| Categories | Medium Duty Caster |
|---|---|
| Model Number: | OY2-PU63-SBZ |
| Place of Origin: | China |
| MOQ: | 2000pcs |
| Price: | negotiable |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 20000pcs per day |
| Delivery Time: | 5-7 working days |
| Packaging Details: | stardard export carton |
| plate type: | 2.5inch polyurethane castor with swivel top plate |
| application: | trolley wheel |
| guarantee: | one year under normal condition use |
| material: | black polyurethane wheel |
| diameter: | 2.5 inch/3 inch / 4inch / 5inch |
| load capacity: | 80kg/110kg/140kg/150kg |
| hole spacing: | 75*45mm |
| top plate: | 95*65mm |
| bearing: | precision single ball |
| surface treatment: | zinc plated |

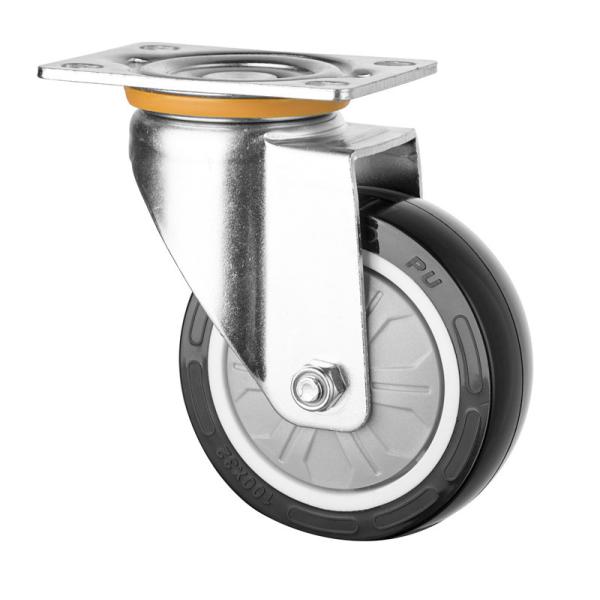

2.5 inch medium duty PU caster single ball bearing
Description:
Diameter:65mm(2 1/5 inch ), 75mm(3 inch), 100mm(4 inch) or 125mm(5 inch) available
Material:black polyurethane on PP core
Wheel tread width: 32mm ( 1 1/4 inch )
Load capacity:80kgs-150kgs
Mounting hole :75*45mm
Plate size :95*65mm
Total height:95mm/108mm/132mm/158mm
Bearing: precision double ball 6001
Surface treatment: zinc plated
Widely used for trolley,stereo equipment,exhibition equipment, tool boxes, equipment stands, mobile workstations, cabinets, dollies, mobile workstations ,etc. We will be good choice for the convenience of life.
Technical parameters
swivel top plate caster -black PU caster wheel | ||||
| Model | OY2-PU63-SBZ | OY2-PU75-SBZ | OY2-PU100-SBZ | OY2-PU125-SBZ |
| Caster diameter | 63mm | 75mm | 100mm | 125mm |
| Tread width | 32mm | 32mm | 32mm | 32mm |
| Load capacity | 80kg | 110kg | 140kg | 150kg |
| Total height | 95mm | 108mm | 132mm | 158mm |
| Hole spacing | 75*45mm | |||
| Top plate size | 95*65mm | |||
| Bearing | precision single ball bearing | |||
| Finish | zinc plating | |||
swivel top plate with brake caster-black PU castors | ||||
| Model | OY2-PU63-BBZ | OY2-PU75-BBZ | OY2-PU100-BBZ | OY2-PU125-BBZ |
| Caster diameter | 63mm | 75mm | 100mm | 125mm |
| Tread width | 32mm | 32mm | 32mm | 32mm |
| Load capacity | 80kg | 110kg | 140kg | 150kg |
| Total height | 95mm | 108mm | 132mm | 158mm |
| Hole spacing | 75*45mm | |||
| Top plate size | 95*65mm | |||
| Bearing | precision single ball bearing | |||
| Finish | zinc plating | |||
fixed caster -black polyurethane wheel | ||||
| Model | OY2-PU63-FBZ | OY2-PU75-FBZ | OY2-PU100-FBZ | OY2-PU125-FBZ |
| Caster diameter | 63mm | 75mm | 100mm | 125mm |
| Tread width | 32mm | 32mm | 32mm | 32mm |
| Load capacity | 80kg | 110kg | 140kg | 150kg |
| Total height | 95mm | 108mm | 132mm | 158mm |
| Hole spacing | 75*45mm | |||
| Top plate size | 95*65mm | |||
| Bearing | precision single ball bearing | |||
| Finish | zinc plating | |||

|
