| Categories | Ustc Litz Wire |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Place of Origin: | China |
| MOQ: | 10kg |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Name: | 38 AWG Enameled Stranded Wire Silk Covered Litz Wire |
| Diameter: | 0.1mm |
| Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper |
| Insulation: | Enamel |
| Rated Temperature: | 155/180 |
| Key word: | 38 AWG Enameled Stranded Wire Silk Covered Litz Wire |
| No. of strands: | 75 |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

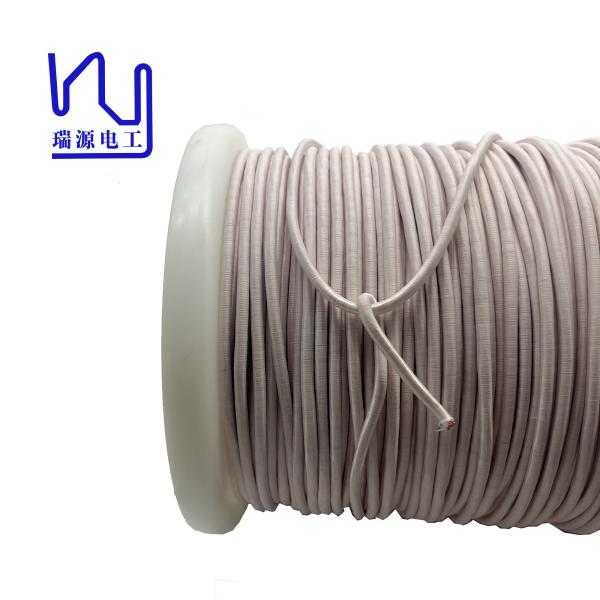

38 AWG Enameled Stranded Wire Silk Covered Litz Wire
The single wire is solderable polyurethane enamel copper conductor.
0.1mm*75 strands
Silk cover an extra layer of insulation and protection to wires,
making it ideal for applications that require enhanced signal
shielding and noise reduction.
Description Conductor diameter*Strand number | 1 USTC- F 0.10*75 | |
Single wire | Conductor diameter( mm) | 0. 100 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.009 | |
| Maximal overall diameter ( mm) | 0. 140 | |
| Thermal Class(℃) | 155 | |
Strand | Strand number | 75 |
| Pitch(mm) | 29± 5 | |
| Stranding direction | S | |
| Category | Nylon |
| Material specs( mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%)or thickness( mm), mini | 0 02 | |
| Wrapping direction | S | |
| Max O. D ( mm) | 1.33 |
| Max pin holes faults/6m | 20 | |
| Max resistance ( Ω/ Km at20℃) | 31.75 | |
| Mini breakdown voltage(V ) | 2000 | |
Key word | 38 AWG Enameled Stranded Wire Silk Covered Litz Wire | ||
|
