40G 2W RF Frequency Antenna Power Divider Female Connector 2.92mm

Categories RF Power Splitter
Brand Name: Vinncom
Model Number: VN-PD-40G-2.92-2W
Certification: RoHS/ISO9000
Place of Origin: China
MOQ: 5pcs
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs per day
Delivery Time: 2-4weeks
Packaging Details: foam+box
Operating Frequency ( GHz ): DC-40G
Impedance( Ohm ): 50
Input VSWR: ≤1.50
Output VSWR: ≤2.50
Insertion loss: ≤7.5
Average Power (Watt max.): 2W
Isolation(dB): ≥9
Amplitude Balance(dB): ±0.5
Phase Balance: ±5°
Interface: 2.92mm Female
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

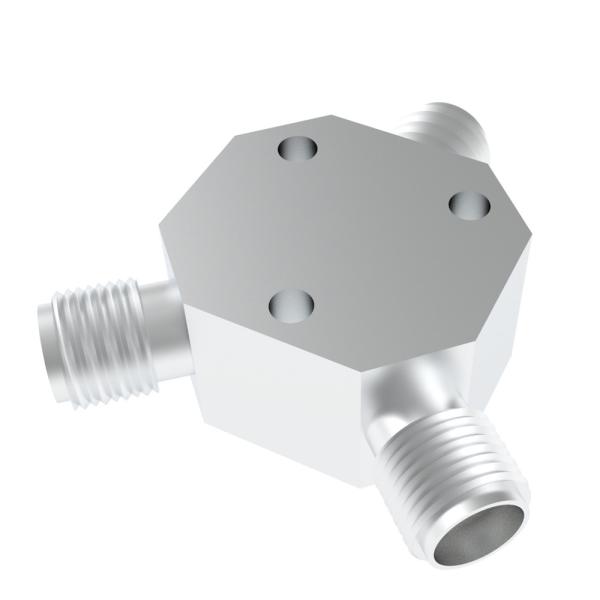

40G 2W RF Frequency Antenna Power Divider Female Connector 2.92mm

40G 2W 2 Way Resistive Power Divider 2.92mm Female Connector


  • Good VSWR
  • Wide band
  • High isolation

Part NumberVN-PD-40G-2.92-2W
Operating Frequency ( GHz )DC-40G

Impedance( Ohm )

50

Input VSWR≤1.50
Output VSWR≤2.50
Insertion loss≤7.5
Average Power (Watt max.)2W

Isolation(dB)

≥9

Amplitude Balance(dB)

±0.5

Phase Balance±5°

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

2.92mm Female
Size17.5*15.8*10mm

Dimension Tolerance(mm)

±0.5

Mounting

3-Φ2.2mm through-hole
