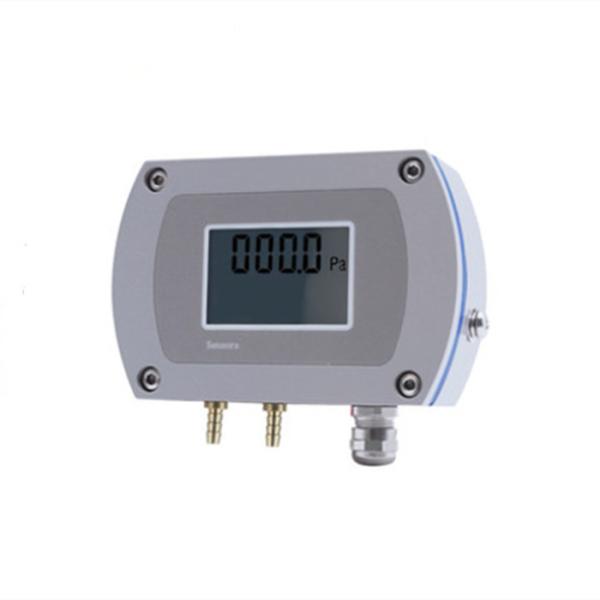

Air Differential Pressure Transmitter Stack Flow Water Pressure Sensor

Cheap Air Differential Pressure Transmitter Stack Flow Water Pressure Sensor

Description 4-20ma air differential pressure transmitter stack flow

This series of micro differential pressure transmitter adopts piezoresistive pressure sensor chip, and uses the film resistance on the substrate to carry out zero point correction, zero point temperature compensation and sensitivity compensation. The high-performance and stable silicon chip package makes it high static pressure resistance, anti-interference, stable and reliable. Therefore, the product can be applied to the micro differential pressure field combination of various gas measurement. It is an ideal micro differential pressure measuring instrument in the field of industrial automation.

Detailed Images 4-20ma air differential pressure transmitter stack flow


Specification 4-20ma air differential pressure transmitter stack flow

Measuring medium: gas (compatible with contact material, humidity < 90%, no condensation)

Overall material: shell ABS engineering plastic

Diaphragm silicon chip (contact)

Silicone for impulse pipe (contact)

Φ 6 pagoda mouth H59 copper (contact)

Cable locking head nylon (locking wire diameter 5-8mm)

LCD display without backlight

Range:

Pressure mode: differential pressure

Output signal: 4-20mA, RS485

Power supply voltage: 12-36vdc

Accuracy class: 0.5% FS (range ≥ 1kPa)1% FS (range < 1kPa)

Working conditions: medium temperature - 40-100 ℃

Ambient temperature - 40-85 ℃

Temperature compensation: - 10 ~ 60 ℃

Seismic performance: 10g (20... 2000Hz)

Response frequency: ≤ 50Hz

Stable performance: ± 0.3% FS / year (range ≥ 1kPa)± 0.5% FS / year (range < 1kPa)

Temperature drift: ± 0.03% FS / ℃ (within the temperature compensation range)

Overall weight: with display ≈ 150g, without display ≈ 130g

Protection grade: IP65

Upper power limit: current type ≤ 0.02us (W)

Digital type ≤ 0.015us (W)

Note: US = supply voltage

Load characteristics: current type load ≤ {(us-7.5) ÷ 0.02 (US =supply voltage)} Ω

Features 4-20ma air differential pressure transmitter stack flow

1.Integrated chip, wide voltage power supply

2.Frequency intercept design, strong anti-interference ability and lightning protection

3.Current limiting, voltage limiting, reverse connection protection (current limiting output)

4.High precision and stability

5.Self correcting zero point
