| Categories | Oil Pressure Sensor |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | YD31 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 pc |
| Price: | USD28-USD40/PC |
| Payment Terms: | T/T, Western Union, D/A, D/P |
| Supply Ability: | 500PCS/W |
| Delivery Time: | 7 days |
| Packaging Details: | Carton box |
| Item: | Compact 4-20mA Smart Water Pressure Sensor Transmitter Transducer |
| Range: | -100kpa~0~100mpa |
| Input power: | 24VDC |
| Output signal: | 4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire) |
| Accuracy: | 0.2%FS, 0.5%FS |
| Pressure interface: | G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request) |
| Protection: | IP65 |
| Overpressure: | 150%FS |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

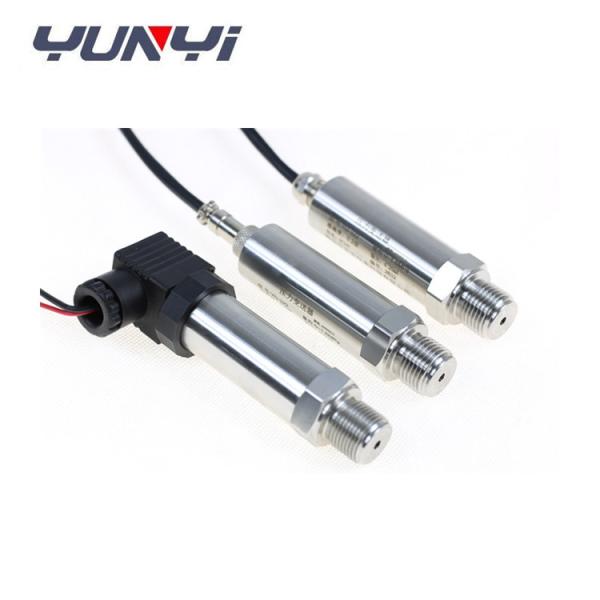

Compact 4-20mA Smart Water Pressure Sensor Transmitter Transducer
Description 4-20mA Smart Water Pressure Sensor
| Measure Range | -100kPa~0.....10kPa...100MPa |
| Pressure Type | gauge (G), absolute (A), sealed gauge (S) |
| Overpressure | 150%FS |
| Accuracy | 0.2%FS, 0.5%FS |
| Output signal | 4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire) |
| Supply | 12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc |
| Temp.coefficient of zero | ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
| Temp.coefficient of span | ±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
| Compensated temperature range | -10~+70°C |
| Operating temperature range | -40~+125°C |
| Storage temperature range | -40~+125°C |
| Insulating resistance | ≥100MΩ@100Vdc |
| Load resistance | R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output) |
| Electrical interface | DIN43650, option 1.5m cable connetion |
| Pressure interface | G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request) |
| Material of pressure membrane | 316L stainless steel |
| Material of housing | 1Cr18Ni9Ti stainless steel |
| Response time(10%~90%) | ≤10ms |
| Shock/impact | 10gRMS,(20~2000)Hz/100g,11ms |
| Protection | IP65 |
|
