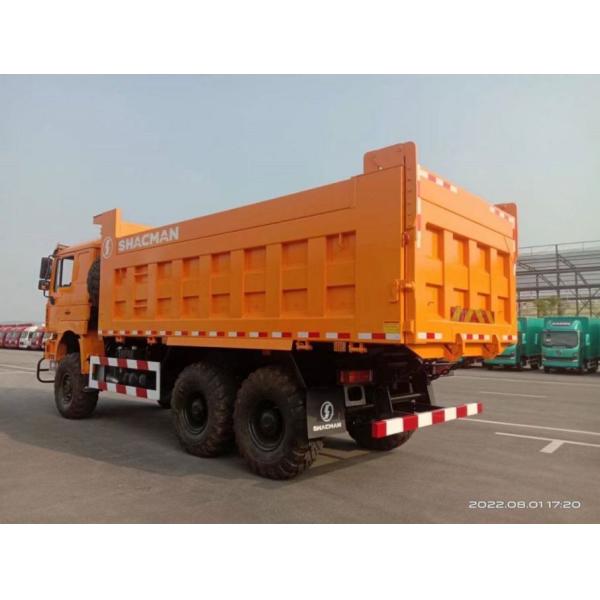

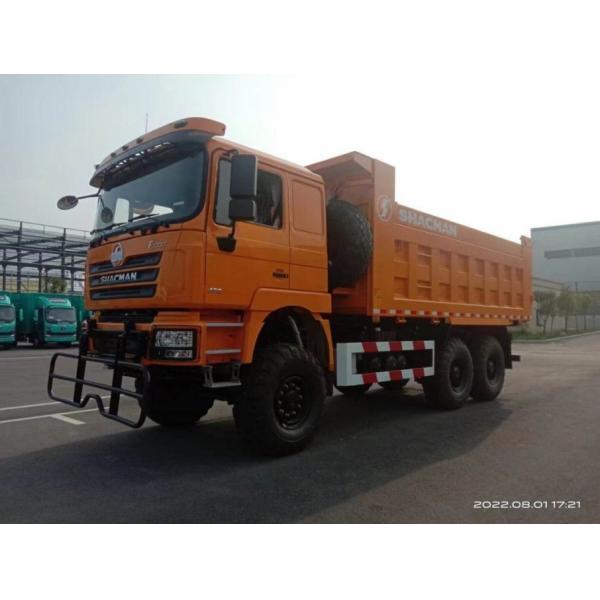

SHACMAN X3000 Dump Truck 8x4 12 tries 380Hp Euro II super

Categories Heavy Dump Truck
Brand Name: SHACMAN
Model Number: F3000
Certification: ISO 9001/CCC
Place of Origin: Shaanxi,Xian
MOQ: 1
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Delivery Time: 45 working days
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Modle: SX33156T366
Engine: WP10.380E22
Transmission: 12JSD200T-B+QH50
Axle: MAN 9.5T /2*16 T Double-stage,speed ratio-4.769
Wheel base: 1800+3575+1400
Tire: 12.00R20
Fuel tank: 300L
Clutch: φ430 Diaphragm spring clutch
Air inlet: Ordinary air filter
Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Cabin: Medium-length flat top
Color: Neon Red/Green Mountain Green/Star and Moon Blue/Aurora White/Klein Blue/Brandy
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SHACMAN X3000 Dump Truck 8x4 12 tries 380Hp Euro II super

SHACMAN X3000 Dump Truck 8x4 12 tries 380Hp Euro II super


Detailed Product Description

Model: SX33156T366
Drive type:8x4
Weight: Gross Vehicle Weight≤90
Engine Brand: WEICHAI
Engine Model: WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B+QH50


Tipper Dump truck Parameters

ModelSX33156T366
Drive type8x4
WeightGross Vehicle Weight≤90
DimensionsWheelbase/(mm)1800+3575+1400
PerformanceMaximum speed/(km/h)45~60/80
Ground clearance>314
EngineBrandWEICHAI
ModelWP10.380E22
Power/(kw/HP)279kw / 380Hp
Maximum torque / (N.M)/rpm1600 N·M
Displacement/(L)9.726 L
Emission standardEuro II
Gear boxBrandFAST
Model12JSD200T-B+QH50
ClutchTypeφ430 Diaphragm spring clutch
CoolingTypeDomestic heat sink
Air inletTypeOrdinary air filter
BrakesTypeDrum brake
Service brakeDouble circuit air brake
Park brakeRear wheel spring brake
Auxiliary brakeWEVB engine exhaust brake
SteeringTypeZF8098 technology, circulating ball steering machine
ChassisTypeParallel trapezoidal frame with variable section
Dimensions/(mm)850×320(8+7+8)
SuspensionFrontMulti-layered leaf springs with 4 Main springs+4 U Bolts
RearMulti-layered leaf springs with 4 Main springs+4 U Bolts
AxlesBrandHANDE
Front axle9.5T front axle MAN technology
Rear axle16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
TiresType12.00R20
Fuel tankTank capacity/(L)300L Aluminum tank
ElectricsType24V
Battery165Ah Maintenance-free battery
CabTypeSHACMAN X3000 Medium-length flat cab
EquipmentHydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window shaker, ordinary rearview mirror, 165Ah maintenance-free battery, SHACMAN logo, full English logo.
Overview
Configuration: The SHACMAN X3000 Dump Truck has an 8x4 configuration, meaning it has eight wheels with four of them powered. This configuration provides excellent traction and load-carrying capacity, making it suitable for challenging terrains and heavy loads.
Engine: The truck is equipped with a powerful 380 horsepower engine. This engine provides ample power for hauling heavy loads and ensures good acceleration and overall performance.
Dumping Capacity: The truck has a large hauling capacity, allowing it to carry significant amounts of material. With its 12 tires, it can handle substantial loads and is well-suited for construction and mining applications.
