| Categories | Heat Exchanger Tube Bundle |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | Tube Bundle |
| Certification: | ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | 0~1000000 USD |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | 30SETS/MONTH |
| Delivery Time: | Depends on quantity |
| Packaging Details: | Export Standard |
| Product Name: | Tube Bundles |
| Standard: | ASTM, ASME |
| Material: | Stainless steel, Alloy Steel, Copper Alloy |
| Size: | custom as per buyer's drawing requirements |
| Application: | Tubular Heat Exchanger, Chemical Production ,Petroleum Industry, Energy Power, Pharmaceutical |
| High Light: | Heat Excahnger Tube Bundles |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

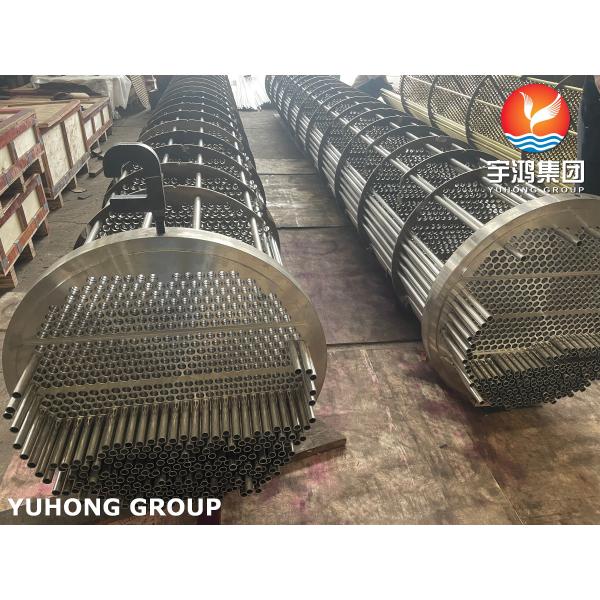

Stainless Steel Tube Bundles 316L Heat Exchanger Great heat transfer performance
What is tube bundle?
In a shell-and tube-exchanger the tube bundle is enclosed in a
cylindrical shell, through which the second fluid flows.
A tube bundle is a set of tubes in a shell-and-tube heat
exchanger.The tube plate at both ends of the tube bundle and the
shell into one, simple structure, but only for hot and cold fluid
temperature difference is not large, and the shell process does not
require mechanical cleaning when the heat transfer operation. When
the temperature difference is slightly larger and the shell
pressure is not too high, can be installed in the shell with
elastic compensation ring to reduce thermal stress.
Equivalent Grades of SS316
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Chemical properties of SS316
| Element | SS 316 | SS 316L |
| C | 0.08 max | 0.035 max |
| Mn | 2.0 max | 2.0 max |
| Si | 1.0 max | 1.0 max |
| P | 0.045 max | 0.045 max |
| S | 0.030 max | 0.030 max |
| Cr | 16.00 - 18.00 | 16.00 - 18.00 |
| Mo | 2.00 - 3.00 | 2.00 - 3.00 |
| Ni | 11.00 - 14.00 | 10.00 - 14.00 |
| Fe | 67.845 min | 68.89 min |
| Element | SS 316 | SS 316L |
| Density | 8.0 g/cm3 | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) | 1399 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 | Psi – 30000 , MPa – 205 |
| Elongation | 35 % | 35 % |
