5Kv Photovoltaic Solar System 398KW Photovoltaic Power Generation System

Categories	PV Solar Power Systems
Certification:	API, ISO, CB, CE
Model NO.:	Hybrid Energy Storage Systems
Application:	Home, Industrial, Commercial
Specification:	Mini, Standard specification or customized
Certificate:	CE CB SGS
DC Disconnect Switch:	1000VDC 16A
Output Voltage (V):	Customized
Mounting Type:	Ground Mounting Roof Mounting
Mounting System:	Pitched Roof for Standards
OEM or ODM:	Accept
AC Disconnect Switch:	1000VDC 20A
Hybrid Inverter:	3kw Single Phase
Load Power (W):	3kw, 8kw, 6kw, 5kw, 10kw
Controller Type:	MPPT
Battery Type:	Lead-Acid, Lithium Ion, Hhcn-0001
Output Frequency:	Customized
Product Name:	off Grid Solar System
Solar Panel Type:	Monocrystalline Silicon, Polycrystalline Silicon
Keywords:	Hybrid Energy Storage System
Transport Package:	Standard Packaging or Customized
Trademark:	HTONETECH
Origin:	Beijing, China
Supply Ability:	50000000pieces/Year
Shipping Cost:	To be negotiated\| Freight Cost Calculator
After-sales Service:	Yes
Warranty:	2year
Condition:	New

Contact Now

Add to Cart

Company Info.

Huatong Yuanhang (Beijing) Technology Development Co., Ltd. （HTONETECH）

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

5Kv Photovoltaic Solar System 398KW Photovoltaic Power Generation System

Product Description

HTONETECH 5Kv Off Grid Solar System Complete Kit Wholesalers China 5KW 398KW Solar Panel Half Cut Mono 900Kva Diesel Generator Solar Energy System 1500 Kw

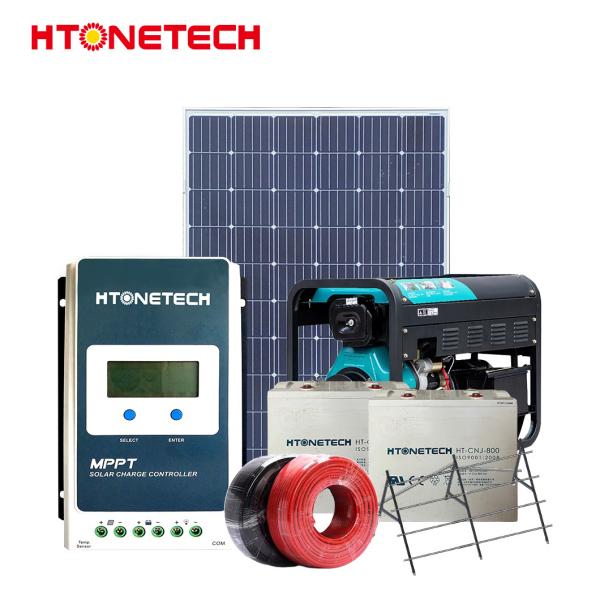

Htonetech 3kw 5kw off Grid Solar System Complete Kit China 5000W 45039W Mono Perc Solar Panels Single Face 9.6kw Diesel Generator Solar Energy System 1kw

System advantages:

HTONETECH off-grid power supply system, 10,000 sets of successful experience, customized services, one-stop shopping, and products meet CE certification.

1. No risk of depletion;
2. Safe and reliable, no noise, no pollution emissions, absolutely clean
3. Not limited by the geographical distribution of resources, can take advantage of the advantages of building roofs;
4. Generate and supply power on-site without consuming fuel and erecting transmission lines;
5. Energy quality is high;
6. The construction period is short, and the time spent in obtaining energy is short.

Meet the 24H operation of small equipment of 60-100W, and the operation of 3 days in cloudy and rainy days.

A photovoltaic (PV) solar system with a capacity of 398 kW refers to a solar power installation that can generate a maximum power output of 398 kilowatts.

Here are some key points to understand about such a system:
Photovoltaic System: A photovoltaic system converts sunlight into electricity using solar panels made up of photovoltaic cells. These cells generate direct current (DC) electricity when exposed to sunlight.
System Capacity: The capacity of a solar system is measured in kilowatts (kW) or megawatts (MW) and represents the maximum power output the system can produce under optimal conditions. In this case, the system has a capacity of 398 kW.
Power Generation: The actual electricity generated by a photovoltaic system depends on various factors such as sunlight availability, panel efficiency, temperature, and shading. The 398 kW capacity indicates the system's maximum potential, but the actual power output may vary.

BLACK MONO SOLAR PANELS

Peak Power Watts:280W(SP280M-60)
Maximum Power Voltage:31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current:9.33A
Dimensions:1650x992x35mm(65.0x39.1x1.38inches)
Weight:18.6 kg (41.0 b)

SOLAX HYBRID INVERTER &DATA LOGGING STICK

Max.DC Input Power.3KW/3.7KW/4.6KW/5KW
Max.DCInput Voltage: 600V
MPPT Voltage Range: 120-550V
Rated Grid Voltage: 230V(EU)
Warranty: 5 Years (STD) 10 Years (Optional)
Wifi Stick For STD, Lan & GPRS Optional

TRIPLE-POWER LITHIUM BATTERY

Capacity(kWh): 4.5/6.3
Operating Voltage(Vdc): 85-118
Max. charge/discharge Current(A):30A
Charge/Discharge Current (A): 25A
Standard Power(kW):25
Maximum Power(kW):3
T-BAT system safety: CE, FCC, RCM, TUV (IEC 62619)

PV MOUNTING SYSTEM

Mounting Rail & Rail Splice Kit: Al6005 & SUS304Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger BoltOptional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

Components	SP3KW-HY	SP3.7KW-HY	SP4.6KW-HY	SP5KW-HY
280W Mono Solar Panel	12 Piece	14 Piece	18 Piece	20 Piece
Dc Disconnect Switch	1 Piece	1 Piece	2 Piece	2 Piece
Hybrid Inverter	X1-HYBRID-3.0T	X1-HYBRID-3.7T	X1-HYBRID-4.6T	X1-HYBRID-5.0T
Triple Power Battery	4.5 kWh	4.5 kWh	6.3 kWh	6.3 kWh
Dc Cable 4mm2	100 meter	100 meter	200 meter	200 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece	1 Piece
MC4 Connector	10	10	15	15
Mounting System	Standards Pitched Roof ( Customized Optional)
PV Tools	1 Set

1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China

2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;

3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems

4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.

5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
