Firestone Industrial Bellow Air Spring W01-358-3400 2B7-540 Goodyear Air Lift Rubber Bag

Firestone Industrial Bellow Air Spring W01-358-3400 2B7-540 Goodyear Air Lift Rubber Bag

Product Description

The W01-358-3400 is a Firestone double convolution air spring. It is designed to provide years and thousands of miles of trouble-free service. This air spring is commonly used in industrial and commercial vehicles such as trucks and transporters.

GUOMAT: 2B3400

FIRESTONE BELLOW: 224

FIRESTONE: W01-358-3400

FIRESTONE: W01 358 3400

FIRESTONE: W013583400

FIRESTONE: WO1-358-3400

FIRESTONE: WO1 358 3400

FIRESTONE: WO13583400

GOODYEAR: 2B7-540

GOODYEAR: 2B 7-540

GOODYEAR: 2B7 540

GOODYEAR: 2B7540

GOODYEAR: 2B 7540

Replace American Carrier : 8003-009

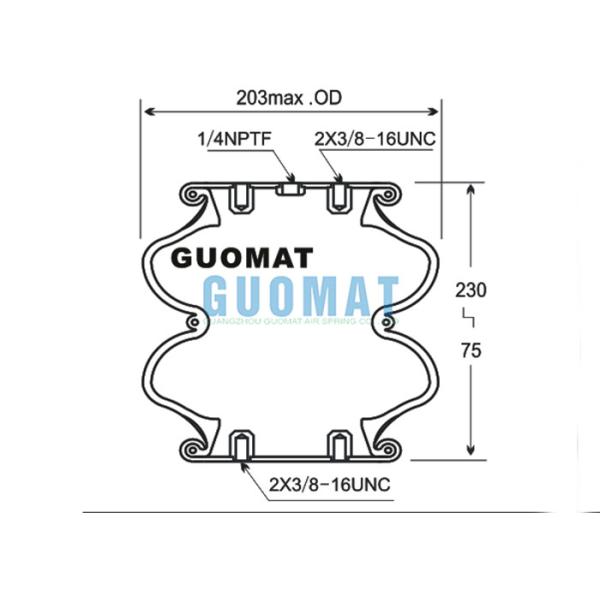

Technical Data: GUOMAT 2B3400

Technical Data: Firestone W01-358-3400

Cover plate diameter: 5.31in

Threaded hole: Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 Pistons

Center distance between threaded holes: 2.75in

Rubber bellow outer diameter: 7.25in

Min.height: 7.25in

Firestone Number with the Same Bellow Number

The Cpmponents of Air Spring
Blind Nut: A permanent part of the bead plate assembly providing and alternate mounting system to the stud.
Air Fitting Hole: A tapped hole usually 1/4''N.O.T.providing air entrance for the part.
Bead Plate: Permanedtly crimped onto the bellows at the factory allowing complete part leak testing prior to shipment.
Bellows: The heart of an Airide spring. Includes at least four plies, or layers,of material-an inner layer, two plies of cord-reinforced fabric, and an outer layer.
Girdle Hoop: A ring between the convolutions of the convoluted-type air spring.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
