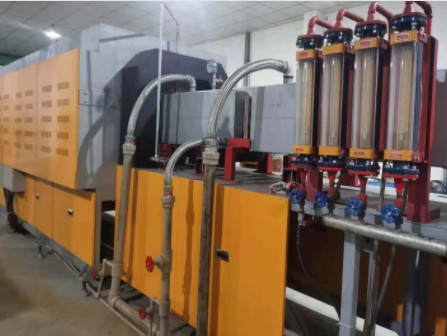

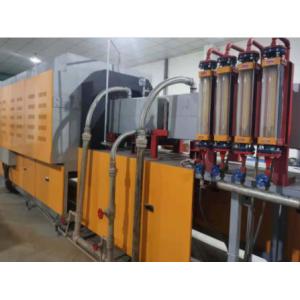

Surface Bright Treatment Electric Resistance Furnace With Adjustable Heating Zones

Stainless Steel Electric Resistance Furnace For Surface Bright Treatment

Stainless steel bright furnace is also called steel belt stainless steel bright continuous heat treatment furnace.

The stainless steel bright furnace can improve the surface quality and physical properties of stainless steel and has good corrosion resistance. The surface finish of the steel strip after bright annealing is also much higher than that after pickling. The production cost is low. Under normal circumstances, after continuous bright annealing of stainless steel, there is no need to carry out pickling, polishing, grinding and other processes. It can better control the size of finished stainless steel products.

1﹑Technical specification

1. Rated power: 130 KW

2. Heating pressure: 5 zones

3. Main body length of heating furnace: 4500mm

4. Rated operating temperature: 1100℃

5. Steel strip width: 300 mm

6. Steel belt running speed: 30-300mm/min (frequency control)

7. Temperature uniformity in the furnace: ±5℃, instrument temperature control accuracy: ±1℃

8. Effective cross-sectional area of furnace tube: width 330*80mm

9 Dimensions: ~16 meters long

2﹑Patent

With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

3﹑Customer Case in China

The first Aluminum-air battery graphene conductive film production line in china

The first All-solid-state battery pilot production line in china

The first Mobile phone fast charging graphene heat dissipation film carbonization production line

The first ITO target powder roller furnace continuous production line in china

The first Hydrogen fuel cell industrial production line in china

The first alumina continuous fiber production line in china

4﹑Foreign Customer

5﹑Package and shipment

We will well pack the goods based on the kinds of furnace and customer's requirement.

Jiangsu Qianjin Furnace Industry Equipment Co., Ltd. was established in July 1999. It is a national high-tech enterprise integrating the production and sales of electric heating kilns, gas kilns, advanced kiln furniture, kiln accessories and other industrial ceramics. Our company has a registered capital of 29 million yuan, fixed assets of 56 million yuan, more than 40 patents, and Our annual sales value is more than 150 million yuan. Our products are mainly used in the sintering of lithium battery new energy materials, rare earth materials, ceramic materials, magnetic materials, electronic devices, hard alloys, catalysts and other inorganic new materials. Our company has more than 150 employees, including 30 professional engineers.We have a functional material thermal equipment research and development center of Jiangsu province, and a pilot test base for lithium battery anode and cathode materials with an annual output of 150 tons. Our company has independent import and export trade rights, complete production equipment and supporting facilities, which can fully guarantee product's quality and delivery time. Various types of kilns and ceramic materials are exported to all over the world.
