| Categories | Loudspeaker Connector |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | SHANGWEN |
| Model Number: | SW4SMZ-M-2 |
| Packaging Details: | 10pcs/sample bag 25pcs/Blister box(23cm x 23cm) 500pcs/carton (51cm x 26cm x 34cm) |
| MOQ: | 10 |
| Price: | $3.20/pieces 2-99 pieces |
| Type: | Loudspeaker Connector |
| Gender: | Male |
| Industrial electronics: | accessories |
| Feature: | Waterproof |
| Company Info. |
| Shenzhen Shangwen Electronic Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

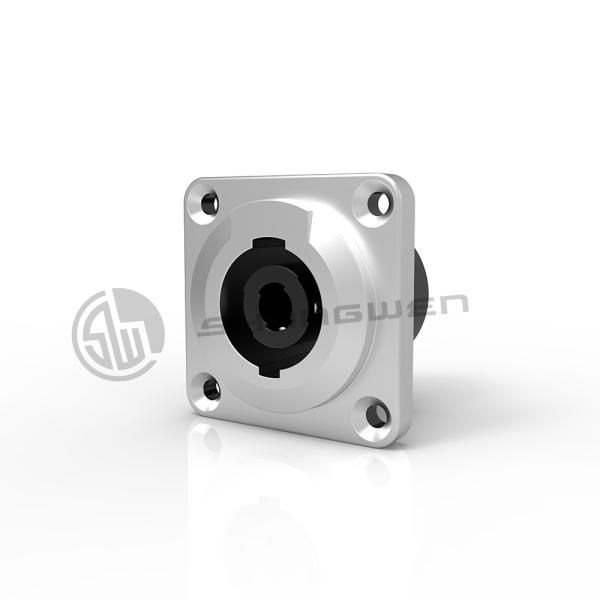

China Manufacture Square Shape Four Thru Holes Loudspeaker Connector 4 Pins Male Connector



Connection Type | Speaker |
Gender | Male |
Contact resistance | <2mΩ |
Dielectric strength | 2.8kVac |
Insulation resistance | > 1.0GΩ (initial) |
Rated current per contact | 30A |
Rated voltage | 250 V ac |
Termination | ¼ flat tabs |
Service life | >5000 mating cycles |
Mounting direction | Rear/Front mounting |
Chassis shape | Square G-size flange |
Locking device | Latch lock |
Layout | four thru holes |
Contacts | Cu alloy |
Contact plating | Ag |
Insert | Polyamide (PA 66 ) |
Shell | Zinc diecast,Nickel plating |
Flame-retardant grade | UL 94 V-0 |
Protection class | IP54 |
Temperature range | -30℃to +80℃ |











|
