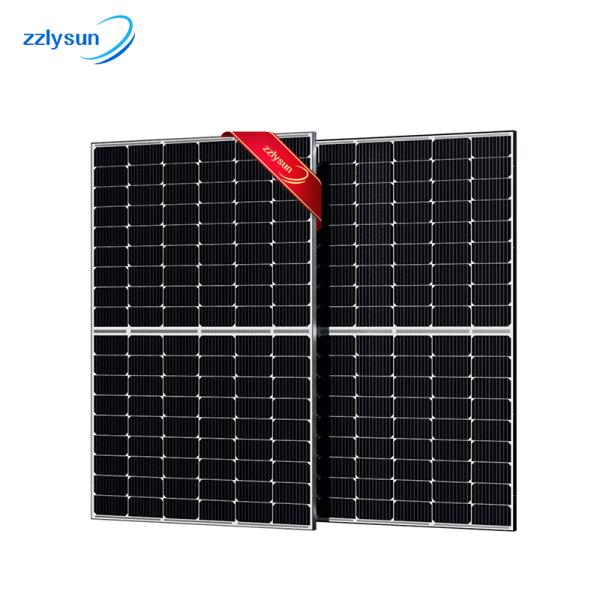

| Categories | Renewable Energy Solar Panel |
|---|---|
| Warranty: | 10YEARS |
| Free installation service: | NO |
| Place of Origin: | Henan, China |
| Brand Name: | zzlysun |
| Model Number: | LY 540~550W |
| Application: | Commercial |
| Solar Panel Type: | Monocrystalline Silicon |
| Battery Type: | Lead-Acid, Lithium Ion |
| Controller Type: | MPPT |
| Mounting Type: | Ground Mounting |
| Load Power (W): | 50kw, 30KW, 8KW, 6KW, 20KW, 5KW, 10KW, 100kw |
| Output Voltage (V): | 1000v |
| Output Frequency: | 50Hz/60Hz |
| Work Time (h): | 12 |
| Certificate: | TUV/ISO/IEC/BIS |
| Pre-sales project design: | Y |
| Max. system voltage: | 1000V/1500V DC |
| Series fuse rating: | 25A |
| Tempreture range: | -40 to +85°C |
| Container type: | 40HQ |
| Monocrystalline solar cells: | 182x91mm |
| Cells: | 144pcs |
| Encapsulation: | EVA |
| Front Glass: | 3.2mm high tempered glass |
| Weight: | 29.1KG |
| Solar panel: | 2279x1134x35mm |
| Packaging Details: | Plywood Case |
| Port: | Shanghai/Ningbo/Qingdao/Guangzhou |
| Supply Ability: | 1000 Pallet/Pallets per Day |
| Price: | $0.21/pallets 1-19 pallets |
| Company Info. |
| Zhengzhou LingYang New Energy Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |



ITEM | MECHANICAL CHARACTERISTICS |
Dimensions | 2279x1134x35mm(LxWx H) |
Weight | 29.1kg |
Front Glass | 3.2mm high transmisson tempered glass |
Encapsulation | EVA |
Cells | 144pcs 182x91m Monocrystalline solar cells |
Frame | Anodized Aluminium Alloy (silver or black) |
Junction Box | Rated current:25A,IP68,TUV |
Connector | Compatible with MC4 |
Backsheet | Composite film |
Cable | Length Negative 400mm/Positive 300mm |

ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS(STC) | ||||||||||
Module Power | 540W | 545W | 550W | 555W | 560W | |||||
Open Circuit Voltage-Voc[V] | 49.60 | 49.75 | 49.90 | 50.02 | 50.21 | |||||
Short Circuit Current-lsc[A] | 13.86 | 13.93 | 14.00 | 14.07 | 14.13 | |||||
Max Power Voltage-Vmp[V] | 41.64 | 41.80 | 41.96 | 42.11 | 42.27 | |||||
Max Power Current-lmp[A] | 12.97 | 13.04 | 13.11 | 13.18 | 13.25 | |||||
Module Efficiency-p[%] | 20.90 | 21.10 | 21.30 | 21.50 | 21.67 | |||||





|
