Centrifugal Slurry Pump 12 / 10 ST - 10 Inch With Rubber Liner And Metal Impeller

Categories	Heavy Duty Slurry Pump
Brand Name:	CNSME
Model Number:	12/10-ST(SH/250ST)
Certification:	ISO certificate /CE certificate
Place of Origin:	CHINA
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T, Western Union,
Supply Ability:	30 Sets per Month
Delivery Time:	7 Working Days
Packaging Details:	Plywood Crate
Flowrate:	720-1620m3/hr
Head:	7-45m
Speed:	300-650rpm
Efficiency:	max. 80%
Impeller:	5-Vane Closed Type
Power:	max. 120Kw
Application:	Sewage,mining,Transfer slurry,dredging
Warranty:	1 Year Warranty(except Wearing Parts)
Voltage:	220V,380V,440V
Material:	Cr27,High chromium alloy,Steel,Rubber 55,cast iron
Color:	Blue,Yellow,Red,black,Gray etc
Diameter of Impeller:	762

Contact Now

Add to Cart

Company Info.

Shijiazhuang Minerals Equipment Co. Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

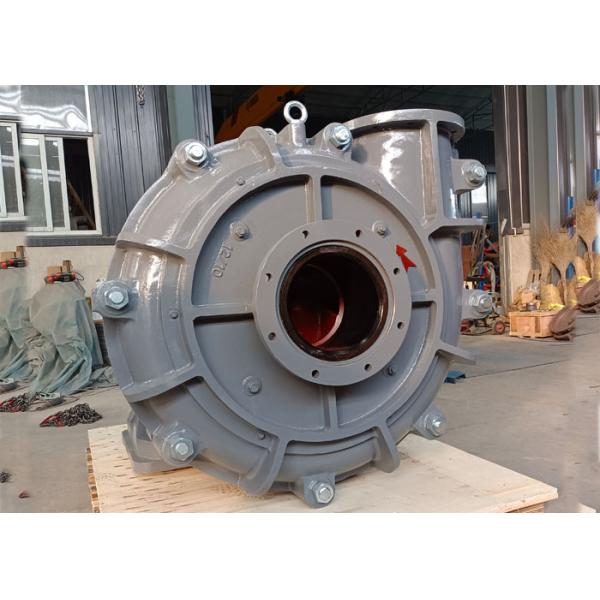

Centrifugal Slurry Pump 12 / 10 ST - 10 Inch With Rubber Liner And Metal Impeller

1.Product Introduction:

SH/250ST (12/10ST- )Slurry Pump is horizontal centrifugal slurry pumps for handling of highly abrasive, high-density slurries and support multistage serial installation. They feature frame and cover plates made out of grey cast iron or ductile cast iron (based on the pressure requirements) with replaceable wear-resistant rubber liners, rubber impellers.

2. Performance Parameter:

Specifications
Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller Vane No.
Model	Max. Power (kw)	Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Impeller Vane No.
1.5/1B-A H	15	M	M	12.6~28.8	6~68	1200~3800	40	2~4	5
1.5/1B-A H	15	RU	RU	10.8~25.2	7~52	1400~3400	35	2~4	3
2/1.5B-A H	15	M	M	32.4~72	6~58	1200~3200	45	3.5~8	5
2/1.5B-A H	15	RU	RU	25.2~54	5.5~41	1000~2600	50	2.5~5	5
3/2C-A H	30	M	M	39.6~86.4	12~64	1300~2700	55	4~6	5
3/2C-A H	30	RU	RU	36~75.6	13~39	1300~2100	60	2~4	5
4/3C-A H	30	M	M	86.4~198	9~52	1000~2200	71	4~6	5
4/3C-A H	30	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
4/3D-A H	60	M	M	97.2~198	9~53	1000~2200	71	4~6	5
4/3D-A H	60	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
6/4D-A H	60	M	M	162~360	12~56	800~1550	65	5~8	5
6/4D-A H	60	RU	RU	144~324	12~45	800~1350	65	3~5	5
6/4E-A H	120	M	M	162~360	12~56	800~1550	65	5~8	5
6/4E-A H	120	RU	RU	144~324	12~45	800~1350	65	3~5	5
8/6E-A H	120	M	M	360~828	10~61	500~1140	72	2~9	5
8/6E-A H	120	RU	RU	324~720	7~49	400~1000	65	5~10	5
8/6R-A H	300	M	M	360~828	10~61	500~1140	72	2~9	5
8/6R-A H	300	RU	RU	324~720	7~49	400~1000	65	5~10	5
10/8-A H	560	M	M	612~1368	11~61	400~850	71	4~10	5
10/8-A H	560	RU	RU	540~1188	12~50	400~750	75	4~12	5
10/8E-M	120	M	M	666~1440	14~60	600~1100	73	4~10	5
10/8E-M	120	RU	RU	540~1188	10~42	500~900	79	5~9	5
12/10-A H (SH/250ST)	560	M	M	936~1980	7~68	300~800	82	6	5
12/10-A H (SH/250ST)	560	RU	RU	720~1620	7~45	300~650	80	2.5~7.5	5
14/12-A H	560	M	M	1260~2772	13~63	300~600	77	3~10	5
14/12-A H	560	RU	RU	1152~2520	13~44	300~500	79	3~8	5
16/14-A H	560	M	M	1368~3060	11~63	250~550	79	4~10	5
16/14-A H	1200	M	M	1368~3060	11~63	250~550	79	4~10	5
18/16-A H	1200	M	M	2160~5040	8~66	200~500	80	4.5~9	5
20/18-A H	1200	M	M	2520~5400	13~57	200~400	85	5~10	5

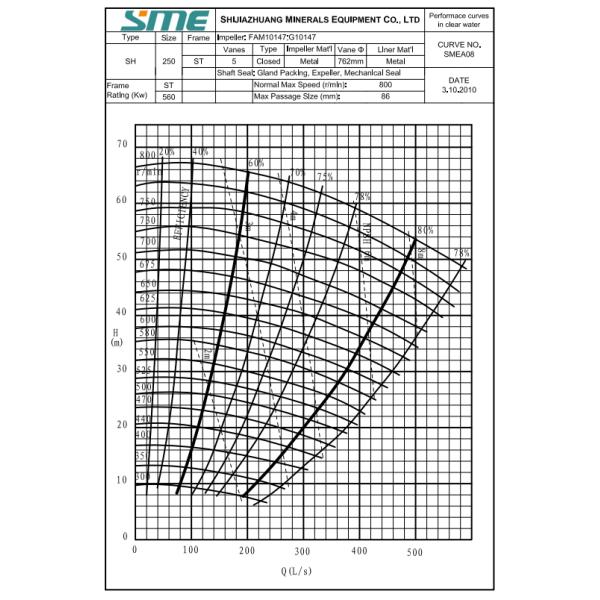

3.Performance Curve of SH/250ST(12/10ST-)

4. SH250ST (12/10ST-) Outline Dimension Drawing

5.On-Site Application:

They are commonly used in metallurgical, mining, coal, power, construction material and similar industries.

Product Tags:

Metal Impeller Centrifugal Slurry Pump

Rubber Liner Centrifugal Slurry Pump

10 Inch Horizontal Slurry Pump
