Multiple Heating Zones Independent Temperature Control PLC Conveyor Belt Vulcanizing Machine Rubber Vulcanizing Press

Multiple Heating Zones Independent Temperature Control PLC Conveyor Belt Vulcanizing Machine Rubber Vulcanizing Press

Multiple Heating Zones Independent Temperature Control PLC Conveyor Belt Vulcanizing Machine Rubber Vulcanizing Press
Multiple Heating Zones Independent Temperature Control PLC Conveyor Belt Vulcanizing Machine Rubber Vulcanizing Press
Categories Rubber Vulcanizing Press Machine
Brand Name: SFC
Model Number: XLB-1400*6000
Certification: CE、ISO、SGS
Place of Origin: China
MOQ: 1
Price: US$10.000.00-80,000.00/set
Payment Terms: T/T
Supply Ability: 500 sets/year
Delivery Time: 45 days
Packaging Details: Safety wood or plywood crates packaging.
Control System: PLC
Cylinder Stroke: 400
Heating Method: Electric/Steam/Oil
Material: Carbon Steel/Stainless Steel
Operation Mode: Automatic
Pressure Range: 16.8(mpa)
Product Name: Coveyor belt Vulcanizing Machine
Size: 1400*6000*75
Voltage: 380V
Warranty: 1 Year
Weight: Customized
Contact Now
Company Info.
Qingdao Shun Cheong Rubber machinery Manufacturing Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Multiple Heating Zones Independent Temperature Control PLC Conveyor Belt Vulcanizing Machine Rubber Vulcanizing Press

Multiple Heating Zones Independent Temperature Control Conveyor Belt Rubber Vulcanizing Press Customization
Ayla
Business Manager
sales-6@sfcjx.com
Advanced Control Systems
Modern vulcanizing presses feature advanced control systems, including programmable logic controllers (PLCs) and touch-screen interfaces. These systems allow operators to set and monitor various process parameters such as temperature, pressure, and curing time, ensuring precise control and repeatability.
Customization Options
We offer comprehensive customization options to meet specific conveyor belt requirements. This includes tailoring the size and configuration of the press to accommodate different belt widths and thicknesses. Additional accessories like cooling systems, water bags, and pressure bags can be provided to enhance the efficiency and effectiveness of the vulcanization process.

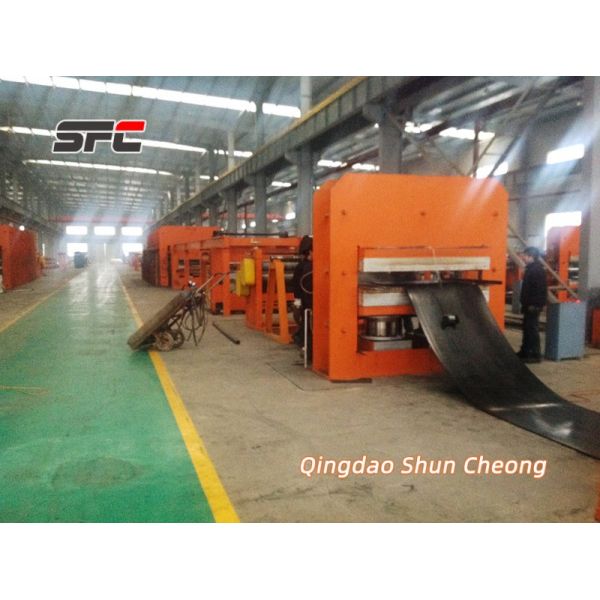

Conveyor belt vulcanizing press overview Vulcanizing press control panel Press heating plate detail Vulcanizing machine frame structure Press hydraulic system Conveyor belt vulcanization process Press operational view Machine component close-up Vulcanizing press side view Press manufacturing detail Equipment installation example Press maintenance access Complete vulcanizing system
Product Applications
The conveyor belt vulcanizing unit is suitable for vulcanizing ordinary rubber conveyor belts, nylon conveyor belts, PVG conveyor belts, wire rope conveyor belts, and other fabric core parallel tapes. The main machine features a frame structure with hot plates and plungers made of high-quality materials. These components are precisely processed to resist wear and corrosion, are easy to maintain, provide stable working pressure, and are simple to adjust.
Using PLC control, the vulcanization process can achieve multi-program automatic control and automatically detect and adjust hot plate temperature. This improves the control level of the conveyor belt vulcanization unit, reduces labor intensity, and enhances production efficiency.
Technical Specifications
Product ModelDLB-1400x6000DLB-1400x8000DLB-14000x10000DLB-1600x6000
Heating plate specification L*W*H (mm)1400*6000*751400*8000*801400*10000*901600*1600*80
Unit pressure (mpa)3333
Nominal pressure (kn)2520033600420028800
Operating pressure (mpa)16.819.12119.1
Oil cylinder (mm)400400400400
Oil cylinder (qty)12141612
Max stroke (mm)400400400500
Layer numbers1~21~21~21~2
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, West Coast New District, Qingdao, China. We are a specialized producer of rubber machinery and a high-tech backbone enterprise. The company has passed ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range
Our products mainly cover the following industries: tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbished manufacturing, and waste tire recycling.
Main equipment includes: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.
Global Reach
Our products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, Kazakhstan, and more than 50 countries and regions. We have earned praise and long-term cooperation from domestic and foreign customers while continuously attracting new customers.
Quality Commitment
Product quality and after-sales service are fundamental to Qingdao Shun Cheong Machinery Co., Ltd's survival and are top priorities in our management. Our commitment to all customers includes:
  • Every part passes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Complete technical support for all products
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Immediate technical support and on-site repair services when needed
To better serve our customers, we provide access to conveyor belt, waste tire recycling line, and tire production sites for customer visits and consultation.
Quality Certification Manufacturing Facility Production Process
