| Categories | Flywheel Assembly |
|---|---|

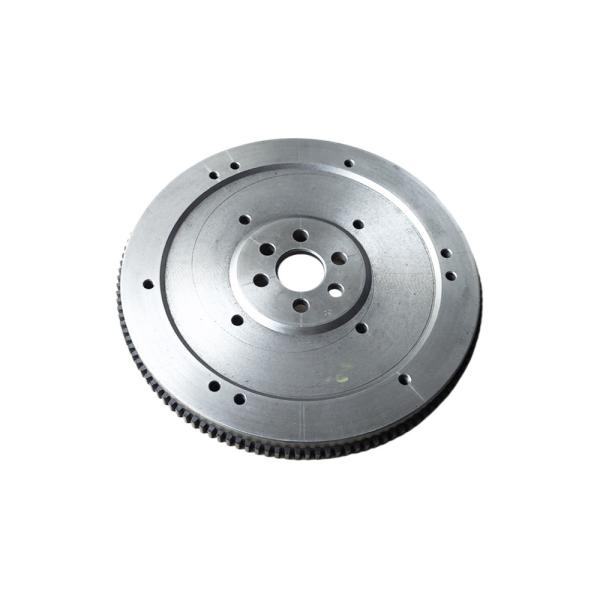

| Model Number: | Lada/21080/128 teeth cast iron flywheel/Russian model flywheel |
| Certifiion: | IATF 16949 |
| Place of Origin: | China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Standard Packaging |
| Payment Terms: | L/C,T/T,etc. |
| OE No.: | 21080-1005115 |
| Model: | Lada/21080/128 teeth cast iron flywheel/Russian model flywheel |
| Height: | 22.6 |
| Material: | Cast iron |
| Teeth: | 128 |
| Outer Diameter: | 278 |
| Company Info. |
| Jinhuan Auto Parts Manufacturing Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Description
Please click to view Flywheel alog!.pdf
1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.
2. Flywheel is a critical component in a car's drivetrain system. Its primary function is to smooth out the power delivery from the engine and provide rotational inertia for the engine to keep it running smoothly. The design of the flywheel can have a significant impact on the car's performance, and it is important to maintain and replace the flywheel when necessary to ensure the car operates safely and efficiently.
3. The flywheel can be modified to improve the car's performance. A lighter flywheel can provide a more responsive driving experience, while a heavier flywheel can provide more stability and smoothness in the power delivery.
4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.
Principle
When starting a car, the gear on the starter motor meshes with the ring gear on the starter flywheel and drives the flywheel to rotate. Since the flywheel is installed on the engine shaft, it drives the engine to rotate and start the car.
Details
| Teeth | 128 |
| For Coupling Size(mm) | 175 |
| Clutch Holes&Size (mm) | 6-Φ10.5 |
| Outer Diameter | 278 |
| Inner Diameter(mm) | 35 |
| Height | 22.6 |
| Pitch Cride (mm) | 62 |
| Clutch Pitch Cride(mm) | 224 |
Crafts
Machining
Drilling Injection Holes
Dynamic Balance
Mark
Package
Inspection
Tension Test
Metallurgical Micro-Test
Hardness Test
3D Measuring
|
