| Categories | Bearing Steel Tube |
|---|---|
| Brand Name: | New-Era |
| Model Number: | ISO683-17/ASTM A295/A295M |
| Certification: | ISO9001 ISO14001 |
| Place of Origin: | China |
| MOQ: | 5 tons |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 3000 tons per month |
| Delivery Time: | 45days |
| Packaging Details: | packing in standard seaworthy packages. |
| Application: | Bearing |
| Keyword: | 100Cr6,GCr15,52100 bearing steel |
| Materials: | 100Cr6,GCr15,52100 |
| Type: | Cold Drawn |
| Size: | OD:10-260mm;WT: 2-30mm;Length:1-12000mm |
| Shape: | Round |

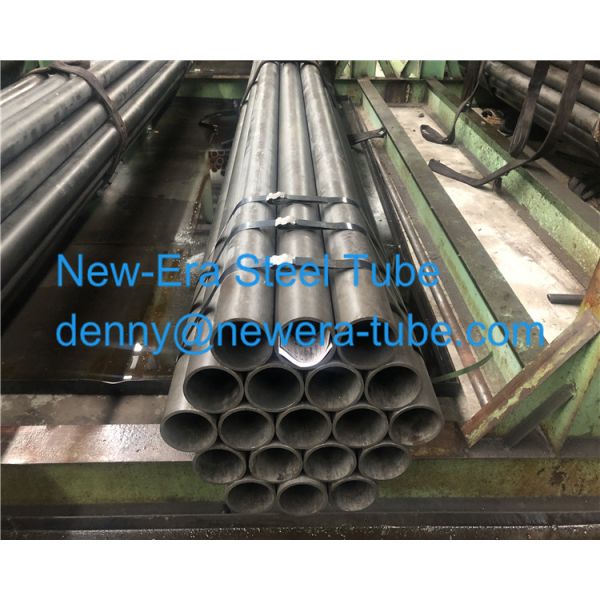

| Product Name: | ISO683-17 Cold Drawn Seamless Steel Tube Bearing Steel Pipe GCr15 100Cr6 |
| Tube: | Bearing Steel Tube |
| Company Info. |
| NEW-ERA STEEL TUBE TECHNOLOGY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
| Chinese | American | German | Japanese |
| GB | AISI | DIN | JIS |
| GCr15 | SAE52100 | 100Cr6 | SUJ2 |
3. Chemical Composition
| Grades | C | Si | Mn | P | S | Cr | Mo | Cu | Ni |
| GCr15/52100 | 0.95-1.05 | 0.15-0.35 | 0.2-0.4 | ≤0.027 | ≤0.02 | 1.3-1.65 | ≤0.1 | ≤0.25 | ≤0.3 |
| 100Cr6 | 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | ≤0.025 | ≤0.025 | 1.4-1.65 | ≤0.08 | ≤0.25 | ≤0.3 |
4. Heat Treatment
| Quenching | Tempering | ||||
| Heating Temperature/ºC | Cooling | Hardness/HRC | Heating Temperature/ºC | Cooling | Hardness/HRC |
| 830-850 | Oil | 62-65 | 150-190 | Air | 58-62 |
5. Mechanical Properties of ASTM A295 52100 Bearing Steel
| Properties | Metric | Imperial |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Hardness, Brinell | - | - |
| Hardness, Knoop (converted from Rockwell C hardness) | 875 | 875 |
| Hardness, Rockwell C (quenched in oil from 150°C tempered) | 62 | 62 |
| Hardness, Rockwell C (quenched in water from 150°C tempered) | 64 | 64 |
| Hardness, Rockwell C (quenched in oil) | 64 | 64 |
| Hardness, Rockwell C (quenched in water) | 66 | 66 |
| Hardness, Vickers (converted from Rockwell C hardness) | 848 | 848 |
| Machinability (spheroidized annealed and cold drawn. Based on 100 machinability for AISI 1212 steel) | 40 | 40 |
Production Steel BearingTube 100Cr6/GCr15/52100 :
Tags:Bearing Steel 52100,Bearing tubes 100Cr6,ASTM A295/A295M bearing steel tubes, bearing steel tube
|
