| Categories | Self Adhesive Insulation Pins |
|---|---|
| Brand Name: | HUIHAO KASITE |
| Model Number: | HOOK-22 |
| Certification: | ISO9001-2015 |
| Place of Origin: | China |
| MOQ: | 10000 pcs Insulation Pad Lacing Hook Fastener |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 pcs Insulation Pad Lacing Hook Fastener per 30 days |
| Delivery Time: | 7 WORK DAYS |
| Packaging Details: | Standard Export Carton / Wooden Pallet of Insulation Pad Lacing Hook Fastener |
| Name: | Insulation Pad Lacing Hook Fastener |
| Material Thickness: | 1mm |
| Diameter: | 22 mm |
| Material: | Stainless steel 304 |
| Hook Type: | double holes or single hole |
| Application: | insulation pad |
| Factory: | Huihao hardware |
| Custom: | Patterns, size and colors can be customized |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

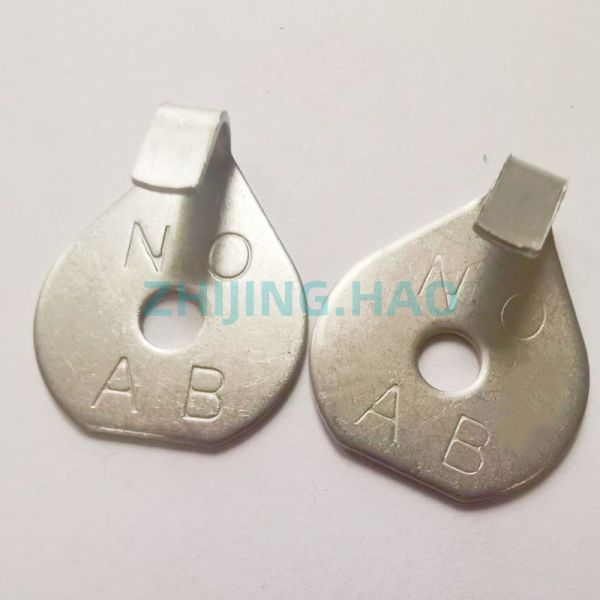

Insulation pad lacing hook is a nails inconsisting of a pin and tabbed or hooked washer ,mainly used in the fabrication of lacing blankets or removable blankets/pads ,the pins is pressed through the insulation material , the end are locked with a self locking washer ,the two sides of the blankets can be "laced" together by the hooks with tie wire
Product name:removable blankets lacing anchors hooks&washers, insulation pad lacing hook
Materials: Stainless Steel 304/316/316L
Head size :7/8" for the round base
Hook size :5x11mm
Pin diameter:14ga (2.0mm) ,12ga (2.7mm)
Pin length:1-1/2" ,2-1/2" is in common , other size to be request
Other accessories :quilting pins ,self locking washer .double hole lacing anchor ,single hole lacing anchor , lacing washer ,D rings ,O rings
specification of insulation pad lacing hook fasteners | |||
material | materil thickness | size | hole size |
stainless steel 304/316 | 1mm | 22mm | 5mm |
type | hook length | hook width | custom |
one hole type, two holes type hook type washer type | 11mm | 5mm | we can be according to your requirements to design the types |
According to the U.S. Department of Energy, removable and reusable insulation pads can save up to 5% on your energy bill. Our extensive removable insulation system includes all the components you need for custom insulation pad fabrication. Select from a wide range of extreme temperature products, including: | Silicone coated fabrics for water, oil and heat resistance |
Lacing Washer can also be used with a Lacing Ring and a second L100 lacing washer, which are fastened to the insulation blanket with a tie wire. One advantage with the lacing system is the positive detention of the lacing wire. The insulation blanket can be loosened for access or repositioning, without having to worry about the lacing wire falling away from the hooks. It is also advantageous in maintaining the position of the lacing wire when insulating complex shapes. All L100 Lacing Washers are stamped "NO AB" to indicate no asbestos, at no additional cost. | |
Q1. How about the Delivery time?
A. About 15-20 days.
Q2. What kind of payments does jenor support?
A. T/T,L/C ,D/Pare accepted or other methods negotiable.
Q3. Can you produce according to customers' design?
A. Sure, we are professional manufacturer, OEM and ODM are both
welcome.
We'll offer you the quotation as soon as possible once receive your
inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also
the size can be changed as your requirement.
1.Perforated base insulation hanger pins
2.Insulation Self-stick pins
3.Insulation CD weld pins
4.Insulation bimetallic weld pins
5.Cup head weld pins
6.Lacing anchors (quilting pins ,lacing anchor ,lacing washer ,lacing rings)
7.Solar panel mesh clips
8.Self-locking washer and dome cap washer
|
