| Categories | Self Adhesive Insulation Pins |
|---|---|
| Brand Name: | HUIHAO KASITE |
| Model Number: | PB-SS |
| Certification: | ISO9001-2015 |
| Place of Origin: | China |
| MOQ: | 5000 sets Perforated Base Spindle Insulation Anchors |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 400000 sedts Perforated Base Spindle Insulation Anchors per 30 days |
| Delivery Time: | 10 work days |
| Packaging Details: | 250 sets or 500 sets or 1000 sets per carton |
| Name: | Spindle Insulation Anchors |
| Spindle Length: | 15mm -280 mm |
| Spindle thickness: | 2.7mm and 3mm in common |
| Base thickness: | 0.5mm |
| Base size: | 24mm, 40mm, 50mm in common |
| Spindle material: | aluminum, steel, stainless steel |
| Base material: | steel, stainless steel |
| Finished: | Zinc coated, copper coated |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

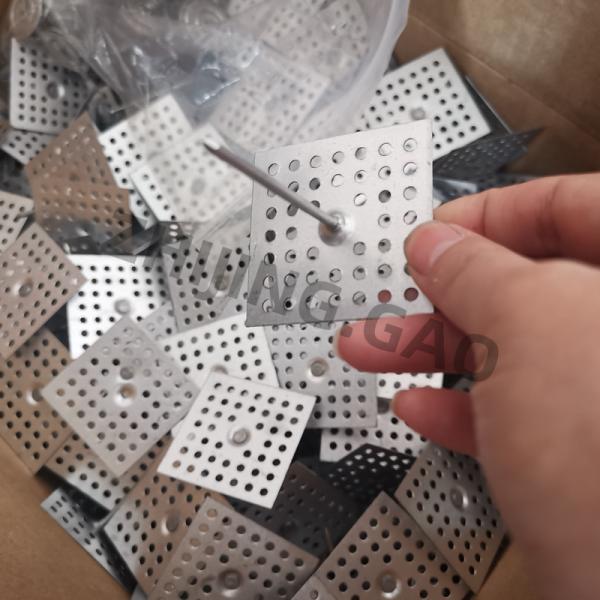

Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling
Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm
Surface treatment: zinc coated or copper coated for mild steel material
| perforated base rock wool insulation pins | ||
| pin diameter | Perforated base | pin length |
| 12 ga (.106) | 40mm /50mm Square | 1 |
| 12 ga (.106) | 40mm /50mmSquare | 1-5/8 |
| 12 ga (.106) | 40mm /50mm Square | 2-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 3-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 4-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 5-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 6-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 8" |
| 12 ga (.106) | 40mm /50mm Square | 8-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 9-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 10-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 12" |
1. Wipe surface clean
Perforated insulation hangers must be applied to a clean, dry, non-painted surface.
2. Apply adhesive to the bottom of the perforated insulation hangers
Spread adhesive onto the perforated base with a putty knife
3. immediately stick the insulation hangers in place.
Press the hangers into position with a twisting motion to assure an even spread of adhesive.
The adhesive should protrude through the performation & beyond the edges of base
4. Install Insulation
Note: allow adhesive to dry thoroughly before hanging insulation,
usually 24-72 hours.
5. Secure with washers
Secure insulation in place with a self locking washer and then bend over or clip off the pin
PIN LENGTH | CARTON SIZE | QTY/CARTON |
38MM | 41CMX28CMX17CM | 1000PCS |
50MM-65MM | 41CMX28CMX17CM | 500PCS |
70MM-84MM | 30CMX28CMX29CM | 500PCS |
90MM-120MM | 30CMX30CMX30CM | 500PCS |
130MM-160MM | 30CMX30CMX35CM | 500PCS |
170MM-203MM | 30CMX30CMX28CM | 250PCS |
OTHERS | SUPPORT CUSTOM | |
| ||
1.We choose the best quality materials for making insulation
fasteners
2.We do copper plating, zinc coated and phosphating pretreatment
for the raw material using
drawing machine.
3.We purchase the multi-station cold forging machine to ensure the
better mechanical property
of shear connector to match the standard (BS EN ISO13918:2008, AWS
D1.1, etc.),
or as per customer's special requirement.
4.We use the automatic riveting machine to install .
5.After rust prevention, HUIHAO insulation fasteners can suitable
for long time ship on the sea.
6.Short delivery time because of our reasonable production flow
management
|
